Description

Price

1

BOW GUNWALE COMP.

EW2-U2501-00-00

Unavailable

2

SCREW, PAN HEAD(6B0)

97885-06025-00

Unavailable

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

4

WASHER, SPRING

92995-06100-00

Unavailable

5

NUT (J17)

95380-06800-00

$8.49

6

GUNWALE, SIDE (LH)

EW2-U2512-10-00

Unavailable

7

SCREW (EW2)

90149-05962-00

$3.02

8

GUNWALE, SIDE ( (RH))

EW2-U2512-20-00

Unavailable

9

ROPE HOLE

EU0-61651-30-00

Unavailable

10

NUT

EU0-61652-00-00

Unavailable

11

MAT, LOWER

EW2-63511-01-00

Unavailable

12

MAT, SIDE LH

EW2-63512-10-00

Unavailable

13

MAT, SIDE RH

EW2-63512-20-00

Unavailable

14

STERN GUNWALE COMP.

EW2-U2503-00-00

Unavailable

15

COVER, GUNWALE (LH)

EW2-62523-10-00

Unavailable

16

COVER, GUNWALE (RH)

EW2-62523-20-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

18

SCREW

90149-06965-00

Unavailable

19

NUT (J17)

95380-06800-00

$8.49

20

SCREW

90149-05964-00

Unavailable

21

. WASHER, PLAIN

92990-05200-00

Unavailable

22

.. NUT

95380-05800-00

Unavailable

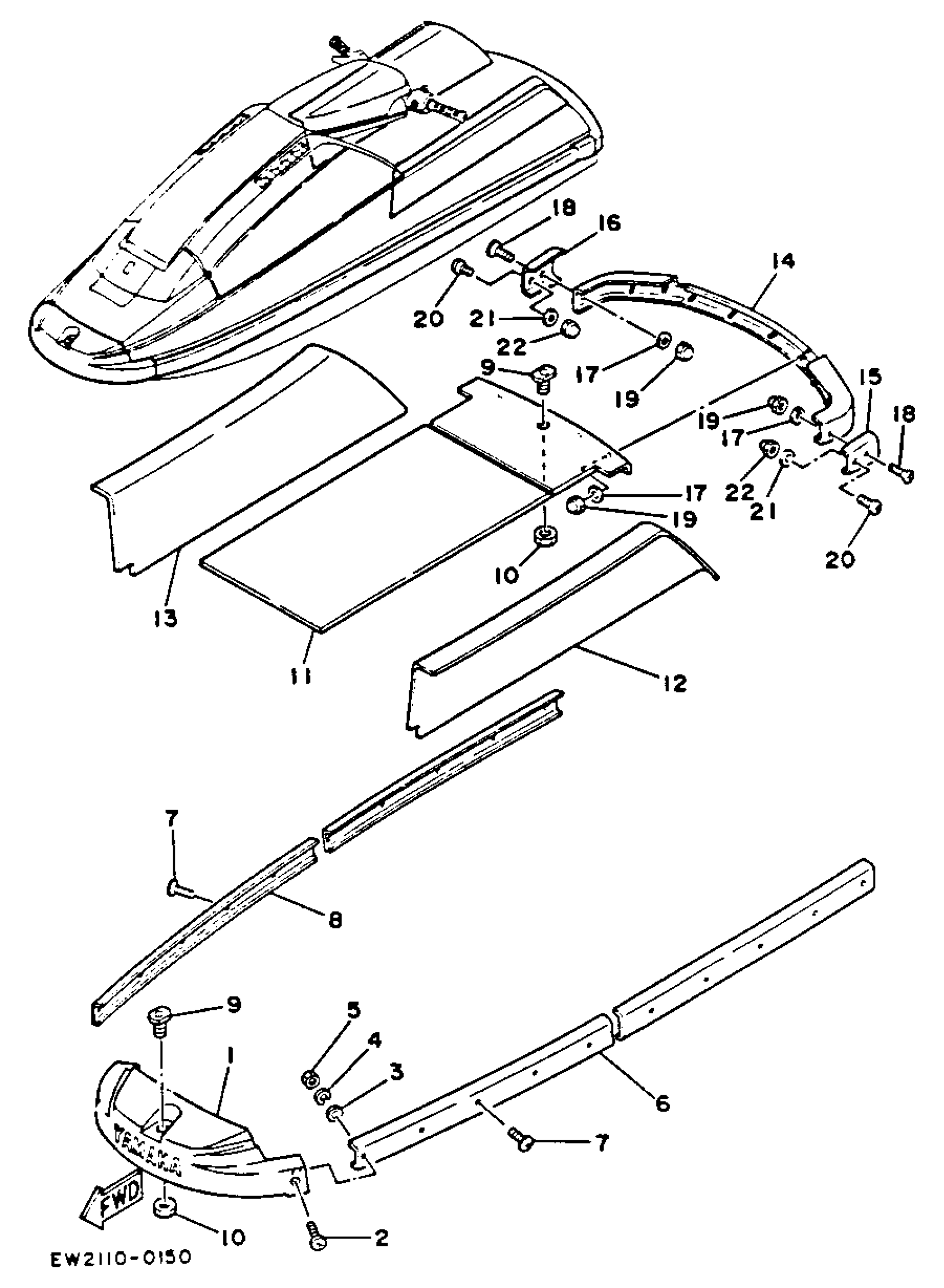

Yamaha SJ650R (SUPER JET) 1993 BOW GUNWALE - MAT Diagram

BOW GUNWALE COMP.

SCREW, PAN HEAD(6B0)

YBS66-6 WASHER, PLAIN

WASHER, SPRING

NUT (J17)

GUNWALE, SIDE (LH)

SCREW (EW2)

GUNWALE, SIDE ( (RH))

ROPE HOLE

NUT

MAT, LOWER

MAT, SIDE LH

MAT, SIDE RH

STERN GUNWALE COMP.

COVER, GUNWALE (LH)

COVER, GUNWALE (RH)

YBS66-6 WASHER, PLAIN

SCREW

NUT (J17)

SCREW

. WASHER, PLAIN

.. NUT
