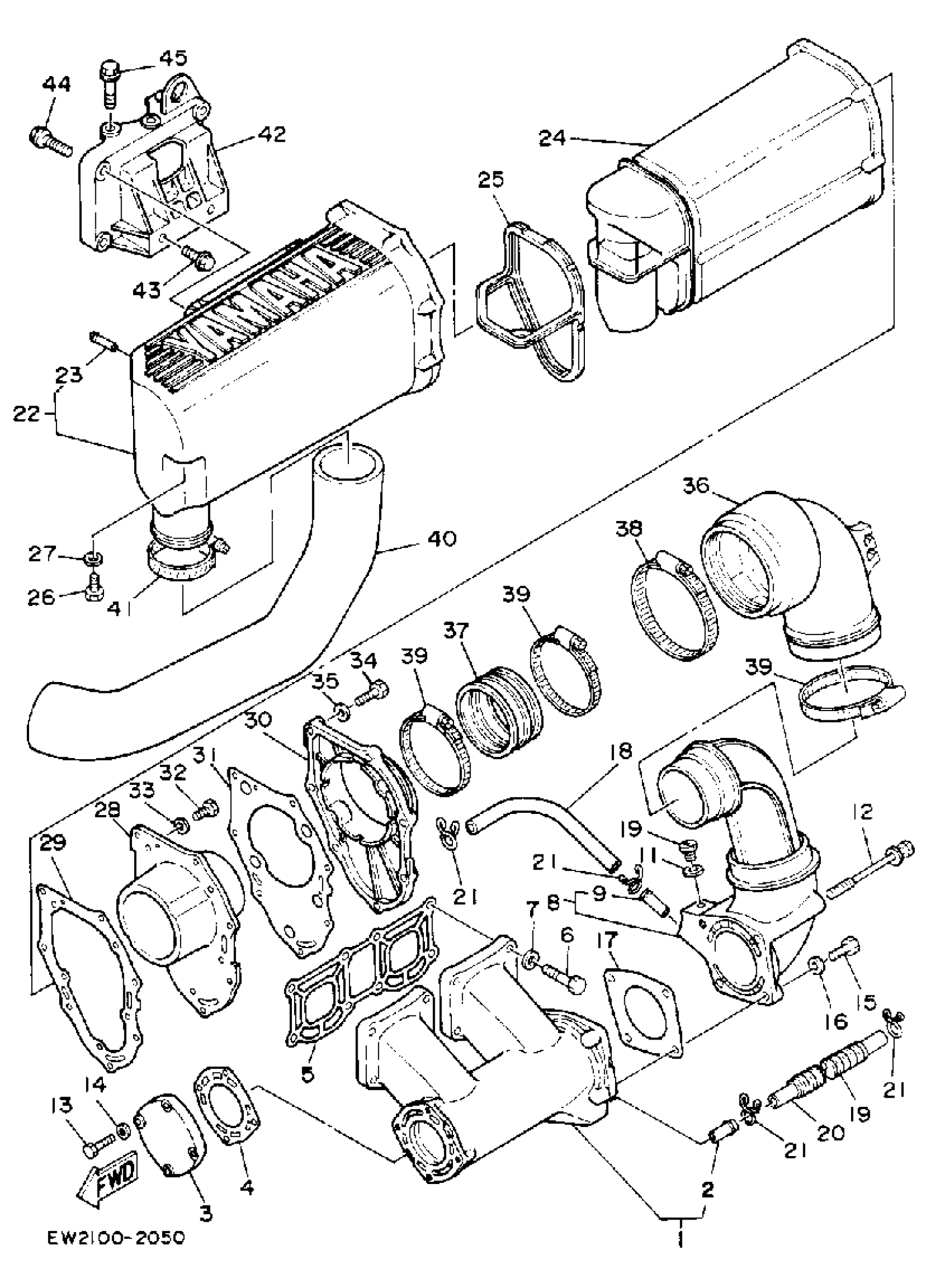

Yamaha SJ650Q (SUPER JET) 1992 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

6R7-14711-01-9M

$492.63

2

. NIPPLE

6K8-51129-00-00

$9.87

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$55.87

4

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$10.68

5

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$12.49

6

BOLT

97013-08035-00

$4.48

7

.. WASHER, PLATE

92990-08600-00

$2.26

8

RING,JOINT

99999-02326-00

Unavailable

9

. NIPPLE

6K8-51129-00-00

$9.87

10

PLUG, STRAIGHT SCREW

90340-08002-00

$10.90

11

GASKET

90430-08003-00

$1.29

12

BOLT, WITH WASHER

90119-08M38-00

Unavailable

13

BOLT

90101-06M27-00

$2.78

14

WASHER, PLAIN (646)

92990-06600-00

$2.38

15

BOLT (682)

97013-08025-00

$4.51

16

.. WASHER, PLATE

92990-08600-00

$2.26

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.96

18

HOSE (L380)

90445-14M25-00

Unavailable

19

HOSE (L230)

90446-20M24-00

Unavailable

20

HOSE

90445-14M03-00

Unavailable

21

CLIP(6M6)

90467-13M13-00

$6.62

22

MUFFLER 2

6R7-14721-00-8S

$352.93

23

. PIPE, JOINT

6R7-14485-00-00

$11.75

24

SILENCER, EXHAUST

6R7-14753-00-8S

$197.04

25

SEAL, RUBBER 1

6R7-15761-00-00

$26.46

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$2.38

28

DIFFUSER

6R7-14785-00-8S

$101.46

29

. GASKET, SILENCER

6R7-14755-A0-00

$18.37

30

OUTER COVER, EXHAUST

6R7-41113-00-8S

$94.04

31

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$19.23

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

$2.38

34

BOLT(JF7)

97080-06030-00

Unavailable

35

WASHER, PLAIN (646)

92990-06600-00

$2.38

36

JOINT, EXHAUST 1

61L-14615-00-00

$85.92

37

JOINT, EXHAUST 2

61L-14625-00-00

$65.83

38

CLAMP, HOSE

90460-90M11-00

$55.87

39

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

40

PIPE, OUTLET

EW2-E4752-00-00

Unavailable

41

CLAMP, HOSE(6R7)

90460-64M15-00

Unavailable

42

STAY, MUFFLER 1

6M6-14771-00-00

$95.57

43

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

44

BOLT, WASHER BASED

90105-10M45-00

$5.29

45

BOLT, WITH WASHER

90119-10M72-00

$5.69
