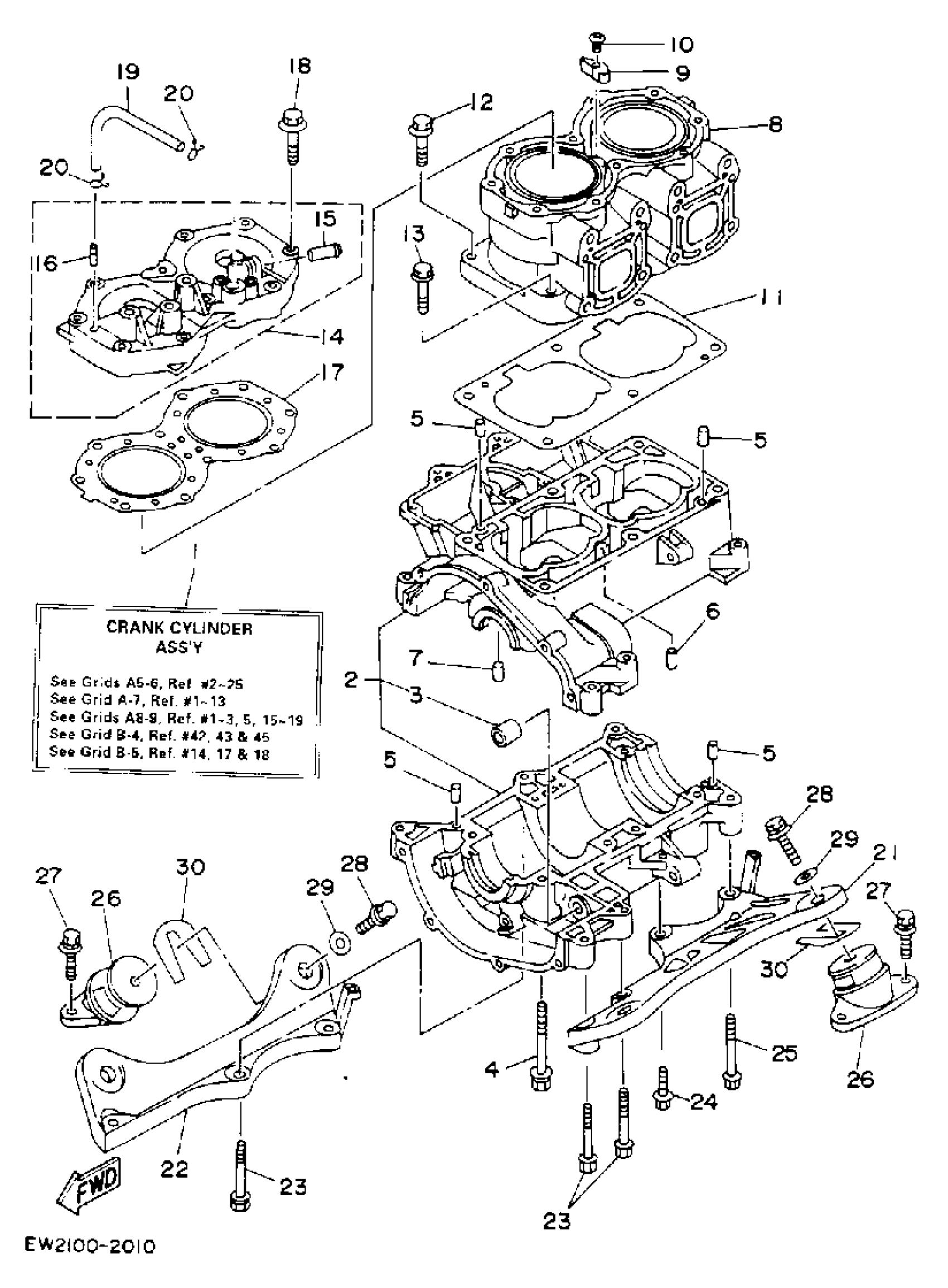

Yamaha SJ650Q (SUPER JET) 1992 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

6R7-W0090-04-8P

Unavailable

2

CRANKCASE ASSY

6M6-15100-00-8S

Unavailable

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

BOLT, WITH WASHER

90119-08M55-00

Unavailable

5

PIN, DOWEL (614)

93606-12019-00

$4.24

6

PIN (2H7)

93603-10049-00

Unavailable

7

PIN, DOWEL (8H1)

93604-07141-00

$2.17

8

CYLINDER 1

61L-11311-01-8S

Unavailable

9

ANODE

6E5-11325-00-00

Unavailable

10

SCREW, FLAT HEAD

98780-04016-00

Unavailable

11

GASKET, CYLINDER

6M6-11351-A2-00

Unavailable

12

BOLT, WITH WASHER

90119-10M56-00

Unavailable

13

BOLT (6F5)

90119-10M07-00

$4.82

14

HEAD, CYLINDER 1

6R7-11111-09-8S

Unavailable

15

. NIPPLE

6K8-51129-00-00

Unavailable

16

. PIPE, JOINT

6R7-14485-00-00

Unavailable

17

GASKET, CYL. HEAD

6R7-11181-A1-00

Unavailable

18

BOLT, WITH WASHER

90119-08019-00

Unavailable

19

HOSE (L200)

90445-07M19-00

Unavailable

20

CLIP

90467-06016-00

Unavailable

21

BRACKET, FRONT UPPER 1

6R7-21415-01-00

Unavailable

22

BRACKET, REAR UPPER 1

6R7-21425-01-00

Unavailable

23

BOLT, WITH WASHER

90119-10M23-00

Unavailable

24

BOLT, WITH WASHER

90119-10M00-00

Unavailable

25

BOLT, WITH WASHER

90119-10M03-00

Unavailable

26

MOUNT RUBBER

6R7-44517-00-8S

Unavailable

27

BOLT, WITH WASHER

90119-08038-00

Unavailable

28

BOLT, WITH WASHER

90119-08904-00

Unavailable

29

PLATE

EU0-67324-00-00

Unavailable

30

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

30

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

30

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

30

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

30

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable
