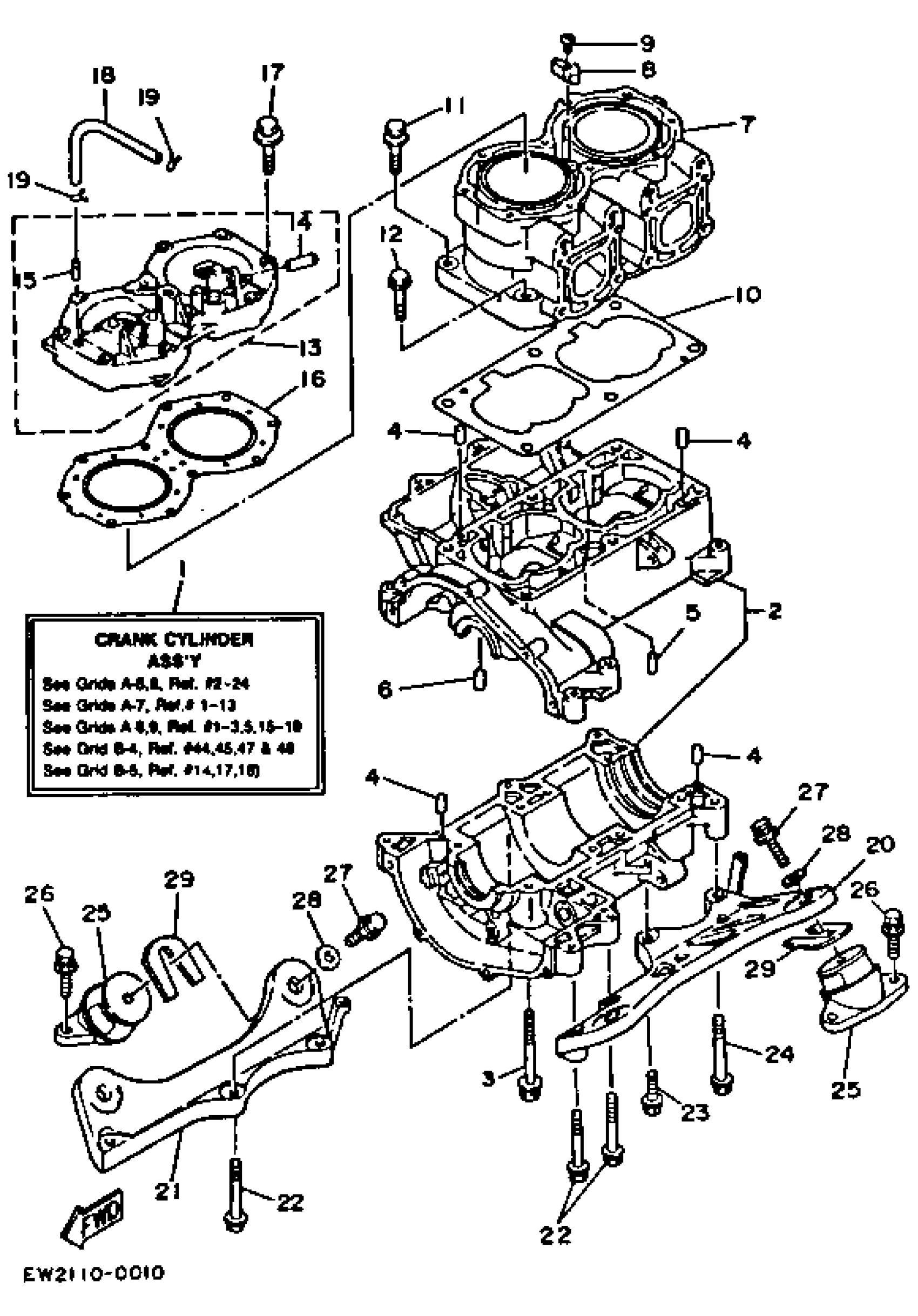

Yamaha SJ650P (SUPER JET) 1991 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

6R7-W0090-04-8P

$3,824.23

2

CRANKCASE ASSY

6M6-15100-00-8S

Unavailable

3

BOLT, WITH WASHER

90119-08M55-00

$2.95

4

PIN, DOWEL (614)

93606-12019-00

$3.05

5

PIN (2H7)

93603-10049-00

Unavailable

6

PIN, DOWEL (8H1)

93604-07141-00

$1.29

7

CYLINDER 1

61L-11311-01-8S

Unavailable

8

ANODE

6E5-11325-00-00

$4.08

9

SCREW, FLAT HEAD

98780-04016-00

$1.36

10

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

11

BOLT, WITH WASHER

90119-10M56-00

$10.24

12

BOLT (6F5)

90119-10M07-00

$4.21

13

HEAD, CYLINDER 1

6R7-11111-09-8S

Unavailable

14

. NIPPLE

6K8-51129-00-00

$9.62

15

. PIPE, JOINT

6R7-14485-00-00

$11.99

16

GASKET, CYL. HEAD

6R7-11181-A1-00

Unavailable

17

BOLT, WITH WASHER

90119-08019-00

$4.79

18

HOSE (L200)

90445-07M19-00

Unavailable

19

CLIP

90467-06016-00

$2.93

20

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

21

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

22

BOLT, WITH WASHER

90119-10M23-00

$10.24

23

BOLT, WITH WASHER

90119-10M00-00

$8.56

24

BOLT, WITH WASHER

90119-10M03-00

$9.08

25

MOUNT RUBBER

6R7-44517-00-8S

$90.89

26

BOLT, WITH WASHER

90119-08038-00

$4.99

27

BOLT, WITH WASHER

90119-08904-00

$3.18

28

PLATE

EU0-67324-00-00

$8.14

29

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

29

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

29

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

29

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

29

SHIM (T=1.0)

EU0-67354-D0-00

$4.09
