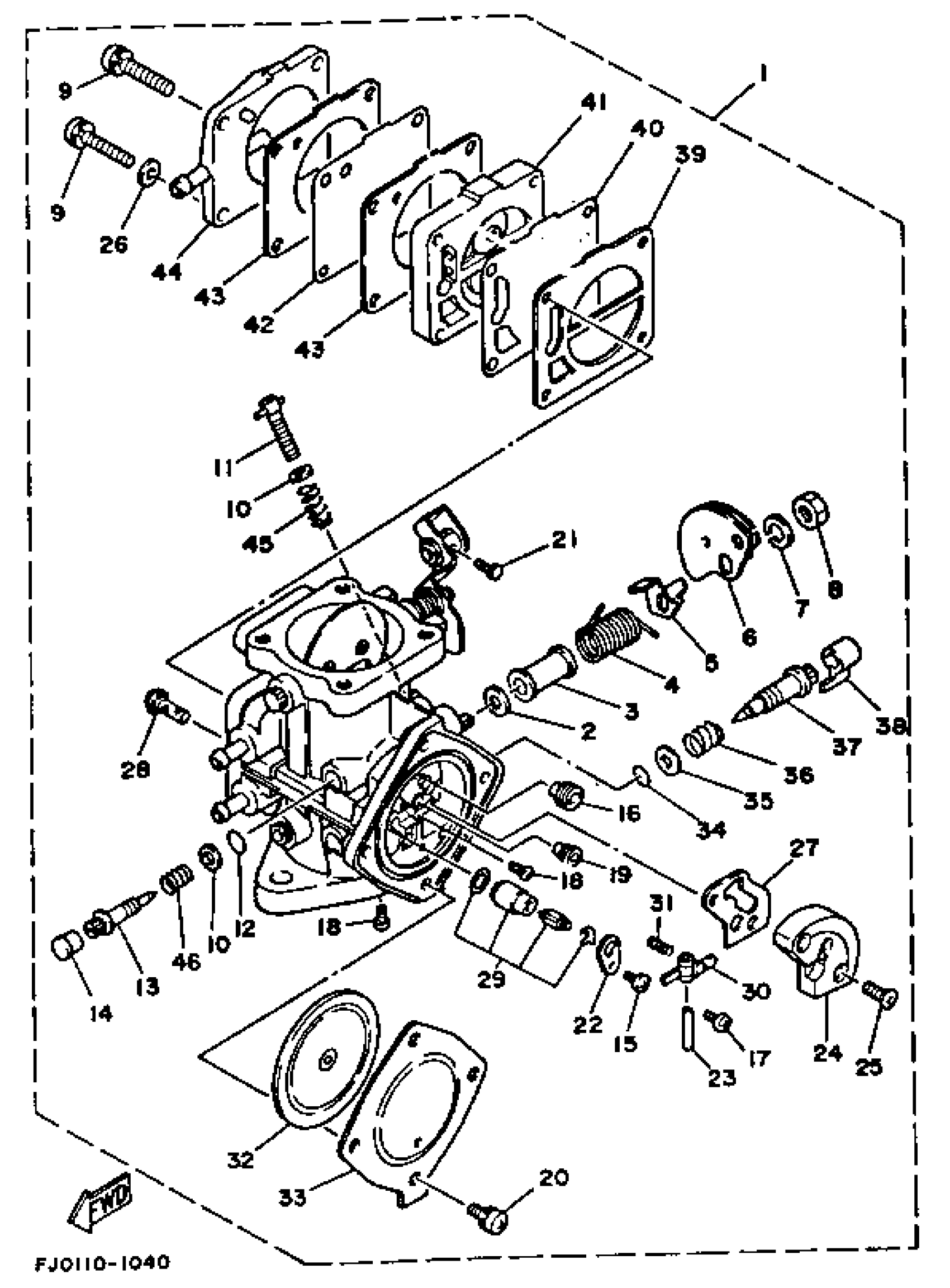

Yamaha SJ650P (SUPER JET) 1991 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

6R7-14301-01-00

Unavailable

2

. WASHER

6R7-14596-00-00

Unavailable

3

. COLLAR

6K8-14534-10-00

Unavailable

4

. SPRING

6K8-14556-10-00

Unavailable

5

. BRACKET, THROTTLE 1

6K8-14926-10-00

Unavailable

6

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

. NUT

95380-08700-00

Unavailable

9

SCREW, WITH WASHER(61B)

97985-05330-00

Unavailable

10

WASHER,NEEDLE

812-14235-00-00

Unavailable

11

. SCREW, ADJUST

6K8-14521-00-00

Unavailable

12

. O-RING

6K8-14562-00-00

Unavailable

13

. PLATE, NEEDLE FITTING

6K8-14946-10-00

Unavailable

14

. CAP, CARBURETOR

6K8-14471-10-00

Unavailable

15

. SCREW

6M6-14503-00-00

Unavailable

16

JET, MAIN (#115)

3G2-14231-23-A0

Unavailable

17

. SCREW

6K8-14503-02-00

Unavailable

18

. SCREW

6K8-14521-10-00

Unavailable

19

. JET, MAIN (#120)

830-14231-24-00

Unavailable

20

. SCREW

6K8-14591-10-00

Unavailable

21

. SCREW

6K8-14592-00-00

Unavailable

22

. PLATE

6K8-14527-11-00

Unavailable

23

. PIN, FLOAT

439-14186-00-00

Unavailable

24

. BODY 1

6R7-24412-01-00

Unavailable

25

SCREW, STOP

6K8-14523-12-00

Unavailable

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable

27

. GASKET (6K8-14536-10)

[6K-81453-61-20

Unavailable

28

. STRAINER

6R7-14569-00-00

Unavailable

29

NEEDLE

61X-14916-16-00

Unavailable

30

ARM, DIAPHRAGM

(812-14387-01-00)

Unavailable

31

. SPRING

6R7-14253-00-00

Unavailable

32

. DIAPHRAGM, PUMP

6R7-14541-00-00

Unavailable

33

BODY,PUMP 1

6R7-14542-10-00

Unavailable

34

O-RING

36Y-14147-00-00

Unavailable

35

. WASHER

6K8-14537-00-00

Unavailable

36

. SPRING

6K8-14589-00-00

Unavailable

37

. SCREW, PILOT

6K8-14923-10-00

Unavailable

38

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

39

. GASKET, BODY 2

6K8-24435-10-00

Unavailable

40

. DIAPHRAGM

6K8-24411-10-00

Unavailable

41

. BODY 2

6K8-24413-10-00

Unavailable

42

. VALVE, CHECK

6K8-24421-10-00

Unavailable

43

. GASKET, FUEL PUMP 1

6K8-24431-10-00

Unavailable

44

. COVER

6K8-24452-10-00

Unavailable

45

. SPRING, ADJUST SCREW

6K8-14531-00-00

Unavailable

46

. SPRING, ADJUST SCREW

6K8-14533-00-00

Unavailable
