1990 Yamaha Super Jet (SJ650D) Starting Motor Diagram

← All diagrams

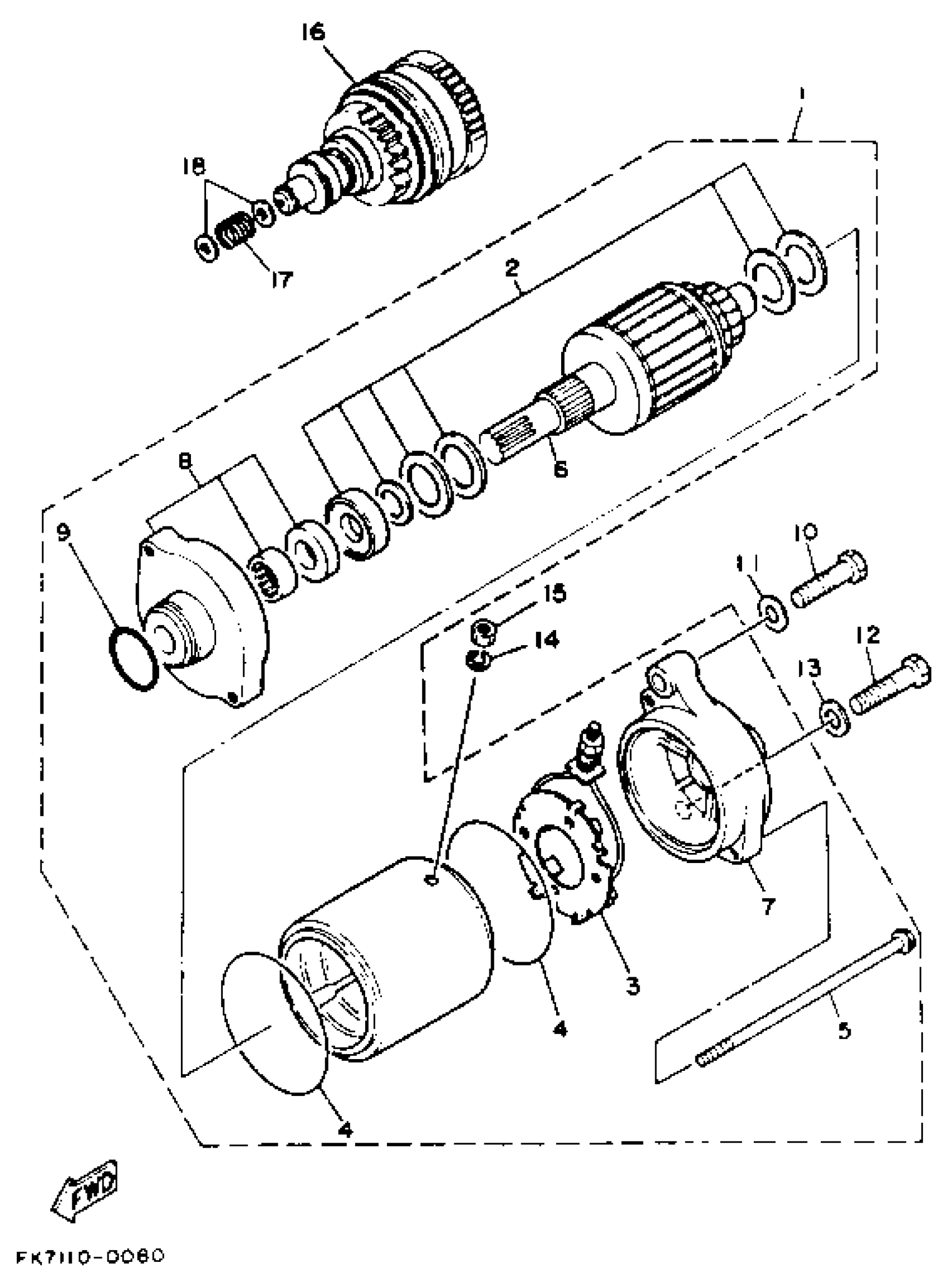

Find the part on the Starting Motor diagram for your 1990 Yamaha Super Jet (SJ650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Super Jet (SJ650D) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSY

6M6-81800-10-00

1
Out of stock

2

WASHER KIT

3AJ-81809-00-00

—
Out of stock

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

1
Out of stock

4

GASKET

35C-81844-00-00

—
Out of stock

5

. BOLT

6M6-81826-00-00

1
Out of stock

6

. ARMATURE ASSY

6M6-81850-00-00

1
Out of stock

7

. REAR BRACKET ASSY

6M6-81820-00-00

1
Out of stock

8

. FRONT BRACKET ASSY

6M6-81830-00-00

1
Out of stock

9

O-RING (437)

93210-24235-00

1
Out of stock

10

BOLT

97014-08040-00

1
Out of stock

11

.. WASHER, PLATE

92990-08600-00

1
Out of stock

12

BOLT

97013-08035-00

1
Out of stock

13

.. WASHER, PLATE

92990-08600-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1
Out of stock

15

NUT(650)

95380-06700-00

1
Out of stock

16

IDLE GEAR COMP.

6M6-8183E-01-00

1
Out of stock

17

SPRING, COMPRESSION

90501-14M73-00

1
Out of stock

18

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock
