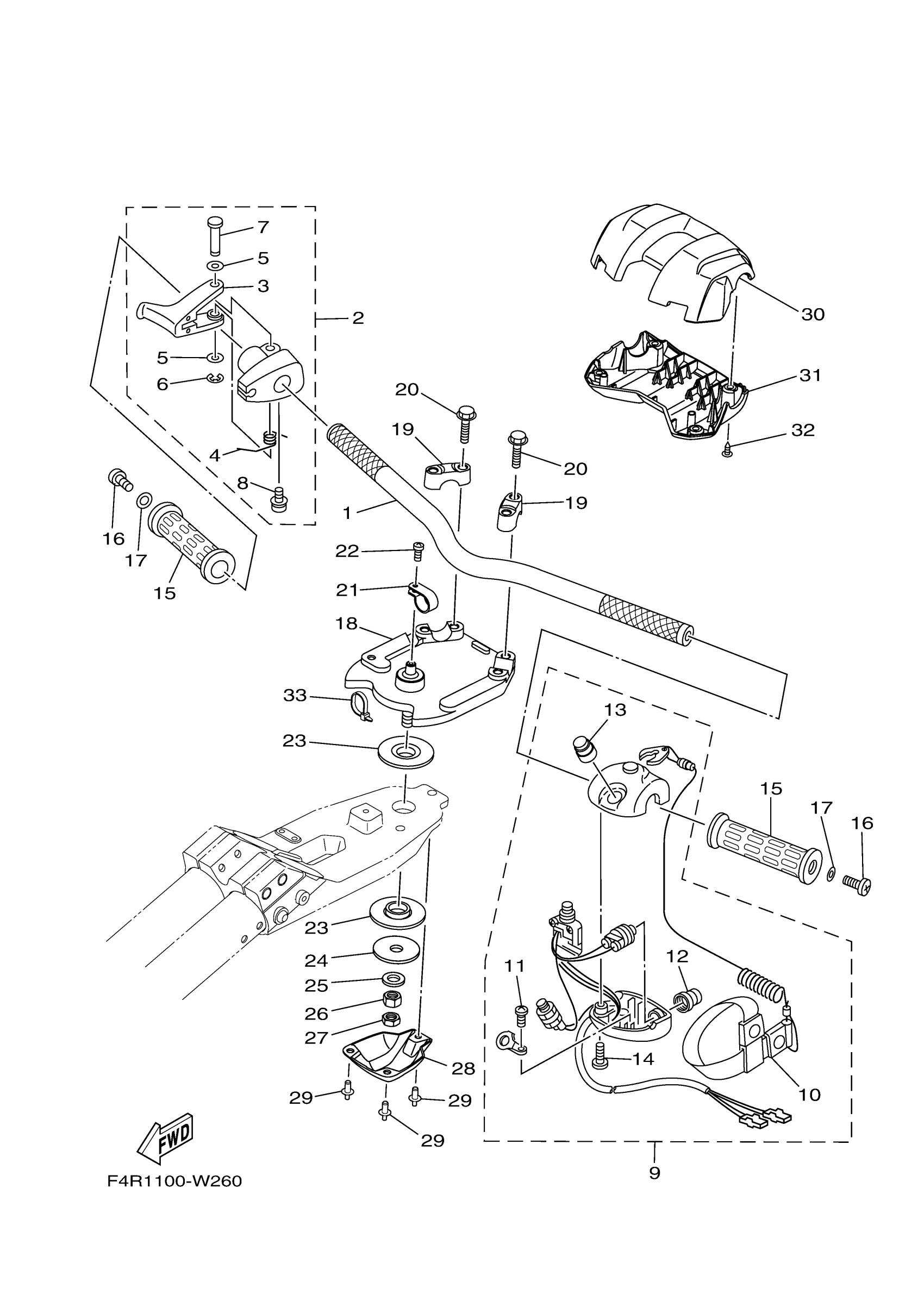

Yamaha SJ1050Y (SUPER JET) F4R3 2023 STEERING 1 Diagram
#
1
HANDLE
F4R-61552-00-00
$125.99
2
THROTTLE LEVER ASSY
F0D-67250-10-00
Unavailable
3
LEVER, THROTTLE
F0D-67255-02-00
Unavailable
4
. SPRING
EW2-67256-00-00
Unavailable
5
WASHER, PLAIN (646)
92990-05600-00
$0.80
6
CIRCLIP (EU0)
99080-04600-00
Unavailable
7
. SHAFT
F0D-67257-00-00
Unavailable
8
. BOLT, THROTTLE
F1X-6725F-01-00
Unavailable
9
SWITCH BOX ASSY
F4R-68310-00-00
Unavailable
10
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
11
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
12
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
13
. START BUTTON COMP
FK7-68313-02-00
Unavailable
14
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
15
GRIP, HANDLE 1
EW2-61553-00-00
Unavailable
16
SCREW,TRASS HEAD (FJ0)
90149-05959-00
Unavailable
17
WASHER, PLATE
90201-05800-00
Unavailable
18
COLUMN, STEERING
F4R-61541-00-00
Unavailable
19
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
20
BOLT, FLANGE (EW2)
90105-08902-00
Unavailable
21
CLIP, NYLON 17
90600-91728-00
Unavailable
22
SCREW, BINDING (M01)
98980-04010-00
Unavailable
23
BEARING, COLUMN
EW2-61417-00-00
Unavailable
24
WASHER, STEERING
EW2-61419-00-00
Unavailable
25
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
26
NUT
95380-12600-00
Unavailable
27
NUT
95380-12700-00
Unavailable
28
COVER
F4R-61595-00-00
Unavailable
29
RIVET
90269-06019-00
Unavailable
30
PAD, STEERING 1
F4R-6143D-01-00
Unavailable
31
PAD, STEERING 2
F4R-6143E-01-00
Unavailable
32
SCREW
90149-05937-00
Unavailable
33
CLAMP (6E5)
90465-13M11-00
Unavailable
