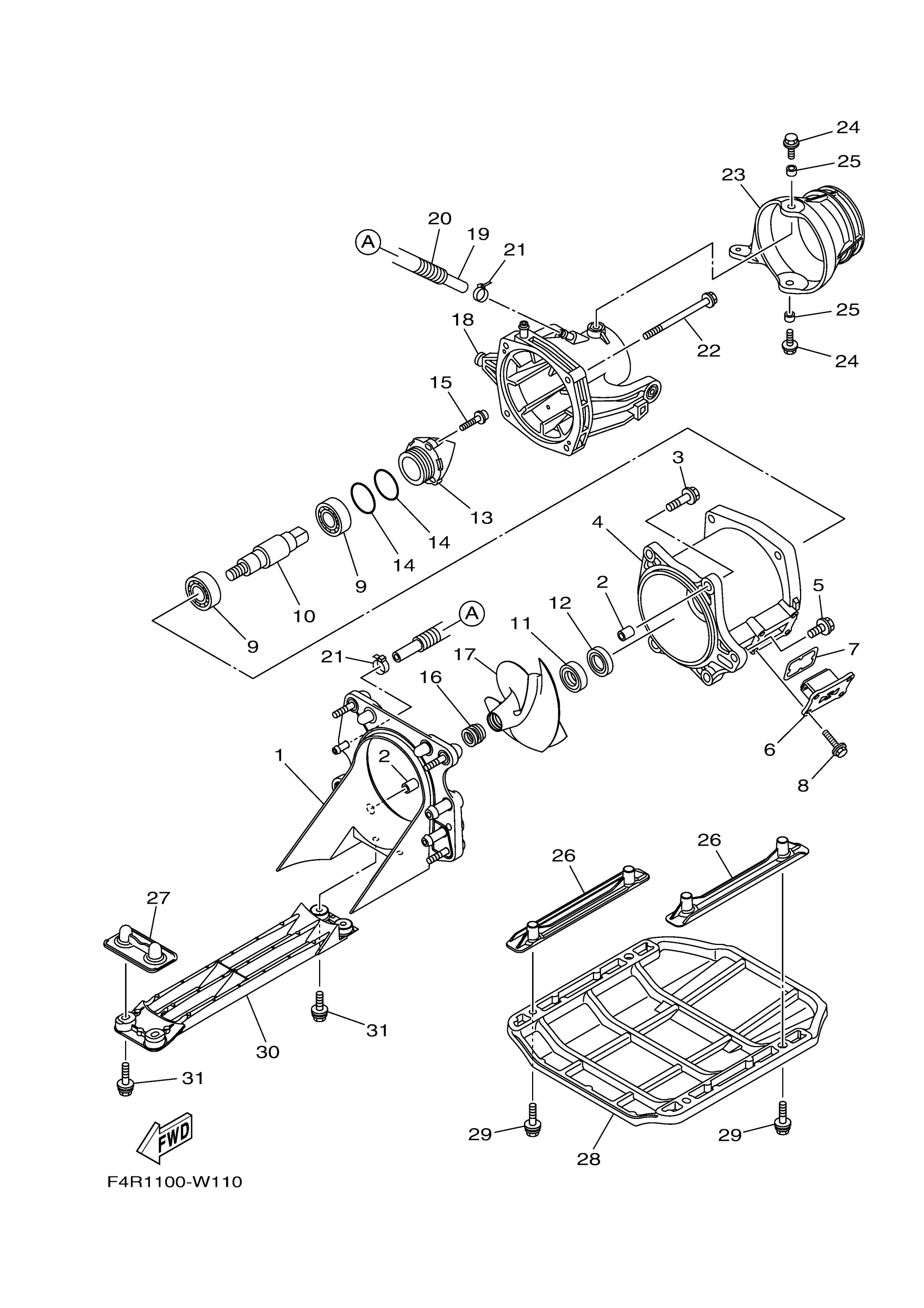

Yamaha SJ1050Y (SUPER JET) F4R3 2023 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6JF-G5831-00-00

$146.95

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10819-00

$3.33

4

HOUSING, IMPELLER

6GA-R1312-02-00

$169.19

5

BOLT, WITH WASHER

90119-10066-00

$2.65

6

FILTER

6GA-G6882-00-00

$7.12

7

. O-RING

6GA-G2414-00-00

$0.93

8

BOLT,WITH WASHER

90119-06890-00

$1.07

9

BEARING

93306-255X7-00

$14.35

10

SHAFT, DRIVE 4

6GA-G5514-00-00

$43.83

11

OIL SEAL(6R7)

93102-25M34-00

$13.70

12

OIL SEAL(6R7)

93101-25M50-00

Unavailable

13

CAP

6EX-R1326-10-00

$7.12

14

. O-RING

93210-44003-00

$2.61

15

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

16

CAP, IMPELLER

6DU-51319-00-00

$24.98

17

IMPELLER

6JF-R1321-00-00

$383.32

18

NOZZLE

6GA-R1318-00-00

$65.14

19

HOSE (L290)

90445-14812-00

Unavailable

20

HOSE (L260)

90446-20M13-00

$13.99

21

CLAMP

90465-10098-00

$1.68

22

BOLT, WITH WASHER

90119-08844-00

$1.29

23

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

24

BOLT, WITH WASHER

90119-08841-00

$1.01

25

COLLAR(6R7)

90387-08M06-00

Unavailable

26

BRACKET 2

F2X-68572-A0-00

Unavailable

27

BRACKET, 3

F2S-68577-A0-00

Unavailable

28

PLATE 2

F4R-6273B-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08829-00

$3.88

30

SCREEN, INTAKE

F4R-51333-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08038-00

$4.99
