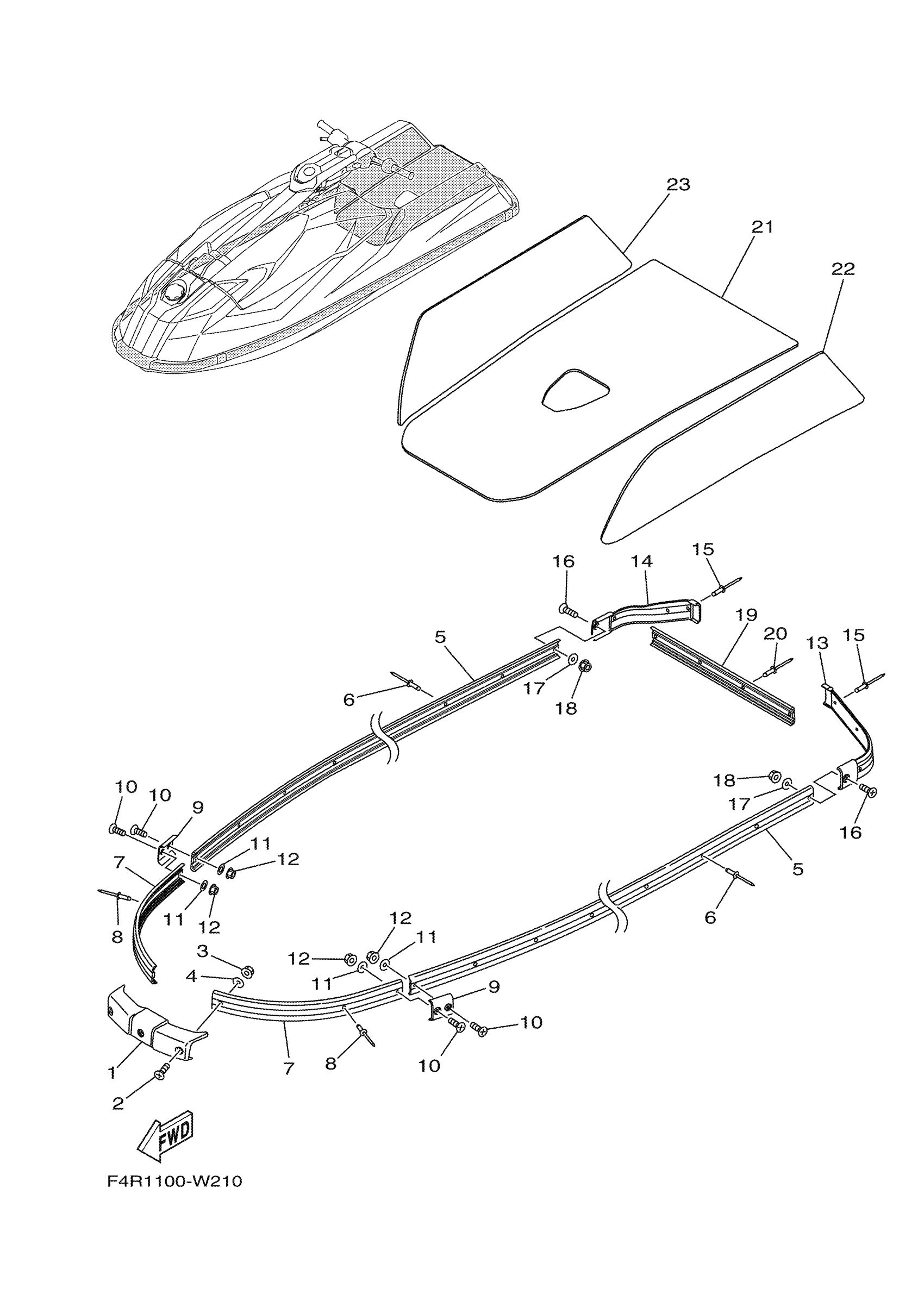

Yamaha SJ1050Y (SUPER JET) F4R3 2023 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4R-62511-00-00

Unavailable

2

SCREW (FJ0)

90149-05960-00

$2.69

3

. WASHER, PLAIN

92990-05200-00

$4.71

4

NUT, FLANGE

95720-05300-00

$1.29

5

GUNWALE, SIDE 1

F2F-62552-00-00

$76.37

6

RIVET, BLIND(GA7)

90267-48949-00

$1.72

7

COVER, GUNWALE 1

F4R-6252C-00-00

$20.88

8

RIVET, BLIND(GA7)

90267-48949-00

$1.72

9

JOINT,GUNWALE

F4R-6252A-00-00

$22.37

10

SCREW (FJ0)

90149-05960-00

$2.69

11

. WASHER, PLAIN

92990-05200-00

$4.71

12

NUT, FLANGE

95720-05300-00

$1.29

13

GUNWALE, STERN 1

F4R-6251D-00-00

Unavailable

14

GUNWALE, STERN 2

F4R-6251E-00-00

$6.72

15

RIVET, BLIND(GA7)

90267-48949-00

$1.72

16

SCREW (FJ0)

90149-05960-00

$2.69

17

. WASHER, PLAIN

92990-05200-00

$4.71

18

NUT, FLANGE

95720-05300-00

$1.29

19

COVER, GUNWALE 1

F4R-6252C-00-00

$20.88

20

RIVET, BLIND(GA7)

90267-48949-00

$1.72

21

MAT,LOWER

F4R-6351B-00-00

Unavailable

22

MAT, SIDE 1

F4R-6351C-10-00

Unavailable

23

MAT,SIDE 2

F4R-6351D-10-00

Unavailable
