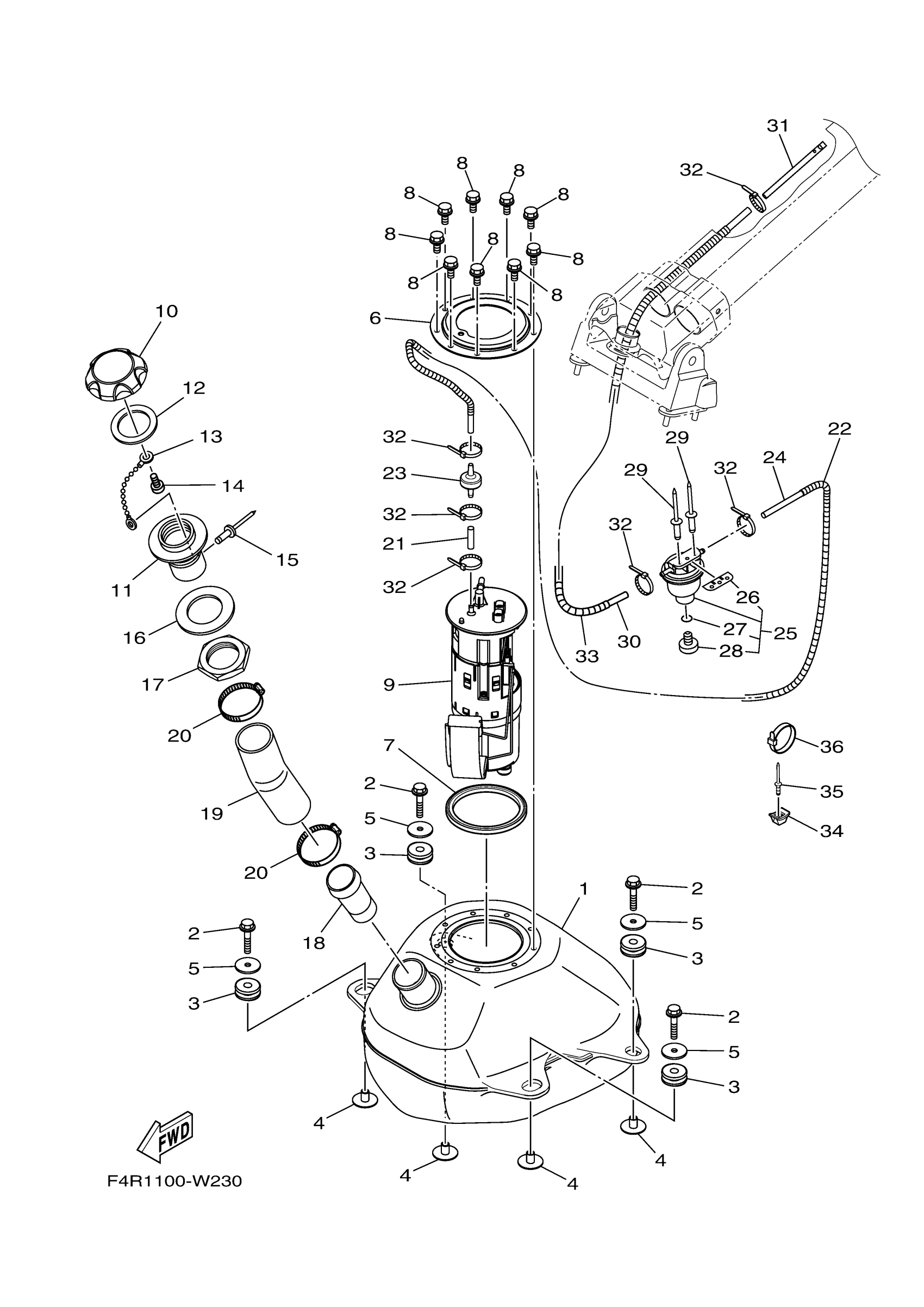

Yamaha SJ1050Y (SUPER JET) F4R3 2023 FUEL TANK Diagram
#
1
TANK, FUEL
F4R-67711-00-00
Unavailable
2
BOLT, WITH WASHER
90119-08904-00
Unavailable
3
GROMMET
F4R-61338-00-00
$6.99
4
COLLER
F4R-67278-00-00
Unavailable
5
WASHER, PLATE
90201-08MA4-00
Unavailable
6
RING
F4R-67773-00-00
Unavailable
7
PACKING, SEAL
F1B-67747-00-00
Unavailable
8
BOLT, FLANGE(7HT)
95880-06010-00
$2.75
9
FUEL PUMP COMP.
F4R-13907-01-00
Unavailable
10
CAP, FUEL FILLER
F2N-U7831-10-00
Unavailable
11
SOCKET
GP7-U7833-11-00
Unavailable
12
PACKING
GP7-U7832-01-00
Unavailable
13
CHAIN BALL
GP7-U7835-00-00
Unavailable
14
SCREW, TRUSS HEAD TAPPING
90169-049U1-00
Unavailable
15
RIVET, BLIND
90267-329UR-00
Unavailable
16
PACKING FUEL FILLER
GP7-U7834-00-00
Unavailable
17
NUT, FUEL FILLER
GP7-6783F-A0-00
Unavailable
18
TUBE
F4R-6773D-00-00
Unavailable
19
HOSE
F4R-67844-00-00
Unavailable
20
BAND, HOSE 55
90601-15573-00
Unavailable
21
HOSE
90699-50100-00
Unavailable
22
HOSE(64U)
90446-14M64-00
Unavailable
23
CHECK VALVE
F3Y-67767-A0-00
Unavailable
24
HOSE
90699-50135-00
Unavailable
25
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
26
. PLATE, FILTER
EW2-62142-00-00
Unavailable
27
. PLUG, DRAIN
70R-24543-00-00
Unavailable
28
. O-RING
70R-24489-00-00
Unavailable
29
RIVET, BLIND(GA7)
90267-48949-00
Unavailable
30
HOSE
90699-50075-00
Unavailable
31
PIPE VENTILATION 2
EW2-62149-31-00
Unavailable
32
CLAMP
90465-10098-00
Unavailable
33
TUBE
EU0-67731-00-00
Unavailable
34
CLAMP COMP (EU0)
90600-91736-00
Unavailable
35
RIVET, SEALD
90267-48930-00
Unavailable
36
BAND (EU0)
90601-20009-00
Unavailable
