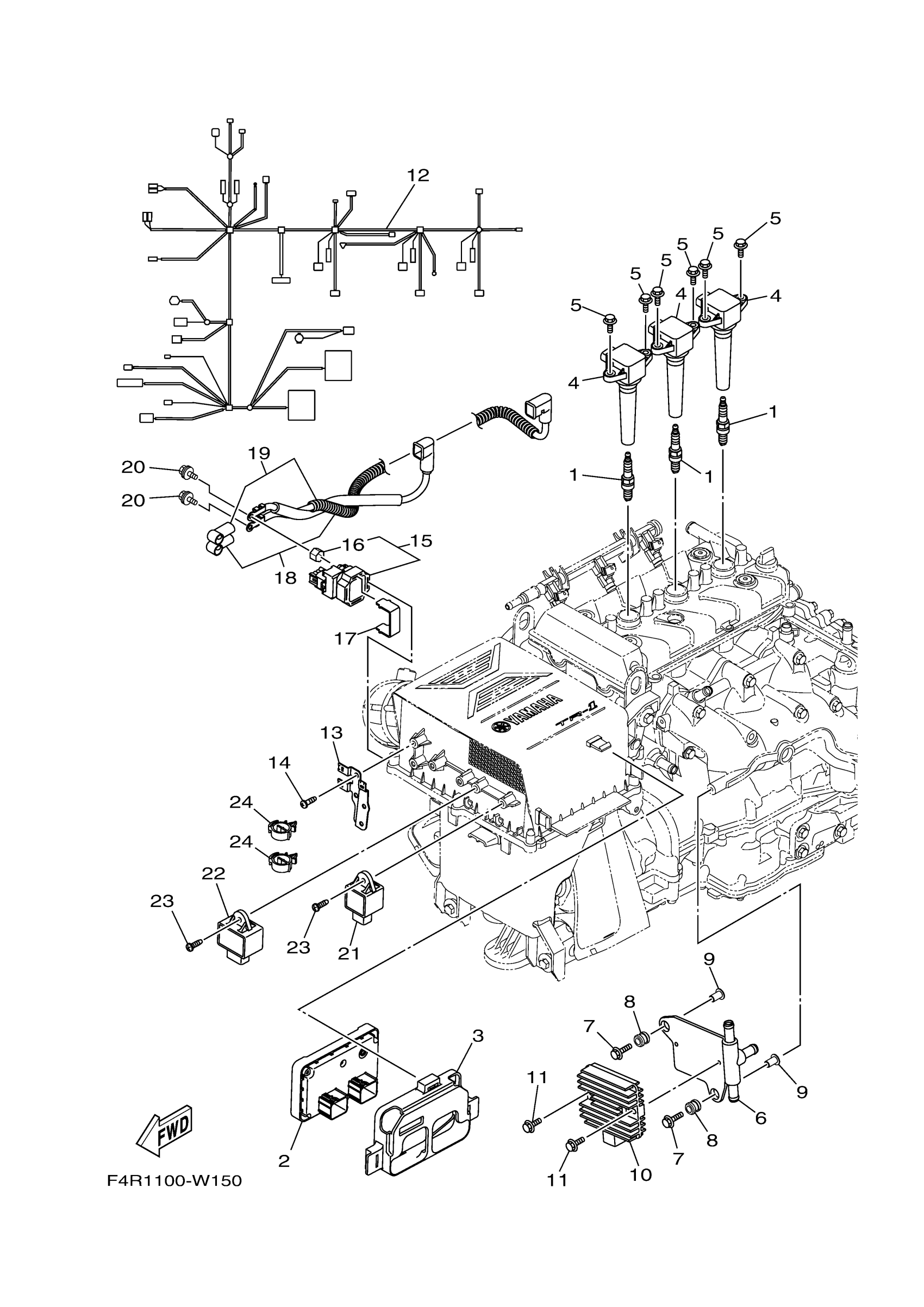

Yamaha SJ1050Y (SUPER JET) F4R3 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$7.28

2

ENGINE CONTROL UNI

6JF-8591A-00-00

Unavailable

3

GROMMET, ECU

6EY-8591S-00-00

$18.52

4

IGNITION COIL ASSY

6EX-82310-02-00

$154.71

5

BOLT, FLANGE(JL8)

95880-06016-00

$3.41

6

PLATE, RECTIFIER FITTING

6EY-81975-00-00

$57.56

7

BOLT, WITH WASHER

90119-06311-00

$1.58

8

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

9

. COLLAR

90387-06119-00

$4.37

10

RECTIFIER & REGULA

6D3-81960-01-00

$145.47

11

BOLT, FLANGE

95814-06020-00

$6.22

12

WIRE HARNESS ASSY 1

6JF-8259L-01-00

Unavailable

13

STAY, FUSE HOLDER

6JF-82153-01-00

$3.64

14

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

15

STARTER RELAY ASSY

6EY-81940-09-00

$71.09

16

. GROMMET

6EY-82355-00-00

$2.73

17

STAY, RELAY

6EY-81953-00-00

$4.09

18

WIRE, PLUS LEAD

6GA-82115-01-00

$118.17

19

WIRE, LEAD

6EY-82117-00-00

$33.34

20

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

$1.36

21

RELAY ASSY

60E-81950-00-00

$137.93

22

. RELAY ASSY

68V-81950-00-00

$111.74

23

SCREW, TAPPING

97780-60520-00

$4.09

24

CLAMP(4TR)

90464-18246-00

Unavailable
