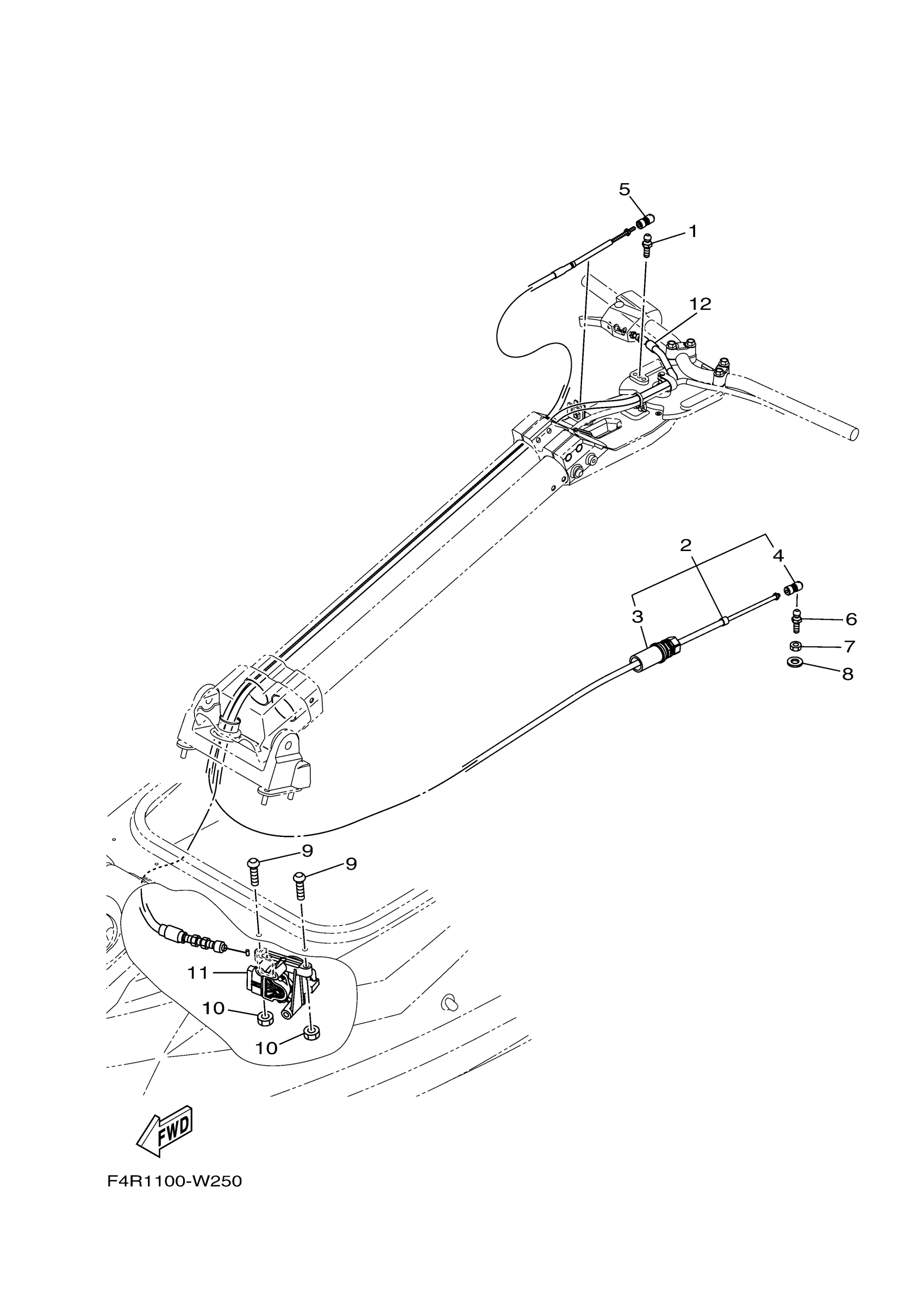

Yamaha SJ1050Y (SUPER JET) F4R3 2023 CONTROL CABLE Diagram

#

Description
Price

1

STUD, JOINT BALL

EU0-61461-02-00

$14.38

2

CABLE, STEERING

F4R-61481-01-00

$219.68

3

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

4

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

5

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

6

STUD, JOINT BALL

EU0-61461-02-00

$14.38

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT(650)

95380-06700-00

$5.75

9

BOLT

90111-08023-00

Unavailable

10

. NUT, SELF-LOCKING

95720-08300-00

$3.33

11

THROTTLE LEVER COM

6JF-14305-00-00

Unavailable

12

WIRE, THROTTLE 1

6JF-26311-00-00

$99.98
