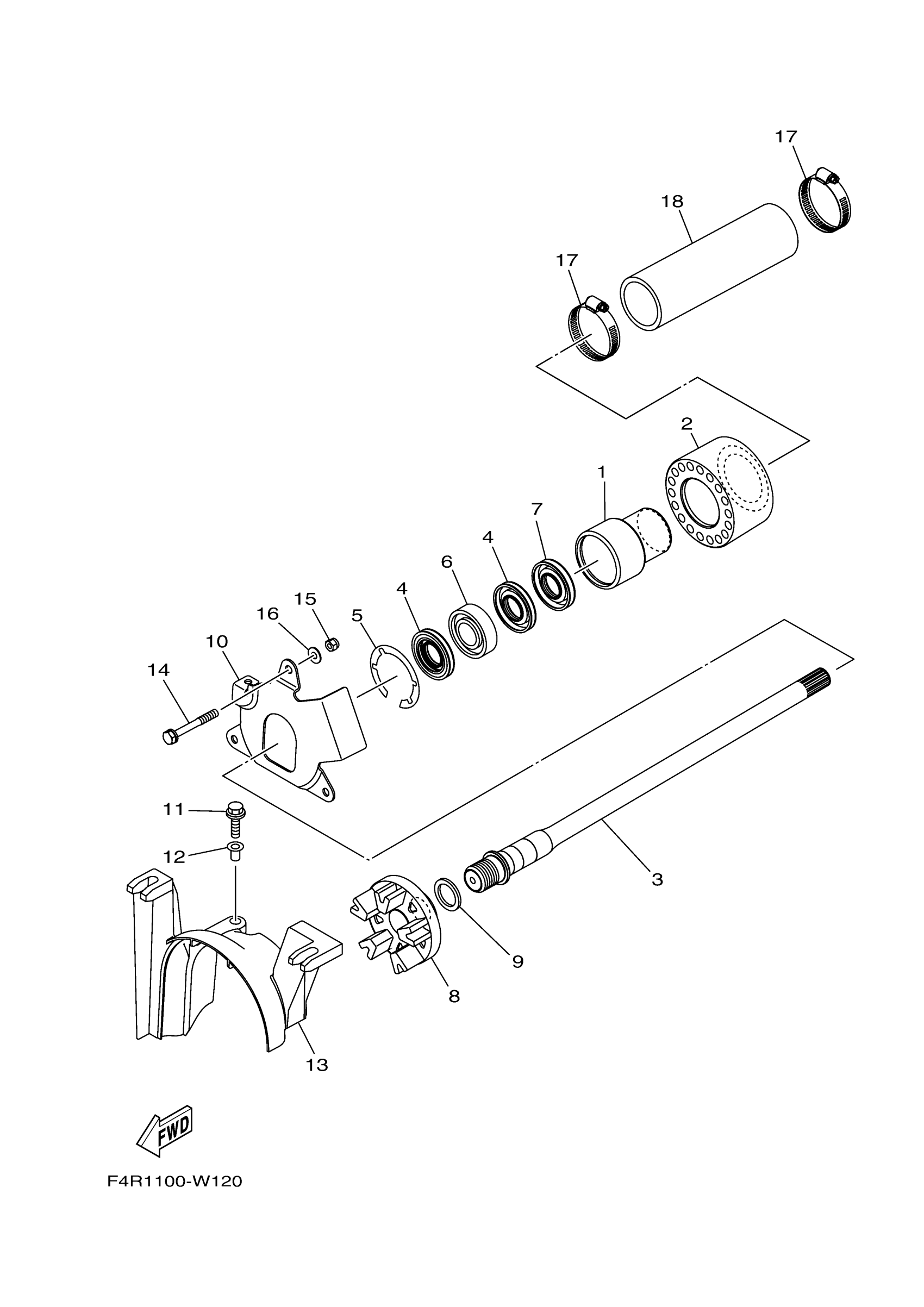

Yamaha SJ1050X (SUPER JET) F4R2 2022 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

6JF-G5332-00-00

$41.63

2

DAMPER

6GA-G5235-00-00

$17.94

3

SHAFT, DRIVE

6JF-G5511-00-00

$489.38

4

OIL SEAL(62T)

93101-25M55-00

$24.36

5

CIRCLIP(26H)

99009-52500-00

$10.02

6

BEARING

93306-205XG-00

$8.61

7

OIL SEAL

93101-24001-00

$30.69

8

FLANGE, COUPLING 1

6GA-G5593-00-00

$24.39

9

WASHER, PLATE

90201-24800-00

$1.37

10

PLATE

6JF-G5321-00-00

$19.68

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

12

COLLAR

90387-06289-00

$2.30

13

COVER

6EY-51381-A0-00

Unavailable

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06550-00

$1.71

15

NUT, SELF-LOCKING

95720-06300-00

$1.82

16

WASHER, PLATE

90201-06M62-00

$4.50

17

BAND, HOSE 50

90601-15041-00

$20.99

18

PIPE 1

F4R-6883B-00-00

Unavailable
