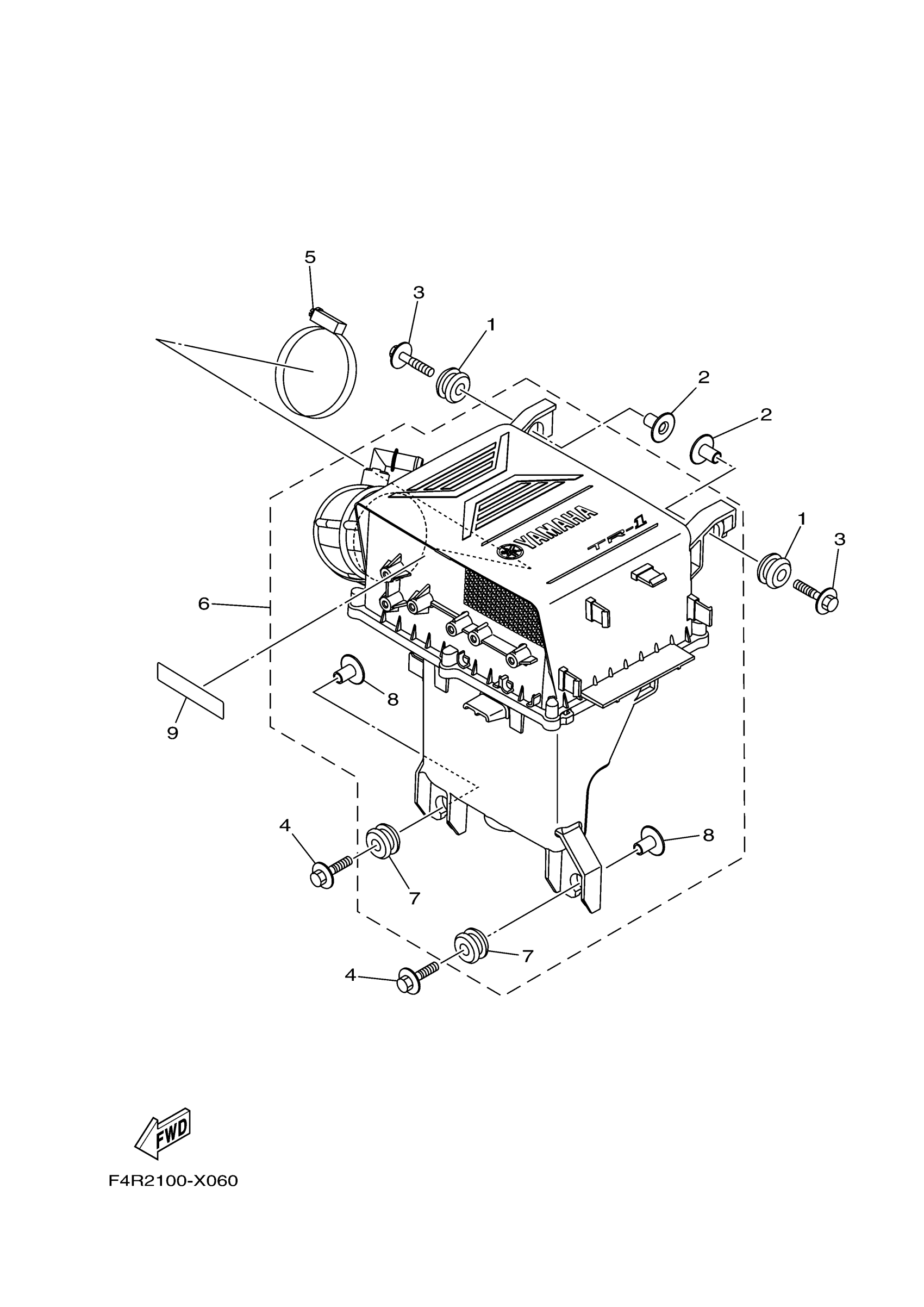

Yamaha SJ1050X (SUPER JET) F4R2 2022 INTAKE 2 Diagram

#

Description

Price

1

GROMMET

90480-22M15-00

$11.01

2

COLLAR

90387-08M37-00

$9.68

3

BOLT, WITH WASHER

90119-08169-00

$2.44

4

BOLT, WITH WASHER

90119-08187-00

$2.82

5

HOSE CLAMP ASSY

90450-90002-00

$16.90

6

AIR CLEANER ASSY.

6JF-14410-10-00

$664.69

7

GROMMET

90480-22M15-00

$11.01

8

COLLAR

90387-08M37-00

$9.68

9

LABEL, CAUTION 7

60E-83627-00-00

$4.41
