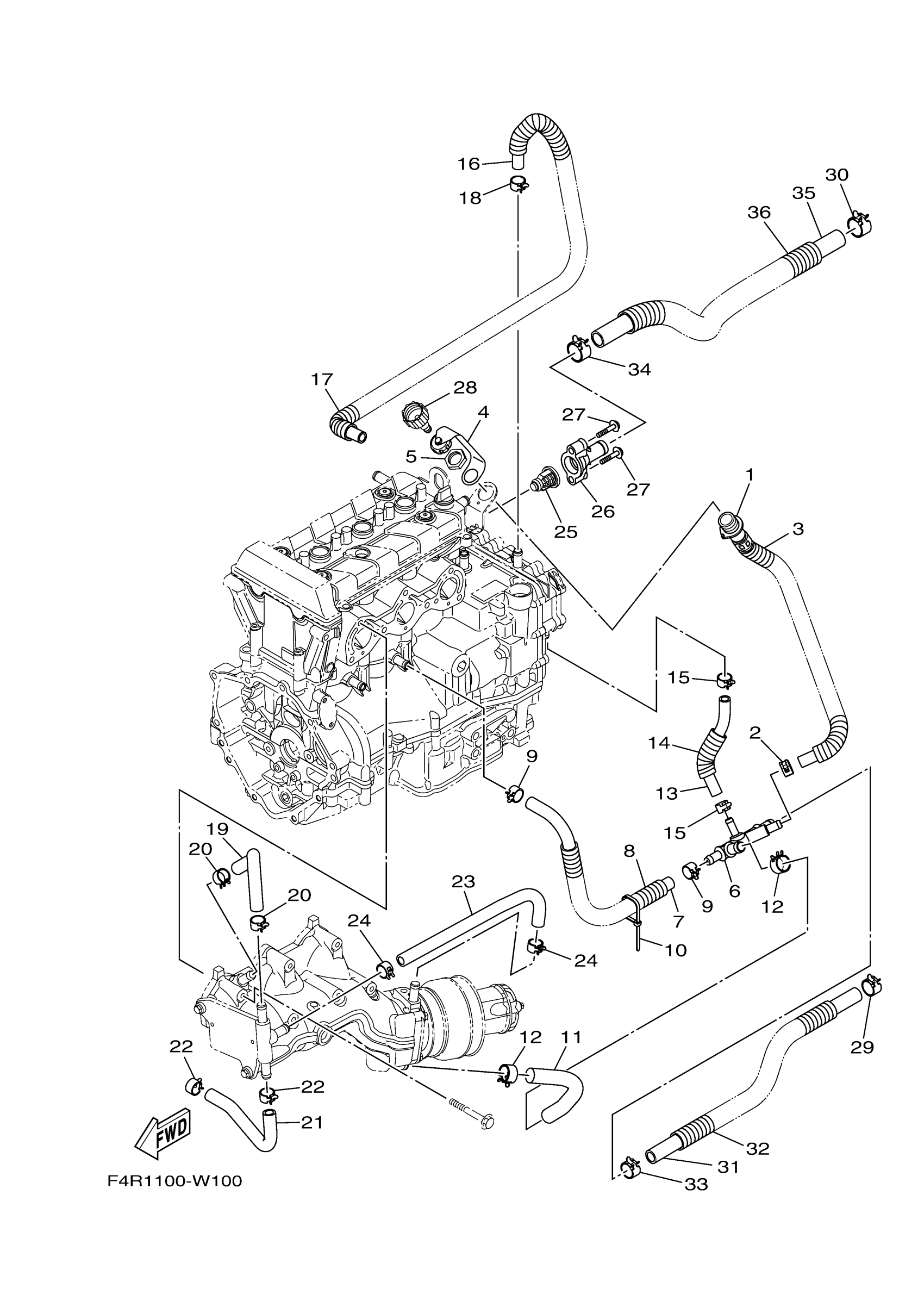

Yamaha SJ1050X (SUPER JET) F4R2 2022 EXHAUST 2 Diagram
#
1
JOINT ASSY
6EY-12580-00-00
Unavailable
2
CLIP
90467-150A5-00
Unavailable
3
HOSE (L420)
90446-24M89-00
Unavailable
4
CAP,1
6EY-84385-00-00
Unavailable
5
NUT
EU0-61652-00-00
Unavailable
6
JOINT, HOSE 3
6EY-12584-00-00
Unavailable
7
HOSE (L400)
90445-18012-00
Unavailable
8
TUBE (L300)
90447-19014-00
Unavailable
9
CLIP
90467-160A0-00
Unavailable
10
CLAMP(3XW)
90464-35132-00
$9.49
11
HOSE (L170)
90445-21015-00
Unavailable
12
CLIP
90467-200A3-00
Unavailable
13
HOSE (L160)
90445-16019-00
Unavailable
14
HOSE (L70)
90446-24M44-00
Unavailable
15
. CLIP
90467-150A1-00
Unavailable
16
HOSE (L910)
90445-16026-00
Unavailable
17
TUBE (L760)
90447-19018-00
Unavailable
18
CLIP
90467-160A0-00
Unavailable
19
HOSE 2
6EY-12577-00-00
Unavailable
20
CLIP
90467-160A0-00
Unavailable
21
HOSE 4
6S5-12579-00-00
Unavailable
22
CLIP
90467-160A0-00
Unavailable
23
HOSE (L370)
90445-18018-00
Unavailable
24
CLIP
90467-160A0-00
Unavailable
25
THERMOSTAT
6D3-12411-00-00
Unavailable
26
COVER, THERMOSTAT
6EY-12413-00-00
Unavailable
27
BOLT, FLANGE
90105-06035-00
Unavailable
28
CONDUCTION ASSY
67X-12590-A0-00
Unavailable
29
CLAMP
90465-06029-00
Unavailable
30
CLAMP
90465-06030-00
Unavailable
31
HOSE (L605)
90445-21016-00
Unavailable
32
TUBE (L530)
90447-22018-00
Unavailable
33
CLIP
90467-200A3-00
Unavailable
34
CLIP
90467-240A0-00
Unavailable
35
HOSE (L800)
90445-25005-00
Unavailable
36
TUBE (L700)
90447-28009-00
Unavailable
