- SJ1050X (SUPER JET) F4R2 2022
ENGINE HATCH

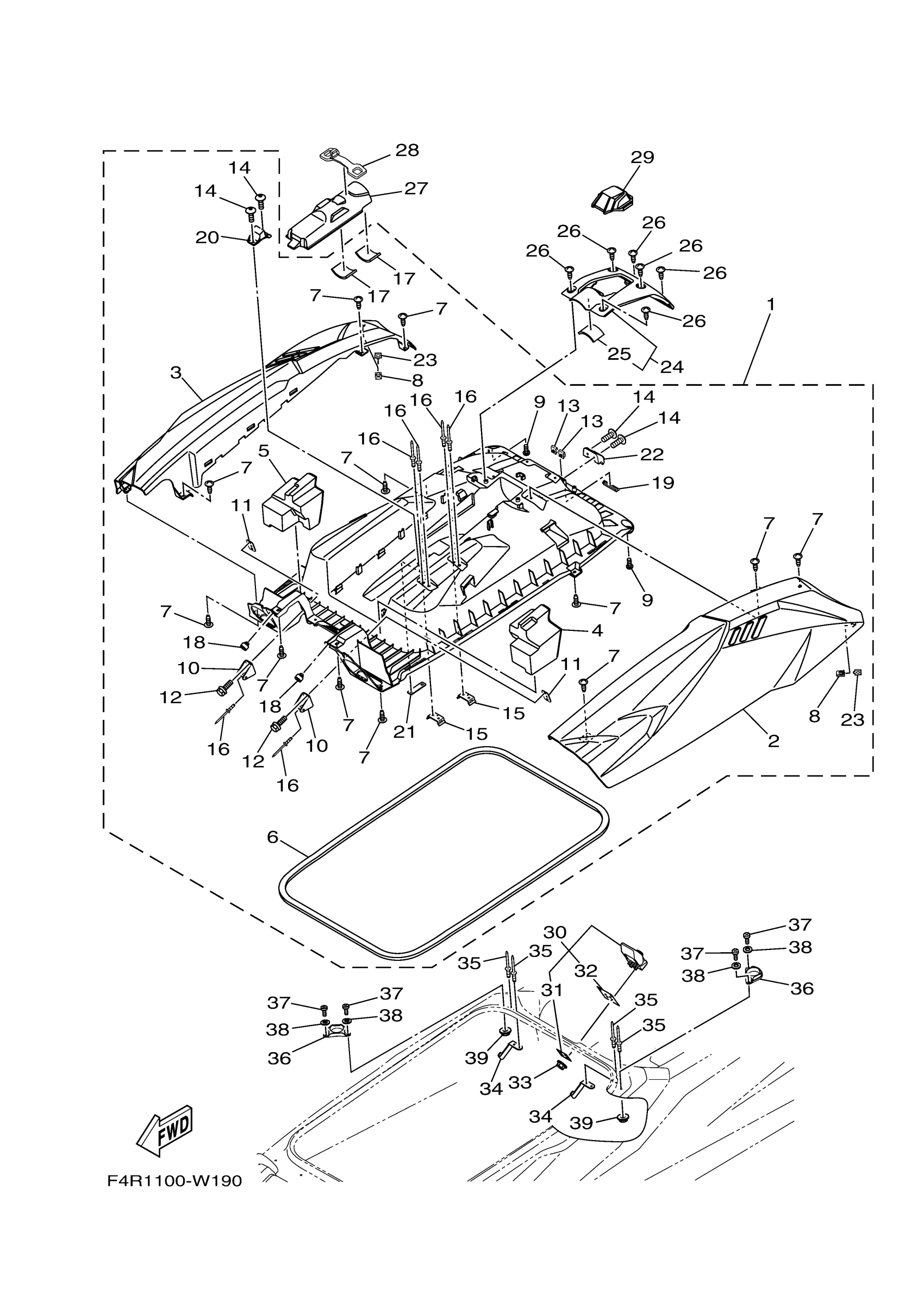

Yamaha SJ1050X (SUPER JET) F4R2 2022 ENGINE HATCH Diagram
#
1
ENGINE ROOM HATCH ASSY
F4R-6517A-00-P0
Unavailable
2
HATCH,ENGINE ROOM
F4R-65161-00-P0
Unavailable
3
LID, ENGINE HATCH
F4R-65171-00-P0
Unavailable
4
. FLOTATION, HATCH 1
F4R-6514G-00-00
Unavailable
5
. FLOTATION, HATCH 2
F4R-6514H-00-00
Unavailable
6
PACKING
F4R-62664-01-00
$208.99
7
SCREW, TAPPING(4KY)
97780-50016-00
$2.28
8
. NUT, SPRING
90183-051A5-00
Unavailable
9
BOLT, WITH WASHER
97595-05516-00
$1.01
10
STOPPER, HATCH 2
F4R-65136-00-00
Unavailable
11
PLATE, HATCH STOPP
F4R-65137-00-00
Unavailable
12
BOLT, HEXAGON W/W DEEP RECESS
97E95-06520-00
Unavailable
13
NUT, SPRING(GJ3)
90183-06902-00
$11.49
14
BOLT
90111-06041-00
$8.49
15
. CLAMP
GM6-64256-00-00
Unavailable
16
RIVET, BLIND
90267-48941-00
Unavailable
17
PAD,HATCH 1
F4R-6517M-00-00
Unavailable
18
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
19
. TRIM 1
GM6-6516C-00-00
Unavailable
20
STOPPER
F4R-65157-00-00
Unavailable
21
PLATE
F4R-65193-00-00
Unavailable
22
BRACKET
F4R-65372-00-00
Unavailable
23
PLATE, FIX
F4R-65175-00-00
Unavailable
24
ENGINE HATCH COVER
F4R-6516M-00-00
Unavailable
25
PAD,HATCH 1
F4R-6517M-00-00
Unavailable
26
SCREW
90149-05937-00
Unavailable
27
COVER
F4R-6516W-00-00
Unavailable
28
BAND, BOARDING LAD
F4R-65191-00-00
Unavailable
29
DAMPER, POLE
F4R-6514B-00-00
Unavailable
30
HATCH LOCK ASSY. 2
F4R-62840-01-00
Unavailable
31
. PLATE, HATCH LOCK
EW2-62846-00-00
Unavailable
32
. PACKING, HATCH LOCK
F4R-6284E-00-00
Unavailable
33
NUT, FLANGE
95720-05300-00
Unavailable
34
HOOK C
F4R-6756C-00-00
Unavailable
35
RIVET, SEALD
90267-48930-00
Unavailable
36
PROTECTOR 1
F4R-6514M-00-00
Unavailable
37
SCREW (FJ0)
90149-05960-00
Unavailable
38
. WASHER, PLAIN
92990-05200-00
Unavailable
39
NUT, FLANGE
95720-05300-00
Unavailable
