Partiron

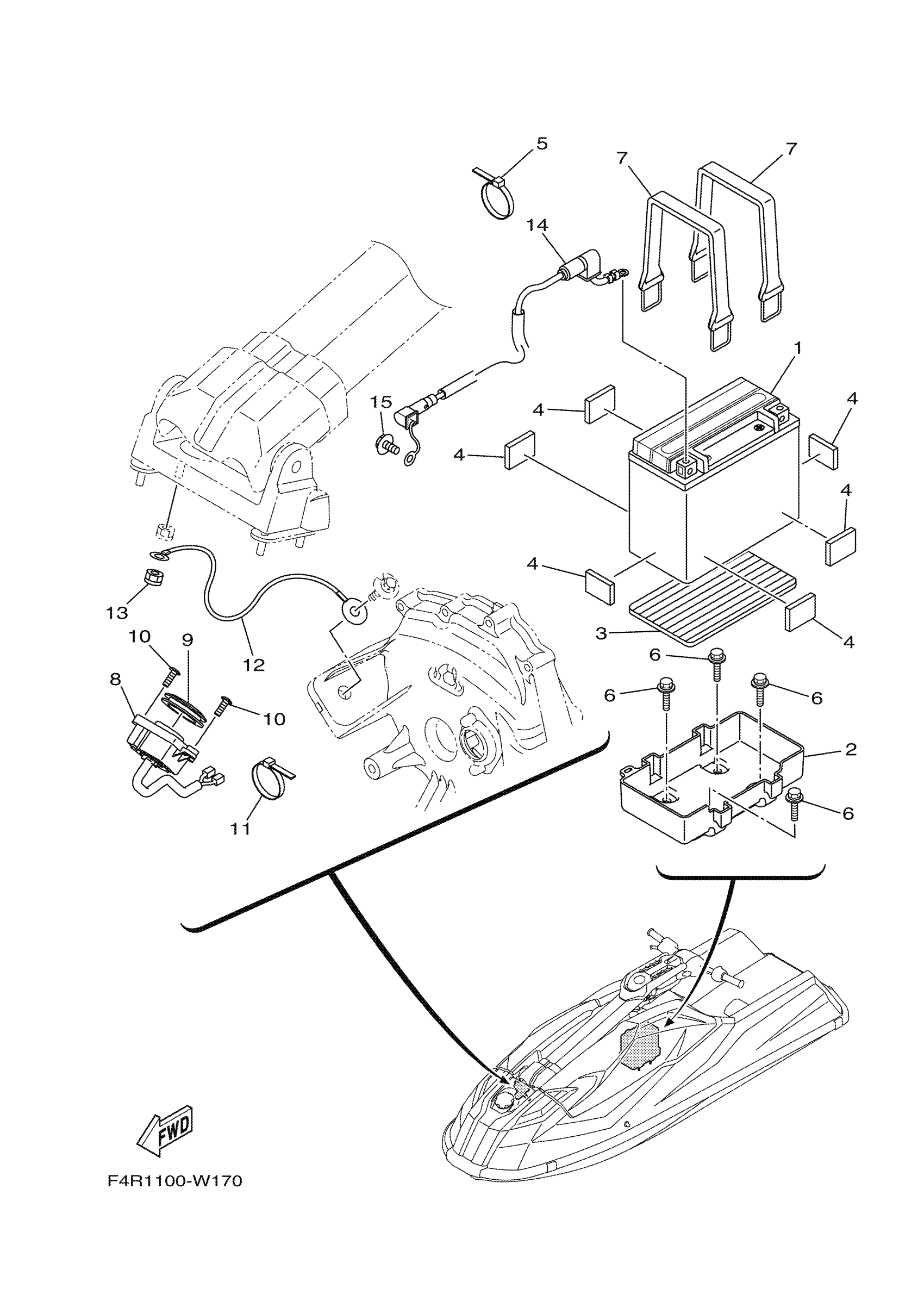

Yamaha SJ1050X (SUPER JET) F4R2 2022 ELECTRICAL 3 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$161.51

2

CASE, BATTERY

F4R-68211-00-00

Unavailable

3

PAD, BATTERY

F4R-68221-00-00

Unavailable

4

PAD, BATTERY 2

EU0-68221-30-00

$46.25

5

BAND (EU0)

90601-20009-00

$6.27

6

BOLT, WITH WASHER

90119-06309-00

$1.70

7

BAND,BATTERY

EU0-68218-04-00

$43.06

8

METER ASSY

F4R-6820A-00-00

Unavailable

9

PACKING

F4R-68244-00-00

Unavailable

10

BOLT

90111-06041-00

$5.86

11

BAND (EU0)

90601-20009-00

$6.27

12

WIRE, LEAD 3

F4R-82149-00-00

Unavailable

13

. NUT, SELF-LOCKING

95720-08300-00

$3.41

14

WIRE, MINUS LEAD

6GA-82116-00-00

$52.22

15

BOLT, WITH WASHER

97513-08514-00

$1.34
