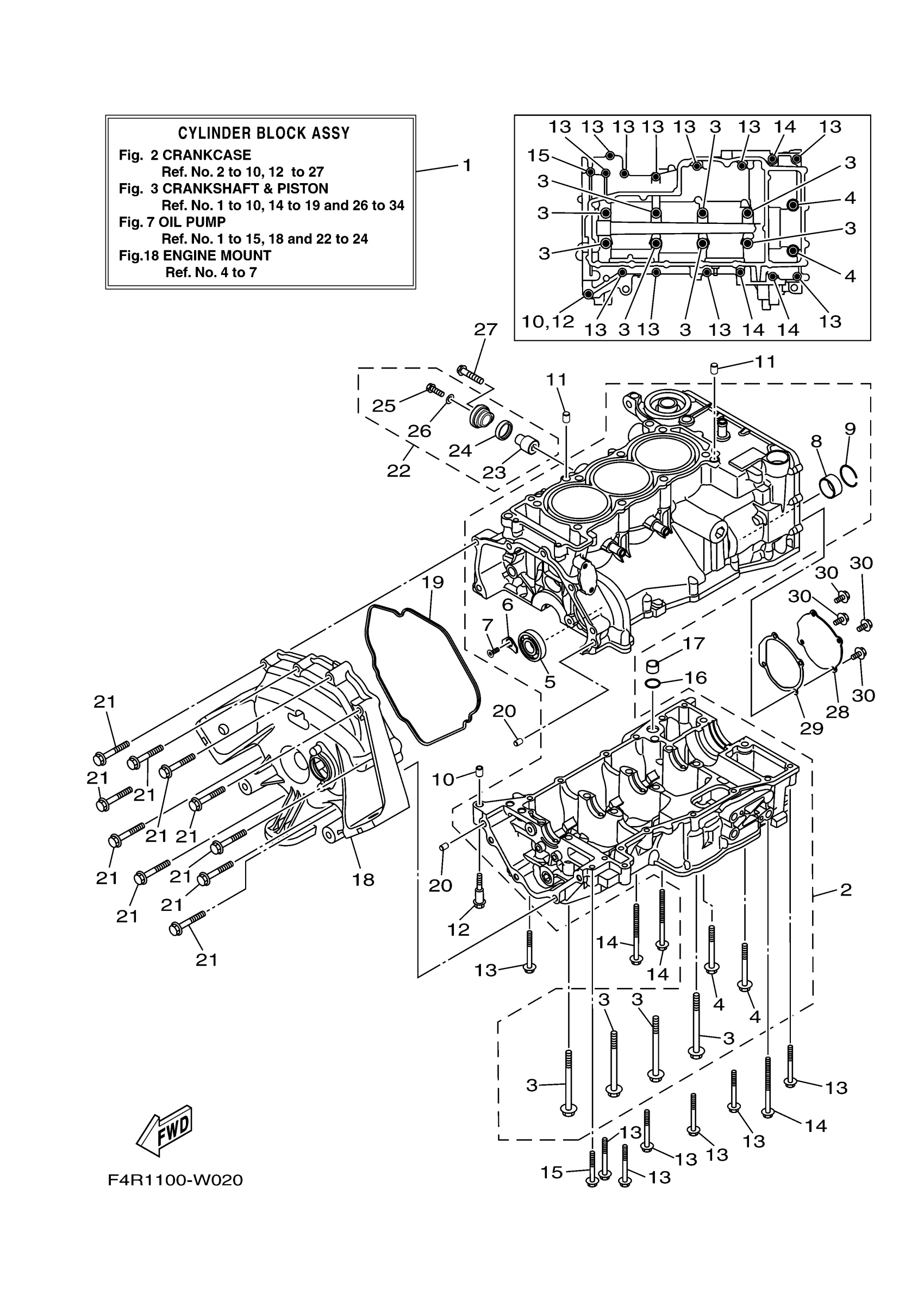

Yamaha SJ1050X (SUPER JET) F4R2 2022 CRANKCASE Diagram

#

Description
Price

1

CYLINDER BLOCK ASSY

99999-04611-00

Unavailable

2

CRANKCASE ASSY

99999-04612-00

Unavailable

3

BOLT, WITH WASHER

90119-09004-00

$8.56

4

BOLT, FLANGE(JN5)

95817-08070-00

$3.06

5

BEARING

93306-30323-00

$36.96

6

PLATE, BEARING COVER

4JT-15381-01-00

$9.82

7

SCREW, COUNTERSUNK

90151-06023-00

$6.09

8

BEARING 1

8ES-11428-01-00

Unavailable

9

CIRCLIP

93450-32152-00

$6.38

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

PIN, DOWEL(3VD)

99530-10114-00

$2.13

12

BOLT

90109-06308-00

$3.09

13

BOLT, FLANGE

95817-06055-00

$1.87

14

BOLT, FLANGE

95814-06085-00

$2.65

15

BOLT, FLANGE(4EB)

95814-06045-00

$2.38

16

. O-RING

93210-17010-00

$0.88

17

PIPE

8ES-13284-00-00

Unavailable

18

COVER, CRANKCASE 2

6EY-15421-00-00

$161.75

19

. GASKET, CRANKCASE COVER 2

6EY-15461-00-00

$15.19

20

PIN, DOWEL

99590-08012-00

Unavailable

21

BOLT, WITH WASHER

97513-08555-00

$1.70

22

ANODE COVER ASSY

69J-11301-11-00

Unavailable

23

. ANODE

68V-11325-02-00

$16.68

24

GROMMET, ANODE

67F-11328-01-00

$3.14

25

BOLT (689)

90105-06M07-00

Unavailable

26

. GASKET

90430-06M03-00

$2.85

27

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

28

PLATE AND GASKET, 2

99999-04357-00

Unavailable

29

. GASKET, 2

6EY-15463-01-00

$5.74

30

BOLT, FLANGE DEEP

95E34-06012-00

Unavailable
