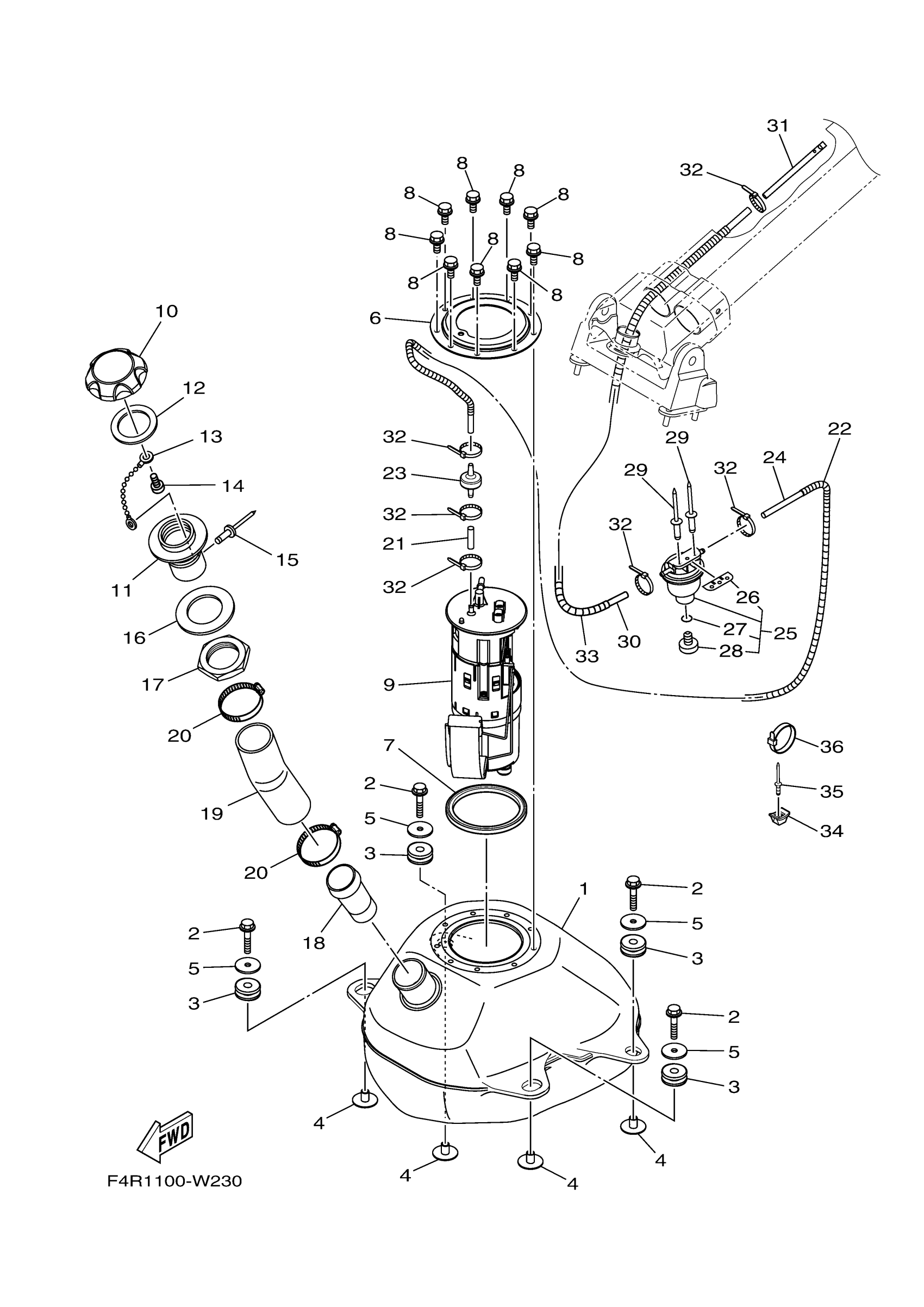

Yamaha SJ1050W (SUPER JET) F4R1 2021 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

F4R-67711-00-00

Unavailable

2

BOLT, WITH WASHER

90119-08904-00

$3.18

3

GROMMET

F4R-61338-00-00

$4.09

4

COLLER

F4R-67278-00-00

Unavailable

5

WASHER, PLATE

90201-08MA4-00

$8.82

6

RING

F4R-67773-00-00

Unavailable

7

PACKING, SEAL

F1B-67747-00-00

$16.66

8

BOLT, FLANGE(7HT)

95880-06010-00

$2.67

9

FUEL PUMP COMP.

F4R-13907-01-00

$580.29

10

CAP, FUEL FILLER

F2N-U7831-10-00

$14.94

11

SOCKET

GP7-U7833-11-00

$10.75

12

PACKING

GP7-U7832-01-00

$5.35

13

CHAIN BALL

GP7-U7835-00-00

$4.51

14

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

15

RIVET, BLIND

90267-329UR-00

$1.15

16

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

17

NUT, FUEL FILLER

GP7-6783F-A0-00

$21.95

18

TUBE

F4R-6773D-00-00

Unavailable

19

HOSE

F4R-67844-00-00

Unavailable

20

BAND, HOSE 55

90601-15573-00

$12.86

21

HOSE

90699-50100-00

$26.99

22

HOSE(64U)

90446-14M64-00

Unavailable

23

CHECK VALVE

F3Y-67767-A0-00

Unavailable

24

HOSE

90699-50135-00

Unavailable

25

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

26

. PLATE, FILTER

EW2-62142-00-00

$44.99

27

. PLUG, DRAIN

70R-24543-00-00

$9.08

28

. O-RING

70R-24489-00-00

$5.00

29

RIVET, BLIND(GA7)

90267-48949-00

Unavailable

30

HOSE

90699-50075-00

Unavailable

31

PIPE VENTILATION 2

EW2-62149-31-00

$10.99

32

CLAMP

90465-10098-00

$1.68

33

TUBE

EU0-67731-00-00

Unavailable

34

CLAMP COMP (EU0)

90600-91736-00

Unavailable

35

RIVET, SEALD

90267-48930-00

$2.27

36

BAND (EU0)

90601-20009-00

$6.36
