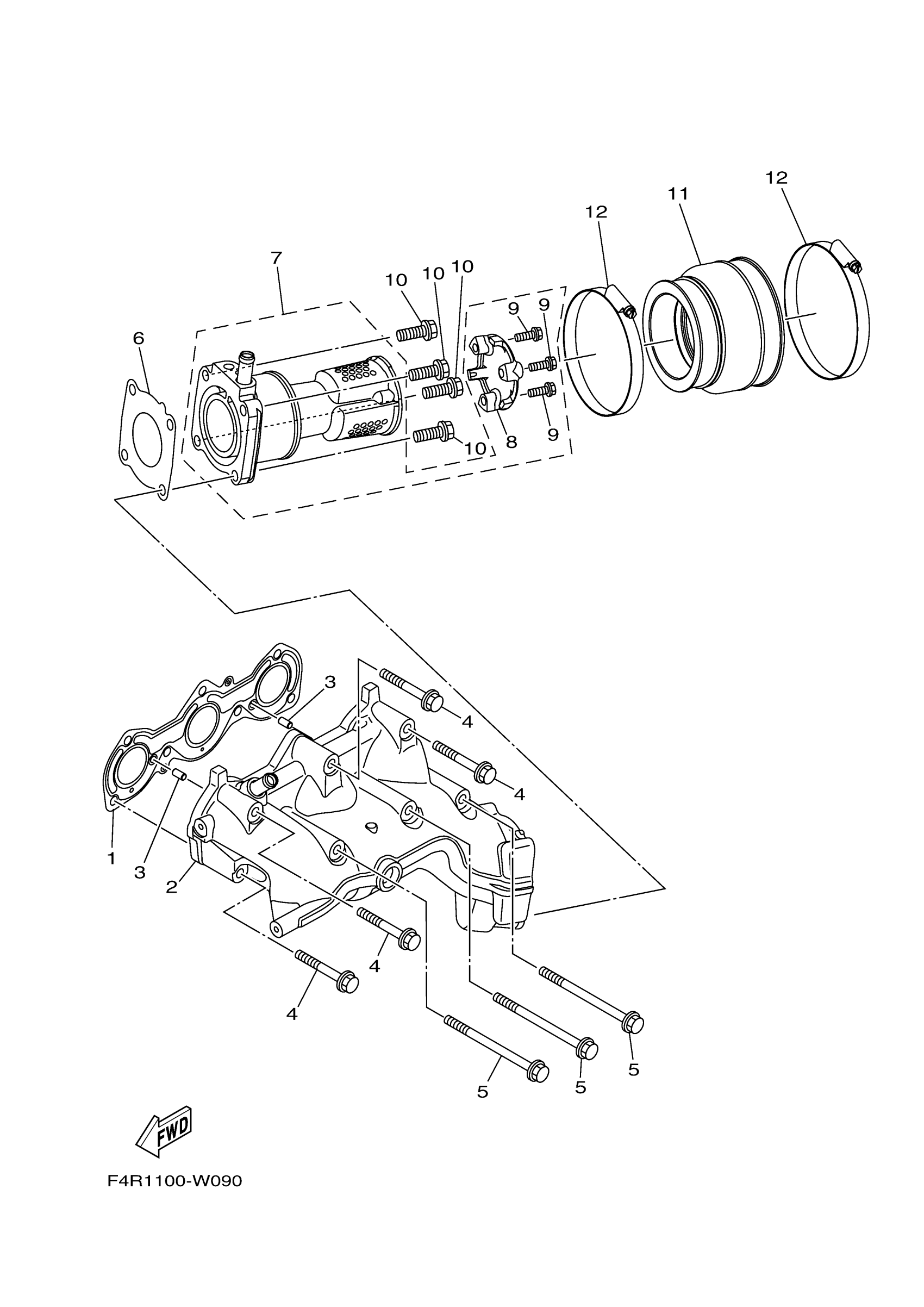

Yamaha SJ1050W (SUPER JET) F4R1 2021 EXHAUST 1 Diagram

. GASKET, EXHAUST PIPE

6GA-14613-00-00

$31.85

MUFFLER 1

6GA-14711-00-00

$522.71

PIN, DOWEL (614)

93606-12019-00

$3.05

BOLT, WITH WASHER

90119-08034-00

$3.33

BOLT, WITH WASHER

90119-08097-00

$5.18

. GASKET, MUFFLER DAMPER 1

6GA-14739-00-00

$7.40

PIPE, TAIL

6JF-14784-00-00

Unavailable

PLATE, SILENCER 6

6JF-1469W-00-00

Unavailable

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

BOLT, FLANGE (3JPE)

95024-08030-00

$9.99

PIPE, OUTLET

6JF-14752-00-00

Unavailable

HOSE CLAMP ASSY

90450-99015-00

$19.49
