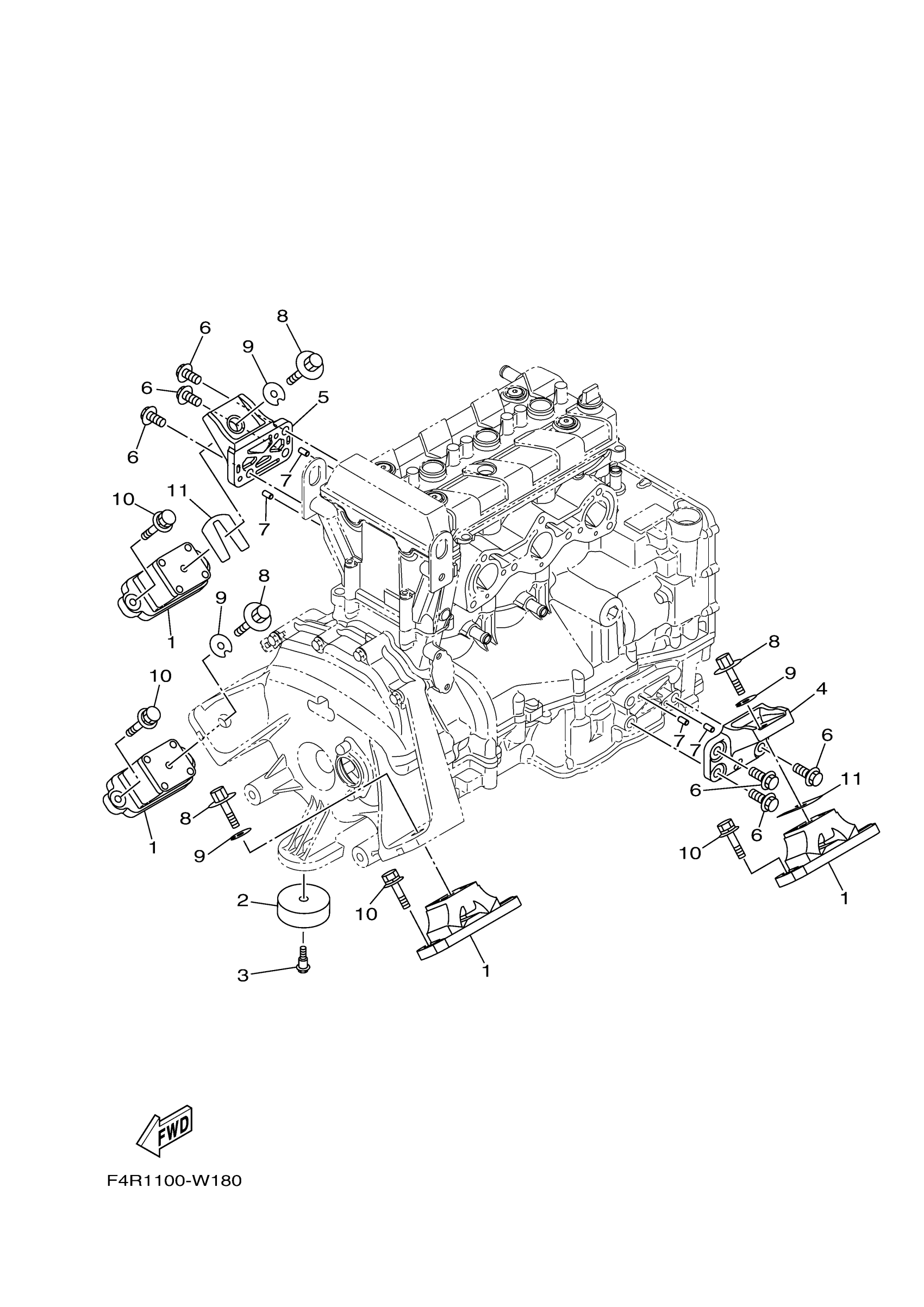

Yamaha SJ1050W (SUPER JET) F4R1 2021 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

6GA-44517-00-00

$48.63

2

STOPPER, LOWER MOUNT RUBBER

6EY-44574-00-00

$11.93

3

BOLT

90109-06M92-00

$5.22

4

BRACKET 1

6EY-41661-10-00

$46.25

5

BRACKET 2

6EY-41662-00-00

$46.25

6

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

7

PIN, DOWEL (614)

93606-12019-00

$3.50

8

BOLT, WITH WASHER

90119-08904-00

$3.02

9

PLATE

EU0-67324-00-00

$10.99

10

BOLT, WITH WASHER

90119-08904-00

$3.02

11

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

11

SHIM (T=1.0)

EU0-67354-D0-00

$3.88
