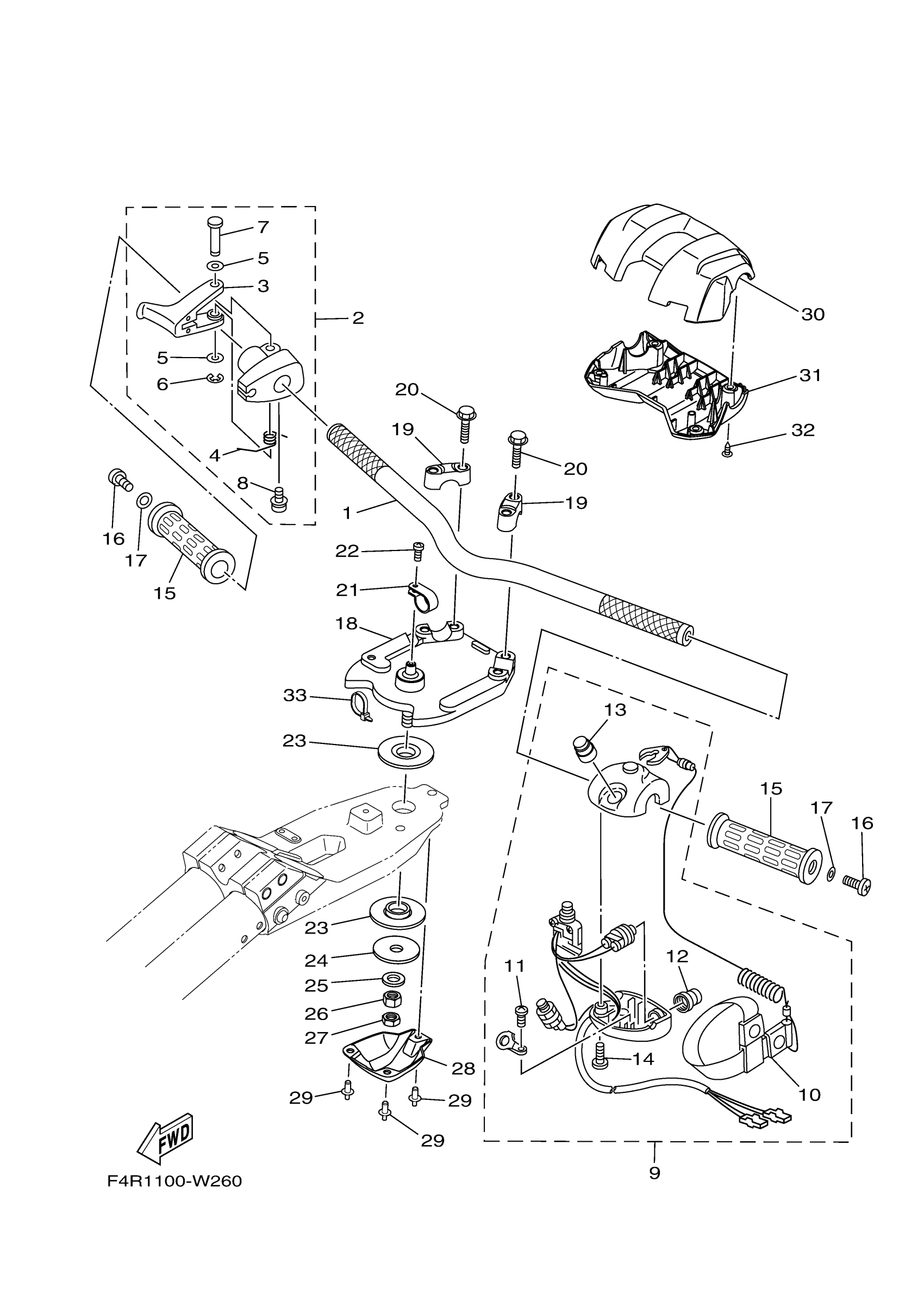

Yamaha SJ1050C F4R6 2026 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F4R-61552-10-00

Unavailable

2

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

3

LEVER, THROTTLE

F0D-67255-02-00

$27.26

4

. SPRING

EW2-67256-00-00

$6.36

5

WASHER, PLAIN (646)

92990-05600-00

Unavailable

6

CIRCLIP (EU0)

99080-04600-00

$1.70

7

. SHAFT

F0D-67257-00-00

$16.99

8

. BOLT, THROTTLE

F1X-6725F-01-00

$3.64

9

SWITCH BOX ASSY

F4R-68310-00-00

Unavailable

10

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

11

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

12

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

13

. START BUTTON COMP

FK7-68313-02-00

$11.31

14

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

15

GRIP, HANDLE 1

EW2-61553-00-00

$14.81

16

SCREW,TRASS HEAD (FJ0)

90149-05959-00

Unavailable

17

WASHER, PLATE

90201-05800-00

$0.65

18

COLUMN, STEERING

F4R-61541-00-00

Unavailable

19

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

20

BOLT, FLANGE (EW2)

90105-08902-00

Unavailable

21

CLIP, NYLON 17

90600-91728-00

$5.45

22

SCREW, BINDING (M01)

98980-04010-00

Unavailable

23

BEARING, COLUMN

EW2-61417-00-00

$10.74

24

WASHER, STEERING

EW2-61419-00-00

$9.08

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

NUT

95380-12600-00

$8.61

27

NUT

95380-12700-00

$6.75

28

COVER

F4R-61595-00-00

Unavailable

29

RIVET

90269-06019-00

Unavailable

30

PAD, STEERING 1

F4R-6143D-01-00

Unavailable

31

PAD, STEERING 2

F4R-6143E-01-00

Unavailable

32

SCREW

90149-05937-00

$1.09

33

CLAMP (6E5)

90465-13M11-00

Unavailable
