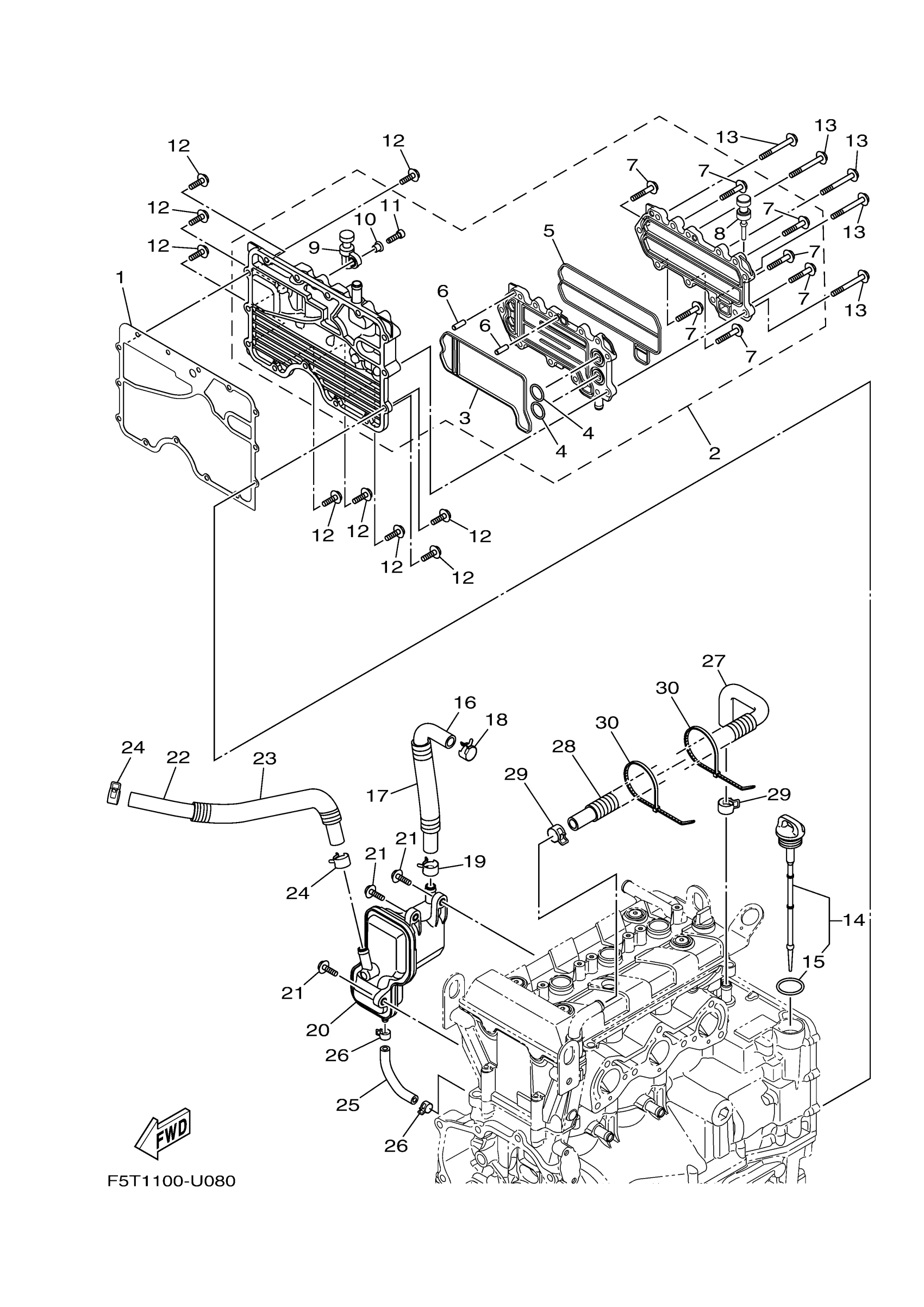

Yamaha SJ1050C F4R6 2026 OIL COOLER Diagram

#

Description
Price

1

. GASKET

6EY-15453-01-00

$5.91

2

OIL COOLER ASSY

6EY-13470-03-00

Unavailable

3

. GASKET, MANIFOLD

6EY-13556-10-00

Unavailable

4

O-RING (5Y1)

93210-19522-00

$5.47

5

. GASKET

6EY-13557-10-00

Unavailable

6

. PIN, DOWEL

93606-19M23-00

$2.43

7

BOLT, FLANGE

95814-06035-00

Unavailable

8

GROMMET(6R7)

90480-06M46-00

$9.31

9

. GROMMET

6S5-81364-11-00

$5.00

10

COLLAR

90387-06M05-00

$6.45

11

. BOLT

91380-06020-00

$1.86

12

BOLT, FLANGE

95814-06020-00

$6.22

13

BOLT, FLANGE

95814-06055-00

$2.63

14

PLUG, OIL LEVEL

6EY-15362-10-00

$10.24

15

O-RING (437)

93210-24235-00

$5.34

16

PIPE, BREATHER 1

6EY-11166-10-00

$12.86

17

HOSE, WITH SPRING

90447-19004-00

Unavailable

18

CLIP

90467-200A3-00

$5.92

19

CLIP

90467-170A4-00

$2.04

20

SEPERATOR, OIL

6EY-11164-00-00

$46.95

21

BOLT (6E0)

90105-06M15-00

Unavailable

22

HOSE (L420)

90445-18020-00

$10.99

23

HOSE (L350)

90446-24MF4-00

$8.32

24

CLIP

90467-170A4-00

$2.04

25

PIPE, BREATHER 4

6EY-11125-00-00

$5.00

26

CLIP

90467-110A1-00

$4.07

27

PIPE, BREATHER 3

6EY-11126-10-00

$20.34

28

TUBE (L300)

90447-19014-00

$5.14

29

CLIP

90467-170A4-00

$2.04

30

CLAMP(3XW)

90464-35132-00

Unavailable
