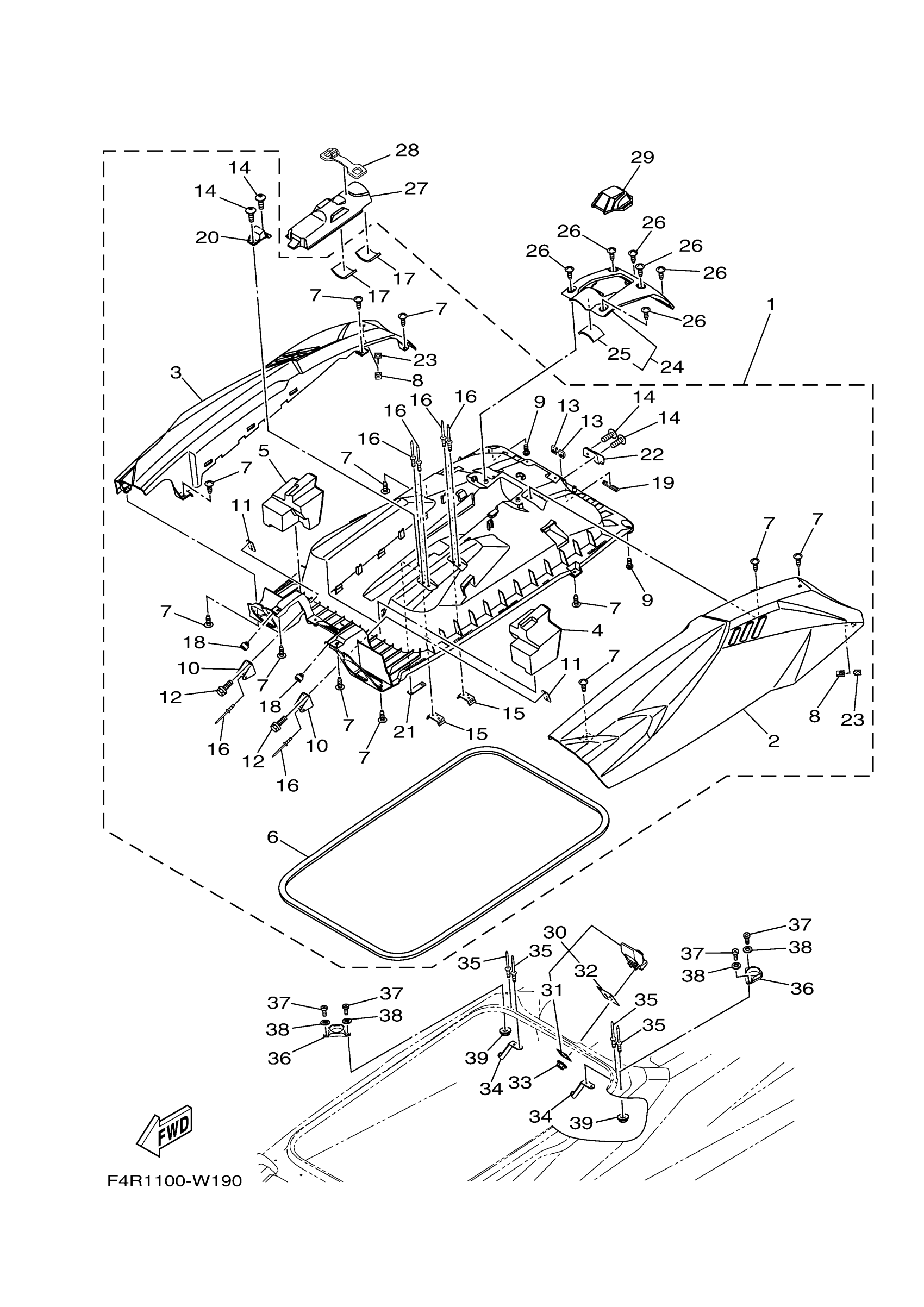

Find the part on the Engine Hatch diagram for your 2026 Yamaha SJ1050C F4R6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Yamaha SJ1050C F4R6 Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE ROOM HATCH ASSY

F4R-6517A-00-P0

1
Out of stock

2

HATCH,ENGINE ROOM

F4R-65161-00-P0

—
Out of stock

3

LID, ENGINE HATCH

F4R-65171-00-P0

—
Out of stock

4

. FLOTATION, HATCH 1

F4R-6514G-00-00

1
Out of stock

5

. FLOTATION, HATCH 2

F4R-6514H-00-00

1
Out of stock

6

PACKING

F4R-62664-01-00

1
Out of stock

7

SCREW, TAPPING(4KY)

97780-50016-00

1
Out of stock

8

. NUT, SPRING

90183-051A5-00

1
Out of stock

9

BOLT, WITH WASHER

97595-05516-00

1
Out of stock

10

STOPPER, HATCH 2

F4R-65136-00-00

—
Out of stock

11

PLATE, HATCH STOPP

F4R-65137-00-00

—
Out of stock

12

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

1
Out of stock

13

NUT, SPRING(GJ3)

90183-06902-00

1
Out of stock

14

BOLT

90111-06041-00

1
Out of stock

15

. CLAMP

GM6-64256-00-00

1
Out of stock

16

RIVET, BLIND

90267-48941-00

—
Out of stock

17

PAD,HATCH 1

F4R-6517M-00-00

—
Out of stock

18

STOPPER, MAIN STAND

4N0-27114-00-00

—
Out of stock

19

. TRIM 1

GM6-6516C-00-00

1
Out of stock

20

STOPPER

F4R-65157-00-00

—
Out of stock

21

PLATE

F4R-65193-00-00

—
Out of stock

22

BRACKET

F4R-65372-00-00

—
Out of stock

23

PLATE, FIX

F4R-65175-00-00

—
Out of stock

24

ENGINE HATCH COVER

F4R-6516M-00-00

—
Out of stock

25

PAD,HATCH 1

F4R-6517M-00-00

—
Out of stock

26

SCREW

90149-05937-00

1
Out of stock

27

COVER

F4R-6516W-00-00

—
Out of stock

28

BAND, BOARDING LAD

F4R-65191-00-00

—
Out of stock

29

DAMPER, POLE

F4R-6514B-00-00

—
Out of stock

30

HATCH LOCK ASSY. 2

F4R-62840-01-00

—
Out of stock

31

. PLATE, HATCH LOCK

EW2-62846-00-00

1
Out of stock

32

. PACKING, HATCH LOCK

F4R-6284E-00-00

1
Out of stock

33

NUT, FLANGE

95720-05300-00

1
Out of stock

34

HOOK C

F4R-6756C-00-00

—
Out of stock

35

RIVET, SEALD

90267-48930-00

1
Out of stock

36

PROTECTOR 1

F4R-6514M-00-00

—
Out of stock

37

SCREW (FJ0)

90149-05960-00

—
Out of stock

38

. WASHER, PLAIN

92990-05200-00

1
Out of stock

39

NUT, FLANGE

95720-05300-00

1
Out of stock
