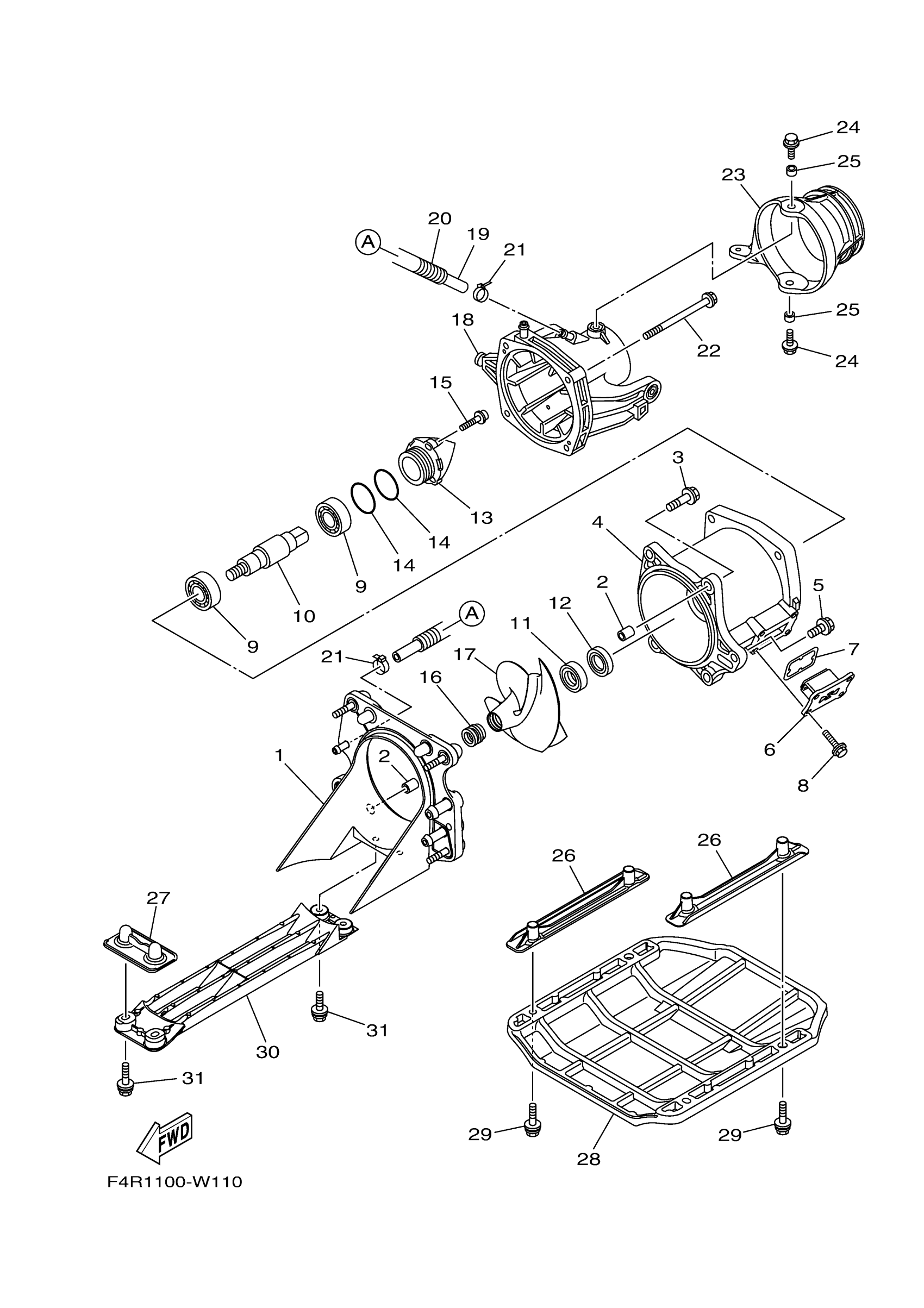

Yamaha SJ1050B F4R5 2025 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6JF-G5831-00-00

$144.76

2

PIN, DOWEL(4JT)

99590-14016-00

$3.50

3

BOLT, WITH WASHER

90119-10819-00

$3.28

4

HOUSING, IMPELLER

6GA-R1312-02-00

$169.19

5

BOLT, WITH WASHER

90119-10066-00

$2.61

6

FILTER

6GA-G6882-00-00

Unavailable

7

. O-RING

6GA-G2414-00-00

$1.01

8

BOLT,WITH WASHER

90119-06890-00

$1.15

9

BEARING

93306-255X7-00

$15.07

10

SHAFT, DRIVE 4

6GA-G5514-00-00

$43.83

11

OIL SEAL(6R7)

93102-25M34-00

$13.85

12

OIL SEAL(6R7)

93101-25M50-00

Unavailable

13

CAP

6EX-R1326-10-00

$7.01

14

. O-RING

93210-44003-00

$2.58

15

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

16

CAP, IMPELLER

6DU-51319-00-00

$18.99

17

IMPELLER

6JF-R1321-00-00

$377.60

18

NOZZLE

6GA-R1318-00-00

Unavailable

19

HOSE (L290)

90445-14812-00

Unavailable

20

HOSE (L260)

90446-20M13-00

$13.99

21

CLAMP

90465-10098-00

$2.24

22

BOLT, WITH WASHER

90119-08881-00

Unavailable

23

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$47.75

24

BOLT, WITH WASHER

90119-08841-00

$1.07

25

COLLAR(6R7)

90387-08M06-00

Unavailable

26

BRACKET 2

F2X-68572-A0-00

Unavailable

27

BRACKET, 3

F2S-68577-A0-00

Unavailable

28

PLATE 2

F4R-6273B-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08829-00

$4.09

30

SCREEN, INTAKE

F4R-51333-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08038-00

$4.72
