Partiron

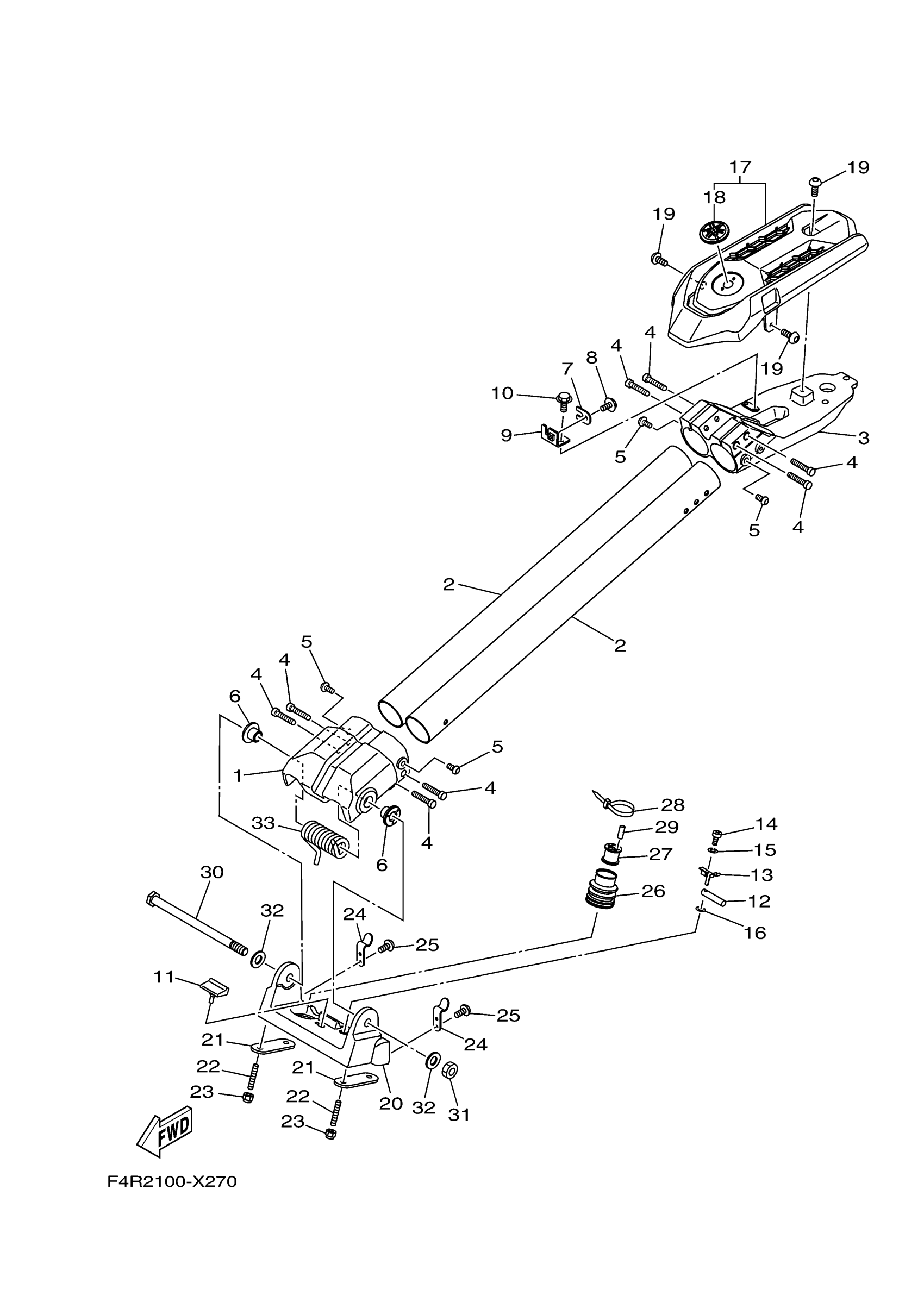

Yamaha SJ1050A (SUPER JET) F4R4 2024 STEERING 2 Diagram

#

Description
Price

1

POLE 1

F4R-6492B-00-00

$270.57

2

POLE 2

F4R-6492C-00-00

$114.69

3

POLE 3

F4R-6492D-00-00

$302.93

4

BOLT

91380-08040-00

Unavailable

5

SCREW

90149-08291-00

$4.49

6

BUSH

EW2-61344-01-00

$7.97

7

STOPPER, CABLE

FX1-61468-00-00

$11.01

8

BOLT, WITH WASHER

90119-06913-00

$1.27

9

BRACKET,STOPPER CA

F4R-61467-00-00

Unavailable

10

BOLT, FLANGE(JL8)

95880-06016-00

$3.57

11

STOPPER, POLE

F4R-61337-00-00

Unavailable

12

PIN STOPPER

F4R-61142-00-00

$11.75

13

HOLDER, STOPPER

F4R-61339-00-00

$11.75

14

SCREW,PAN HEAD (646)

98580-05012-00

$5.35

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

WASHER, PLATE

90202-06004-00

Unavailable

17

STEERING PAD COMP

F4R-6142A-00-00

Unavailable

18

EMBLEM

1RC-2413B-02-00

Unavailable

19

BOLT

90111-06041-00

Unavailable

20

BRACKET,PIVOT

F4R-6133C-00-00

Unavailable

21

PLATE, BRACKET

F4R-6133B-00-00

Unavailable

22

BOLT, STUD

F4R-67535-00-00

Unavailable

23

. NUT, SELF-LOCKING

95720-08300-00

$3.41

24

STOPPER, HATCH 1

F4R-65135-00-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05037-00

Unavailable

26

GROMMET

FX1-61338-00-00

$42.63

27

PACKING, CABLE

EW2-61465-00-00

$13.96

28

BAND (EU0)

90601-20009-00

$6.18

29

SEAL

F4R-62723-00-00

Unavailable

30

SHAFT,PIVOT

FX1-6134L-00-00

$94.10

31

. NUT

95380-14700-00

$8.56

32

WASHER, PLAIN

92990-14200-00

Unavailable

33

SPRING, PIVOT

F4R-61391-00-00

Unavailable
