Description

Price

1

STRAINER, BILGE

F4R-6761D-00-00

$28.99

2

BASE

F4R-67618-00-00

$23.99

3

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

4

HOSE

90445-14M03-00

Unavailable

5

HOSE(GK5)

90446-20M65-00

$7.49

6

JOINT, HOSE

6K8-51162-00-00

Unavailable

7

CLAMP (6E5)

90465-13M11-00

$8.49

8

HOSE (L1300)

90445-14M22-00

Unavailable

9

HOSE(65R)

90446-20M70-00

$10.49

10

CLAMP

90465-06028-00

Unavailable

11

NUT, JOINT

F4R-67772-00-00

$5.99

12

WASHER, PLATE

90201-10060-00

Unavailable

13

NUT, NYLON (FN8)

95720-10300-00

$4.42

14

CLAMP COMP (EU0)

90600-91736-00

$8.49

15

RIVET, SEALD

90267-48930-00

Unavailable

16

NYLON CLIP 1(GD0)

90601-20016-00

Unavailable

17

STERN EYE

F2N-61628-A1-00

Unavailable

18

PLATE A

F3D-64953-00-00

Unavailable

19

PACKING

F4R-61653-00-00

Unavailable

20

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

21

DRAIN PLUG ASSY.

F4R-62280-00-00

Unavailable

22

. O-RING

EU0-62283-00-00

Unavailable

23

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

24

CLAMP COMP (EU0)

90600-91736-00

$8.49

25

RIVET, SEALD

90267-48930-00

Unavailable

26

BAND (EU0)

90601-20009-00

Unavailable

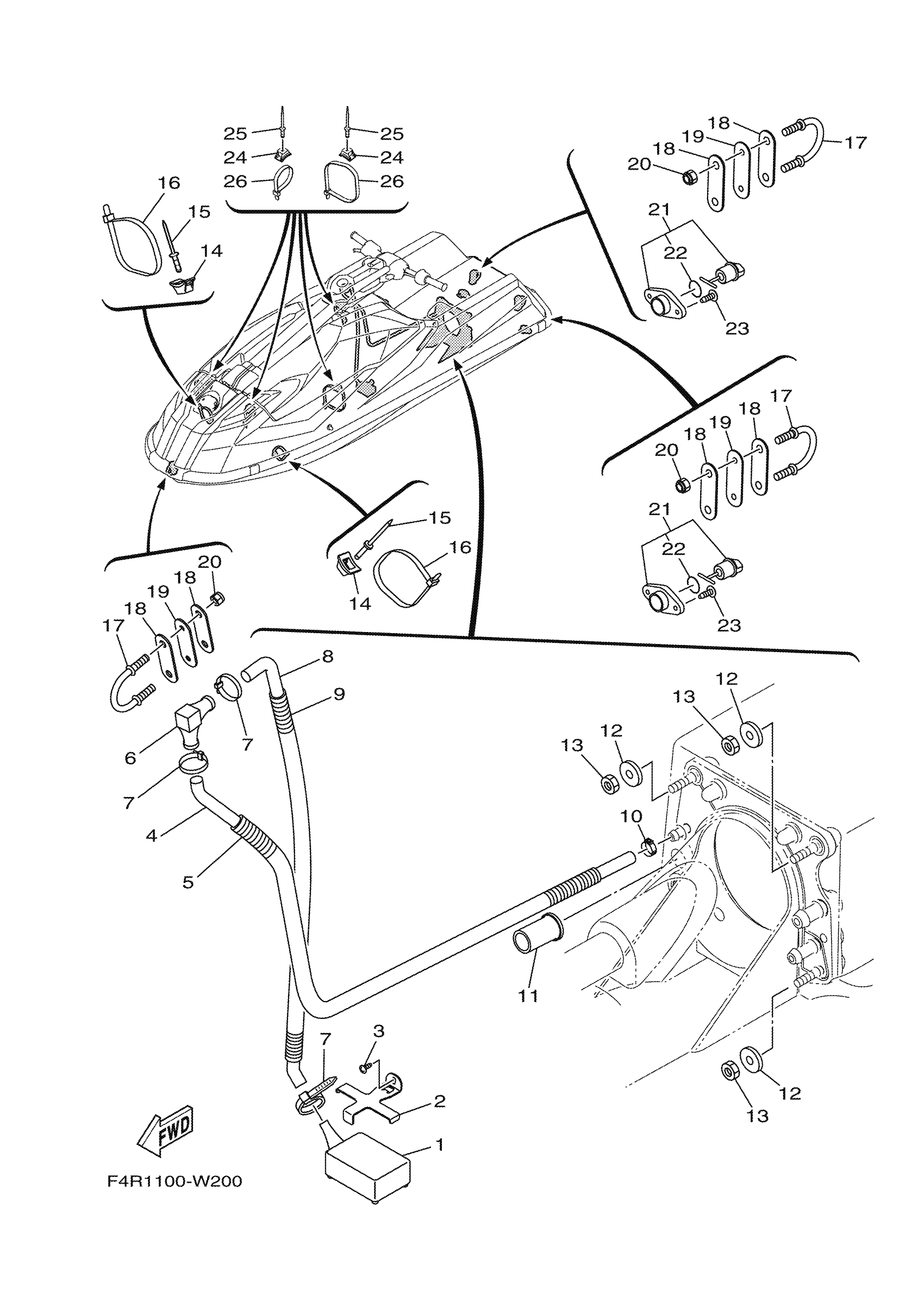

Yamaha SJ1050A (SUPER JET) F4R4 2024 HULL & DECK Diagram

STRAINER, BILGE

BASE

SCREW, PANHEAD TAPPING (682)

HOSE

HOSE(GK5)

JOINT, HOSE

CLAMP (6E5)

HOSE (L1300)

HOSE(65R)

CLAMP

NUT, JOINT

WASHER, PLATE

NUT, NYLON (FN8)

CLAMP COMP (EU0)

RIVET, SEALD

NYLON CLIP 1(GD0)

STERN EYE

PLATE A

PACKING

. NUT, SELF-LOCKING

DRAIN PLUG ASSY.

. O-RING

SCREW, PANHEAD TAPPING (682)

CLAMP COMP (EU0)

RIVET, SEALD

BAND (EU0)
