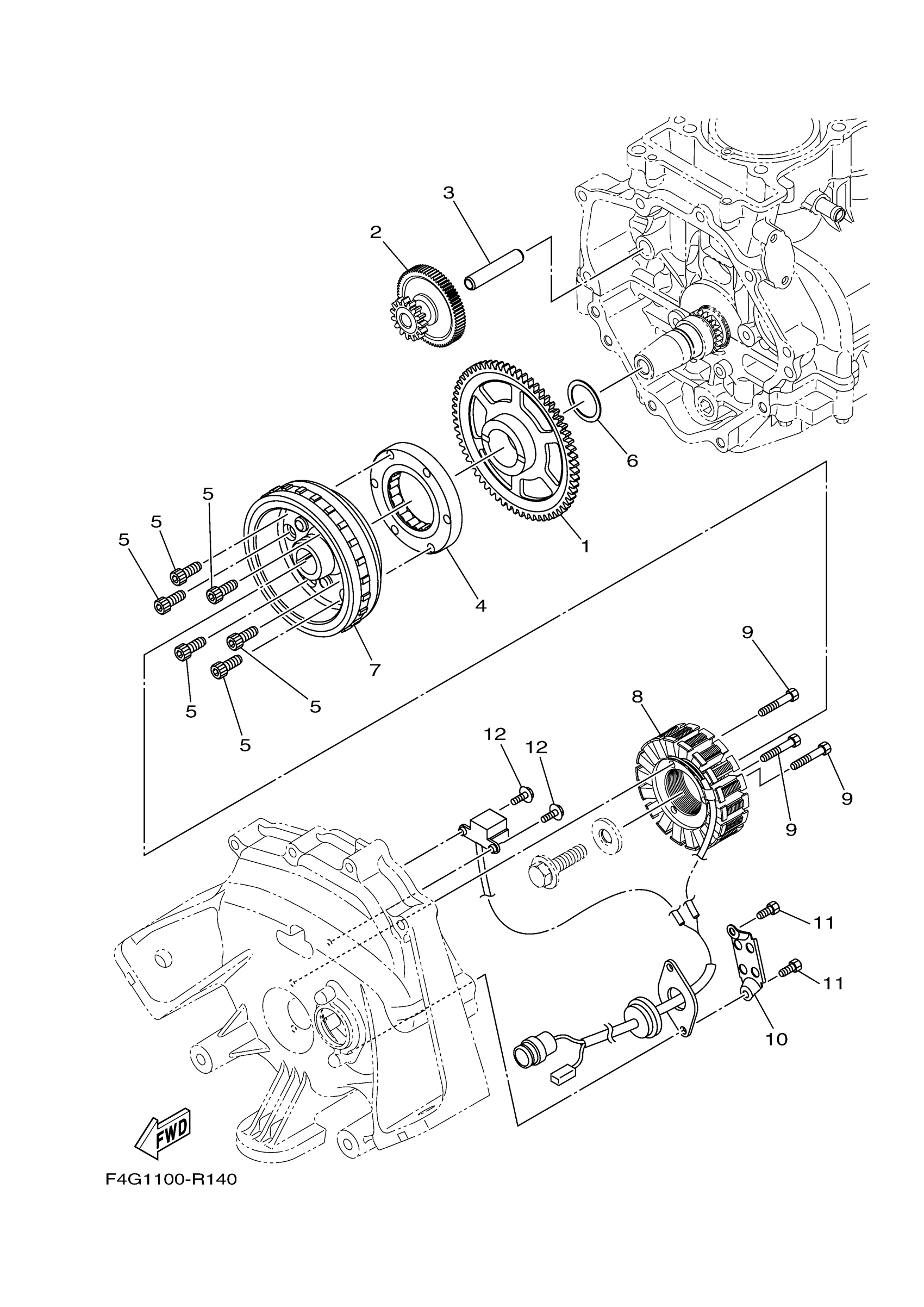

Yamaha SJ1050A (SUPER JET) F4R4 2024 GENERATOR Diagram

#

Description
Price

1

GEAR 3

8FA-15515-00-00

$142.87

2

GEAR, IDLER 1

2HC-15512-00-00

$95.72

3

SHAFT 1

8ES-15521-00-00

$7.18

4

STARTER ONE-WAY ASSY

6EY-15590-00-00

$122.37

5

BOLT, SOCKET

91317-08020-00

$2.19

6

WASHER, PLATE

90201-30013-00

$3.30

7

ROTOR ASSY

6EY-81450-01-00

$408.94

8

STATOR ASSY

6EY-81410-00-00

$361.18

9

BOLT,SOCKET

91317-06035-00

$3.35

10

CLAMP

60E-81328-00-00

$7.16

11

BOLT,SOCKET

91317-06014-00

$6.57

12

BOLT, WITH WASHER

97513-05514-00

$3.58
