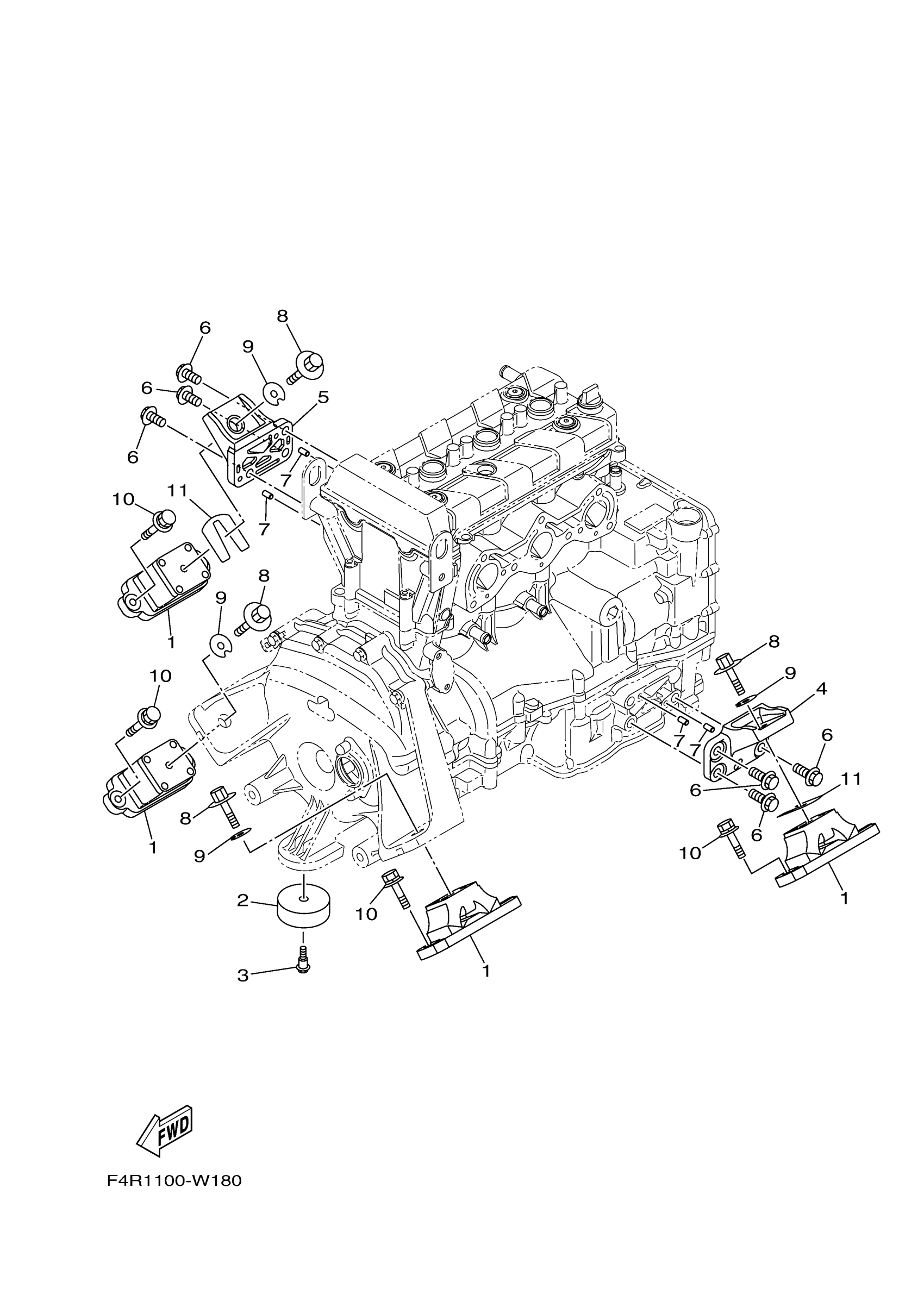

Yamaha SJ1050A (SUPER JET) F4R4 2024 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

6GA-44517-00-00

$63.62

2

STOPPER, LOWER MOUNT RUBBER

6EY-44574-00-00

$11.99

3

BOLT

90109-06M92-00

$5.03

4

BRACKET 1

6EY-41661-10-00

$46.49

5

BRACKET 2

6EY-41662-00-00

$46.49

6

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

BOLT, WITH WASHER

90119-08904-00

$3.18

9

PLATE

EU0-67324-00-00

$8.14

10

BOLT, WITH WASHER

90119-08904-00

$3.18

11

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

11

SHIM (T=1.0)

EU0-67354-D0-00

$4.09
