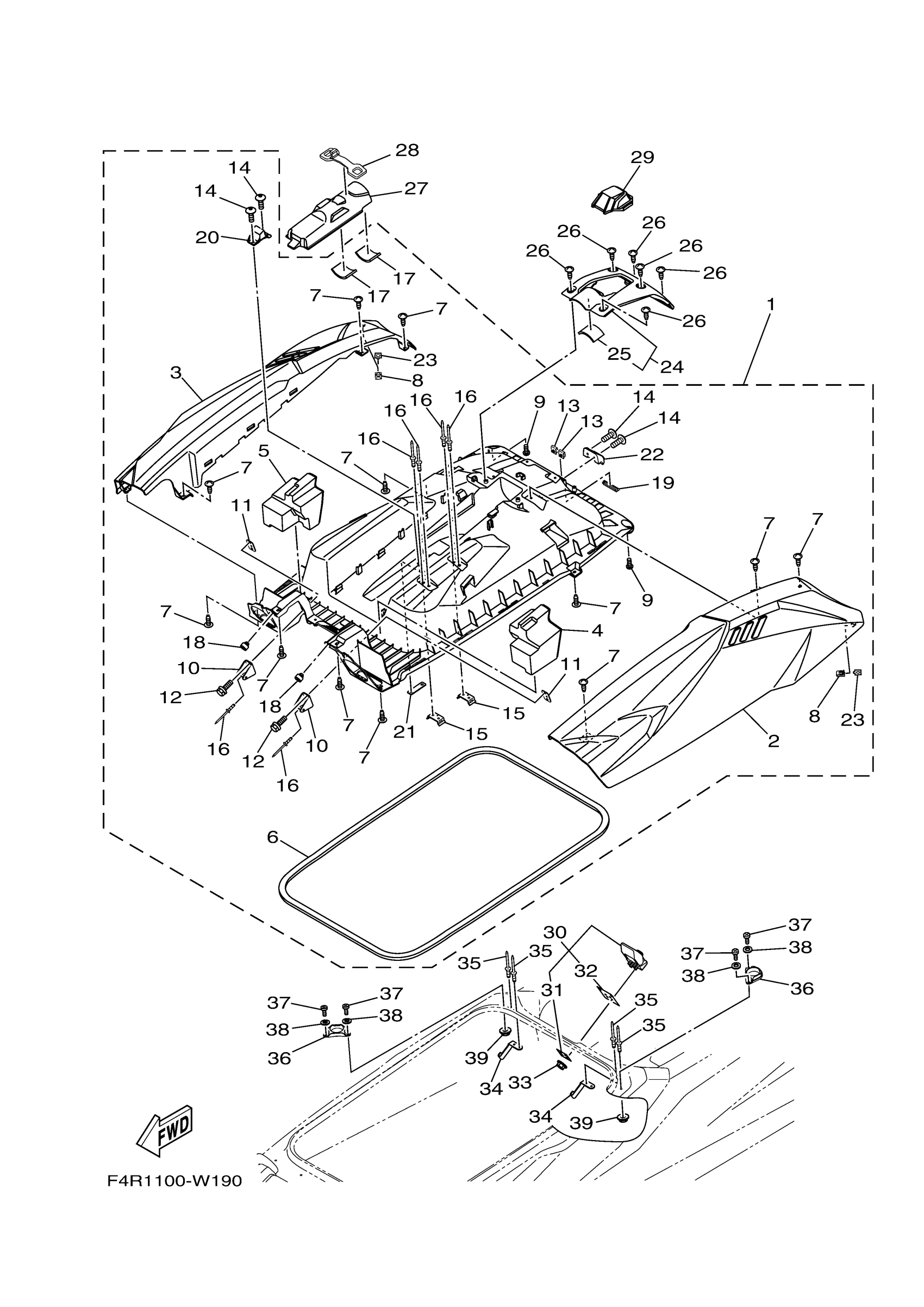

Yamaha SJ1050A (SUPER JET) F4R4 2024 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE ROOM HATCH ASSY

F4R-6517A-00-P0

$2,066.65

2

HATCH,ENGINE ROOM

F4R-65161-00-P0

Unavailable

3

LID, ENGINE HATCH

F4R-65171-00-P0

Unavailable

4

. FLOTATION, HATCH 1

F4R-6514G-00-00

Unavailable

5

. FLOTATION, HATCH 2

F4R-6514H-00-00

Unavailable

6

PACKING

F4R-62664-01-00

$206.05

7

SCREW, TAPPING(4KY)

97780-50016-00

$1.55

8

. NUT, SPRING

90183-051A5-00

$7.15

9

BOLT, WITH WASHER

97595-05516-00

Unavailable

10

STOPPER, HATCH 2

F4R-65136-00-00

Unavailable

11

PLATE, HATCH STOPP

F4R-65137-00-00

Unavailable

12

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

13

NUT, SPRING(GJ3)

90183-06902-00

$8.53

14

BOLT

90111-06041-00

$5.86

15

. CLAMP

GM6-64256-00-00

$8.32

16

RIVET, BLIND

90267-48941-00

Unavailable

17

PAD,HATCH 1

F4R-6517M-00-00

Unavailable

18

STOPPER, MAIN STAND

4N0-27114-00-00

Unavailable

19

. TRIM 1

GM6-6516C-00-00

$3.64

20

STOPPER

F4R-65157-00-00

Unavailable

21

PLATE

F4R-65193-00-00

Unavailable

22

BRACKET

F4R-65372-00-00

Unavailable

23

PLATE, FIX

F4R-65175-00-00

Unavailable

24

ENGINE HATCH COVER

F4R-6516M-00-00

Unavailable

25

PAD,HATCH 1

F4R-6517M-00-00

Unavailable

26

SCREW

90149-05937-00

$1.09

27

COVER

F4R-6516W-00-00

Unavailable

28

BAND, BOARDING LAD

F4R-65191-00-00

Unavailable

29

DAMPER, POLE

F4R-6514B-00-00

Unavailable

30

HATCH LOCK ASSY. 2

F4R-62840-01-00

Unavailable

31

. PLATE, HATCH LOCK

EW2-62846-00-00

$5.45

32

. PACKING, HATCH LOCK

F4R-6284E-00-00

Unavailable

33

NUT, FLANGE

95720-05300-00

$1.28

34

HOOK C

F4R-6756C-00-00

Unavailable

35

RIVET, SEALD

90267-48930-00

$2.27

36

PROTECTOR 1

F4R-6514M-00-00

Unavailable

37

SCREW (FJ0)

90149-05960-00

Unavailable

38

. WASHER, PLAIN

92990-05200-00

$4.29

39

NUT, FLANGE

95720-05300-00

$1.28
