TRANSMISSION/CHANGE DRUM

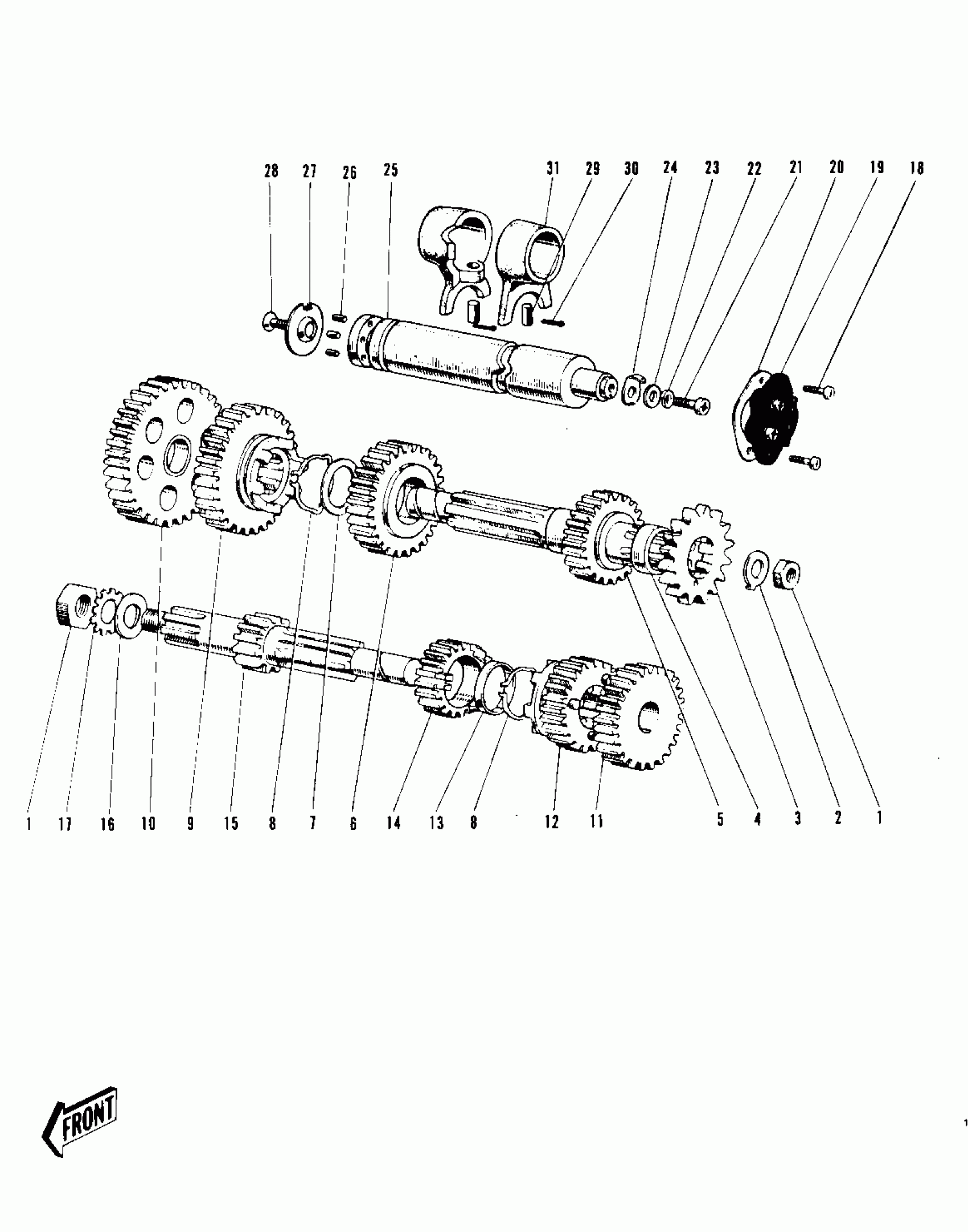

Kawasaki Sidewinder TRANSMISSION/CHANGE DRUM Diagram
#
1
NUT,12MM
92016-024
$5.86
1
NUT,12MM
92016-024
Unavailable
2
WASHER LOCK 12MM
92024-002
$5.23
2
ENGINE SPROCKET 15T
13144-028
Unavailable
2
ENGINE SPROCKET 14T
13144-033
Unavailable
2
ENGINE SPROCKET 16T
13144-034
Unavailable
4
SPACER ENG SPROCKET
92027-009
$3.83
4
COLLAR,ENGINE SPROCKET,L=13.7
92027-1595
Unavailable
5
SHAFT OUTPUT
13128-019
Unavailable
6
3RD GEAR OUTPUT SHAFT
13133-014
Unavailable
7
WASHER 22MM
92022-106
$4.60
8
RING-SNAP,20X25.5X1.2
92033-025
$4.96
8
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
9
2ND GEAR OUTPUT SHAFT
13131-018
Unavailable
10
LOW GEAR OUTPUT SHAFT
13129-023
Unavailable
11
TOP GEAR DRIVE SHAFT
13136-021
Unavailable
12
3RD GEAR DRIVE SHAFT
13132-013
Unavailable
13
SPACER DR SHT 2ND GER
92027-083
$3.44
14
2ND GEAR DRIVE SHAFT
13130-016
Unavailable
15
SHAFT DRIVE
13127-018
Unavailable
16
WASHER,12.5X30X0.8
92022-105
$5.47
17
WASHER-TOOTHED,12MM
464H1200
$4.60
18
SCREW PAN HEAD 5X16
220B0516
$2.06
18
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
19
SWITCH,NEUTRAL
13151-1003
Unavailable
19
SWITCH,NEUTRAL
13151-1003
Unavailable
20
GASKET,NEUTRAL SWITCH
13146-002
$4.35
20
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
21
UNAVAILABLE IN PRICE BOOK
92011-003
Unavailable
21
SCREW-PAN-CROS,6X16
220B0616
Unavailable
22
WASHER SPRING 6MM
461F0600
$0.69
23
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
24
ROTOR,TOP & NEUTRAL
21007-1003
$7.62
24
ROTOR,TOP & NEUTRAL
21007-1003
Unavailable
25
DRUM GEAR CHANGE
13141-014
Unavailable
26
PIN GEAR CHANGE DRUM
92043-011
$4.05
27
PLATE CHANGE DRUM PIN
13142-002
Unavailable
28
SCREW CNTSNK HD 6X16
212B0616
Unavailable
29
PIN SELECT FORK GUIDE
92043-005
Unavailable
30
PIN-COTTER,3.0X20
550D3020
$1.78
31
UNAVAILABLE IN PRICE BOOK
13140-015
Unavailable
31
FORK SELECTOR
13140-020
Unavailable
