Description

Price

1

OIL PUMP ASSY

16082-010

$123.02

2

CHECK VALVE

16087-002

$49.13

3

BOLT BANJO 8X21

92060-014

Unavailable

3

BOLT BANJO 8X21

92060-014

Unavailable

4

CLAMP OIL PIPE

92037-019

$2.68

5

GASKET,OIL PUMP

11060-1160

$5.17

6

GEAR OIL PUMP

16085-003

$15.98

7

PIPE OIL

92059-049

$0.71

8

SCREW-PAN-CROS

220B0514

$4.04

8

SCREW-PAN-CROS

220B0514

$4.04

9

SCREW-PAN-CROS

220B0528

$1.52

9

SCREW-PAN-CROS

220B0528

$1.52

10

WOODRUFF KEY

510A2500

$7.37

11

GASKET 8MM

751P0800

$1.96

12

NUT 6MM

311B0600

$0.93

13

WASHER SPRING 6MM

461F0600

$0.69

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

15

"0" RING,HOUSING

16088-001

Unavailable

16

"0" RING,WORM GEAR

16090-001

Unavailable

17

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$10.39

18

SPRING OIL PUMP LEVER

16093-001

$3.89

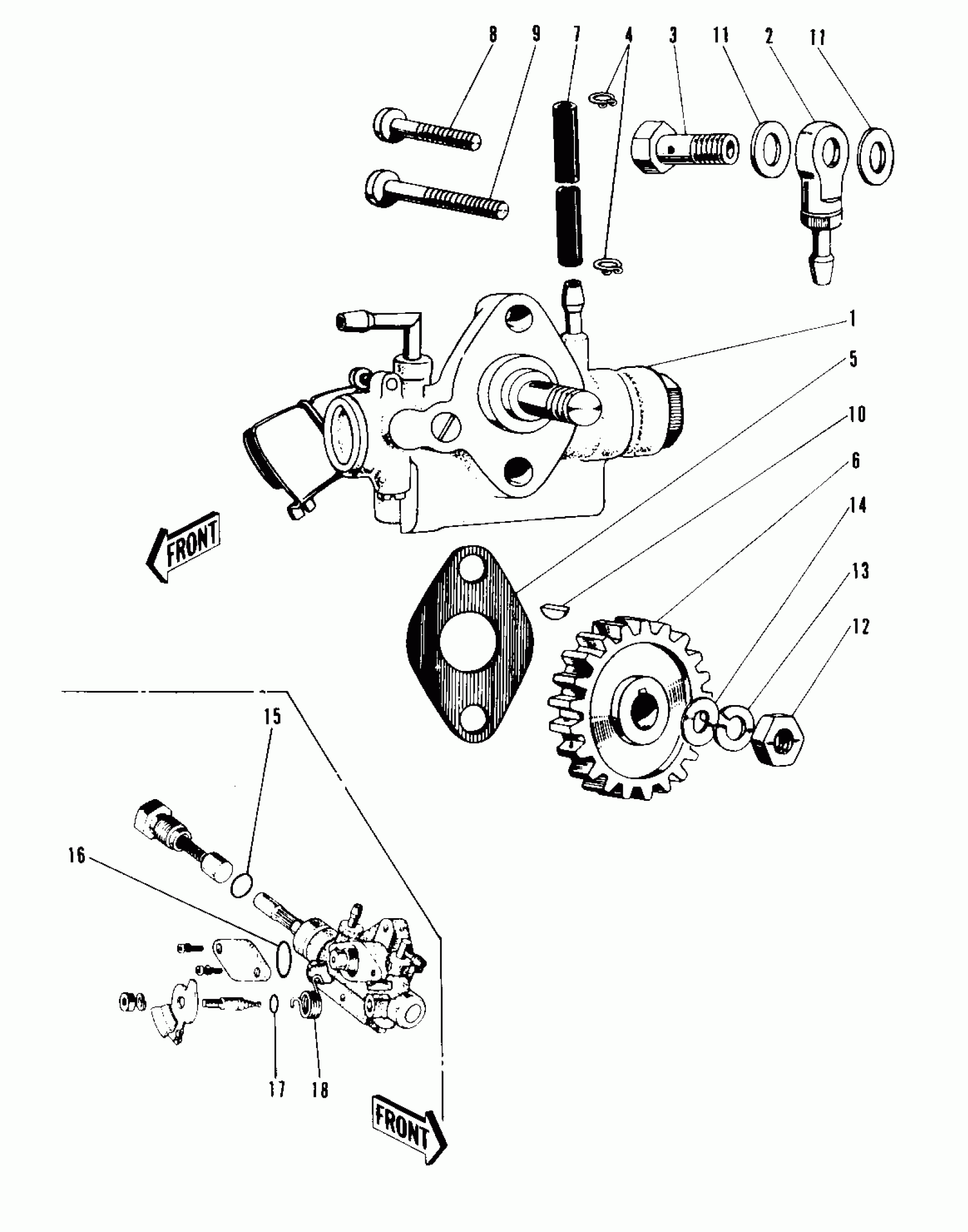

Kawasaki Sidewinder OIL PUMP Diagram

OIL PUMP ASSY

CHECK VALVE

BOLT BANJO 8X21

BOLT BANJO 8X21

CLAMP OIL PIPE

GASKET,OIL PUMP

GEAR OIL PUMP

PIPE OIL

SCREW-PAN-CROS

SCREW-PAN-CROS

SCREW-PAN-CROS

SCREW-PAN-CROS

WOODRUFF KEY

GASKET 8MM

NUT 6MM

WASHER SPRING 6MM

WASHER SPRING 6MM

WASHER-PLAIN-SMALL,6MM

"0" RING,HOUSING

"0" RING,WORM GEAR

SEAL-OIL,CAMSHAFT,"X"TYPE

SPRING OIL PUMP LEVER
