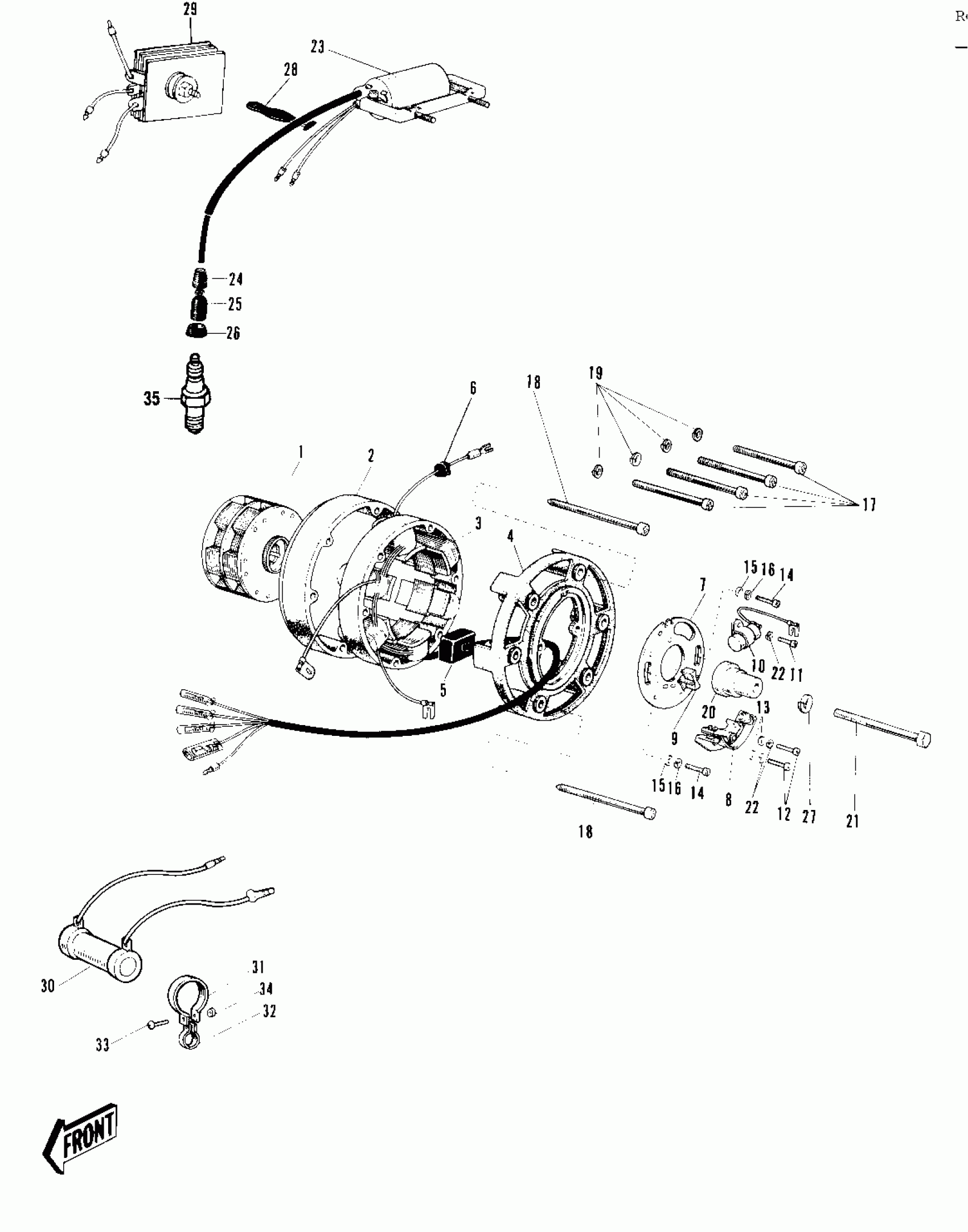

Kawasaki Sidewinder IGNITION/GENERATOR/RECTIFIER Diagram

#

Description
Price

1-22

MAGNETO

21002-013

$295.43

1

ROTOR

21007-015

$207.00

2

UNAVAILABLE IN PRICE BOOK

21004-007

$18.77

3

STATOR

21003-009

$72.68

4

FRONT COVER

21005-006

$40.16

5

GROMMET ENGINE HARN A

21017-004

Unavailable

6

GROMMET ENG RUBBER B

92071-013

Unavailable

7

PLATE CONTACH BREAKER

21021-002

$23.56

8

BREAKER ASSY CONTACT

21008-010

$7.95

9

UNAVAILABLE IN PRICE BOOK

21019-017

Unavailable

10

CONDENSER

21013-019

Unavailable

11

SCREW PAN HEAD 4X6

220B0406

$1.67

12

SCREW PAN HEAD 4X8

220B0408

$0.67

13

WASHER PLAIN 4MM

410B0400

$0.48

14

SCREW PAN HEAD 5X10

220B0510

$0.69

15

WASHER PLAIN 5MM

410B0500

$0.46

16

WASHER SPRING 5MM

461F0500

$0.69

17

SCREW PAN HEAD 6X55

220B0655

$4.12

18

SCREW PAN HEAD 5X80

21023-008

$2.12

18

SCREW PAN HEAD 5X80

220E0580A

$4.06

19

WASHER SPRING 6MM

461F0600

$0.69

20

CAM

21014-005

$21.54

21

BOLT HEX HEAD 8X63

114B0863

$3.81

22

WASHER SPRING 4MM

461F0400

Unavailable

23

COIL IGNITION

21121-030

$60.17

24

GROMMET

92071-517

$0.69

25

CAP-SPARK PLUG

21130-016

$24.97

26

GROMMET PLUG CAP A

21131-002

Unavailable

27

WASHER SPRING 8MM

461F0800

$0.40

28

BAND RUBBER

92072-018

Unavailable

29

RECTIFIER

21061-009

$41.33

30

RESISTOR

21154-001

$17.67

31

CLAMP

92037-048

$3.68

32

CLAMP-RESISTOR

92037-049

$3.11

33

SCREW PAN HEAD 6X12

220B0612

Unavailable

34

NUT 6MM

311B0600

$0.93

35

SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe

B9HS

Unavailable

35

SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe

B9HS

Unavailable

35

SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe

B9HS

Unavailable

35

SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe

B9HS

Unavailable
