Description

Price

1

AXLE FRONT

41068-024

$25.33

2

PANEL-ASY,FR BRK

41035-019

$114.66

3

BOLT 6X35

110R0635

Unavailable

4

.LEVER FRONT BRAKE CAM

41053-003

$28.26

5

NUT 6MM

311B0600

$0.93

6

OIL SEAL F BRK PANEL

92050-010

$20.98

7

SEAL,BRAKE CAM

41051-001

$4.26

8

RECIEVER GEAR

41064-003

Unavailable

9

.GEAR SPEEDOMETER

41059-008

$16.44

10

WASHER,5.1X9X0.4

41063-001

$4.69

11

SCREW BUSHING SET

41070-001

Unavailable

11

SCREW-BUSHING NET

41070-004

$0.72

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

13

.WASHER THRUST

41063-004

$4.95

14

.PINION SPEEDOMETER

41060-008

$9.58

15

.BUSH-SPEEDMETER CABLE

41062-004

$11.42

16

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

17

SPRING,BRAKE SHOE

92081-1766

$8.03

18

SPRING,BRAKE SHOE

42020-004

$8.51

19

DRUM-ASSY,FR BRK,BUFF

41034-048-80

$259.52

20

OIL SEAL RR BRK DRUM

92050-008

Unavailable

21

BEARING BALL #6202Z

601B6202Z

Unavailable

22

SPACER FR HUB BEARING

41039-004

$9.58

23

BEARING-BALL,#6202C3

601B6202

$8.64

24

COLLAR FRONT HUB R.H

41069-004

$6.31

25

NUT CASTLE 14MM

321B1400

$5.13

26

PIN-COTTER,3.0X35

550D3035

$2.81

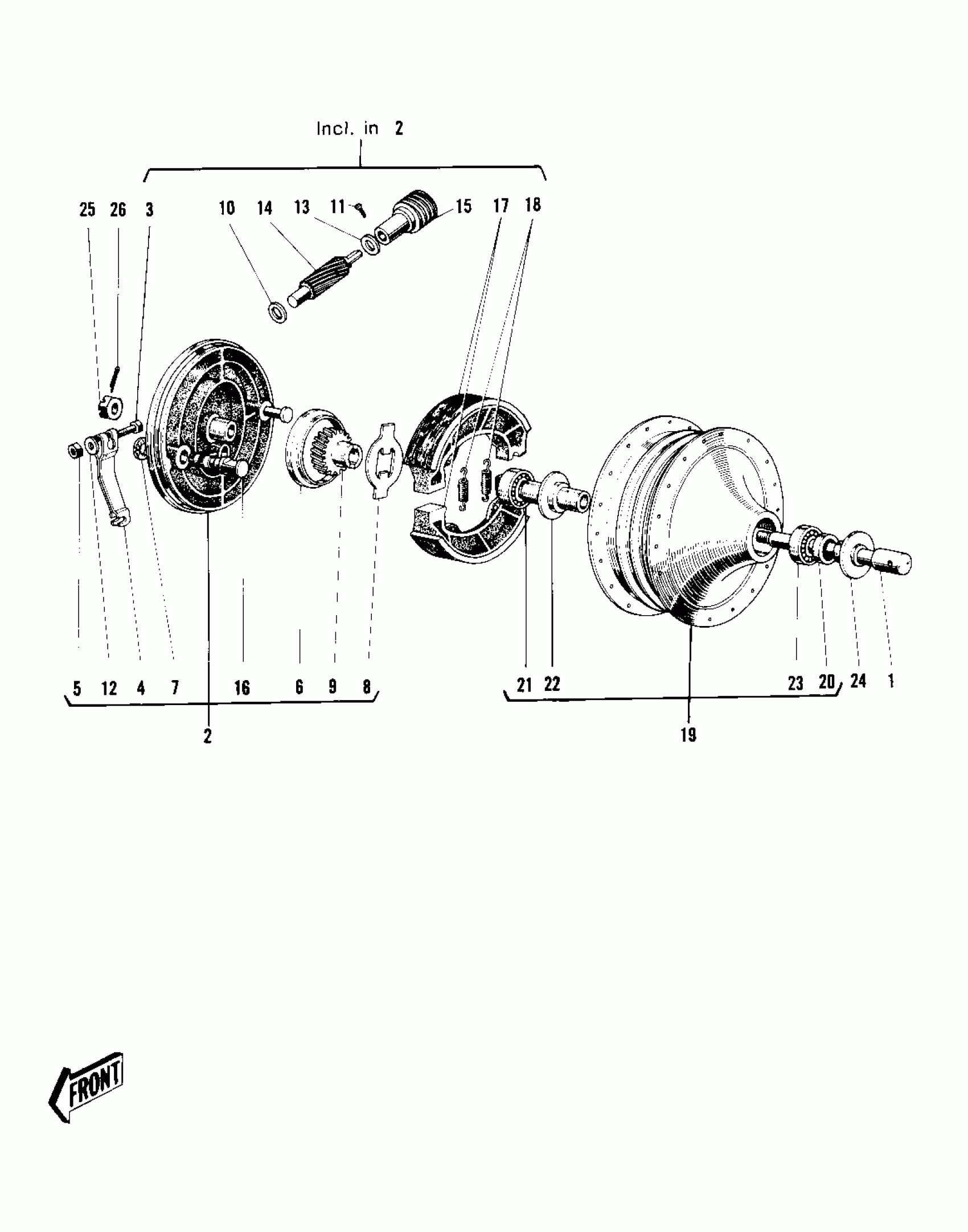

Kawasaki Sidewinder FRONT HUB/BRAKE Diagram

AXLE FRONT

PANEL-ASY,FR BRK

BOLT 6X35

.LEVER FRONT BRAKE CAM

NUT 6MM

OIL SEAL F BRK PANEL

SEAL,BRAKE CAM

RECIEVER GEAR

.GEAR SPEEDOMETER

WASHER,5.1X9X0.4

SCREW BUSHING SET

SCREW-BUSHING NET

WASHER-PLAIN-SMALL,6MM

.WASHER THRUST

.PINION SPEEDOMETER

.BUSH-SPEEDMETER CABLE

CAM SHAFT,REAR BRAKE

SPRING,BRAKE SHOE

SPRING,BRAKE SHOE

DRUM-ASSY,FR BRK,BUFF

OIL SEAL RR BRK DRUM

BEARING BALL #6202Z

SPACER FR HUB BEARING

BEARING-BALL,#6202C3

COLLAR FRONT HUB R.H

NUT CASTLE 14MM

PIN-COTTER,3.0X35
