Description

Price

1

PINION PRIMARY

13121-005

Unavailable

2

THRUST WASHER 5MM

92026-004

$9.13

3

BUSH CLUTCH

13125-002

Unavailable

4

BEARING CLUTCH NEEDLE

92046-012

$12.95

5

CLUTCH-ASSY

13082-018

Unavailable

6

HOUSING CLOTCH

13096-003

Unavailable

7

BASE CLUTCH

13086-002

Unavailable

8

STUD CLUTCH BASE

92006-001

$1.23

9

CLUTCH,HUB

13087-037

Unavailable

9

CLUTCH,HUB

13087-037

Unavailable

10

SPRING CLUTCH

92081-028

Unavailable

11

PLATE CLUTCH SPRING

13091-001

Unavailable

12

WASHER SPRING 8MM

461F0800

$0.40

12

WASHER SPRING 8MM

461F0800

Unavailable

13

NUT 8MM

312B0800

$0.58

14

PUSHER CLUTCH SPRING

13113-002

Unavailable

15

PLATE CLUTCH FRICTION

13088-009

Unavailable

16

PLATE CLUTCH STEEL

13089-003

$14.22

17

PLATE CLUTCH OUTER

13090-002

Unavailable

18

PIN DOWEL 7X10

610A0710

$4.02

19

PLATE ASSY CLTH RELSE

13102-003

Unavailable

20

THRUST BALL ASSY CLTH

13110-003

Unavailable

21

SPRING GEAR CHNG LEV

92083-011

$4.09

22

PLATE CLTH RELESE CAM

13119-003

Unavailable

23

SCREW PAN HEAD 6X12

220B0612

Unavailable

24

SCREW SLOTTED

291Z0622

$5.93

25

NUT 6MM

312B0600

$0.72

26

BALL-STEEL,5/16

600A1000

$0.73

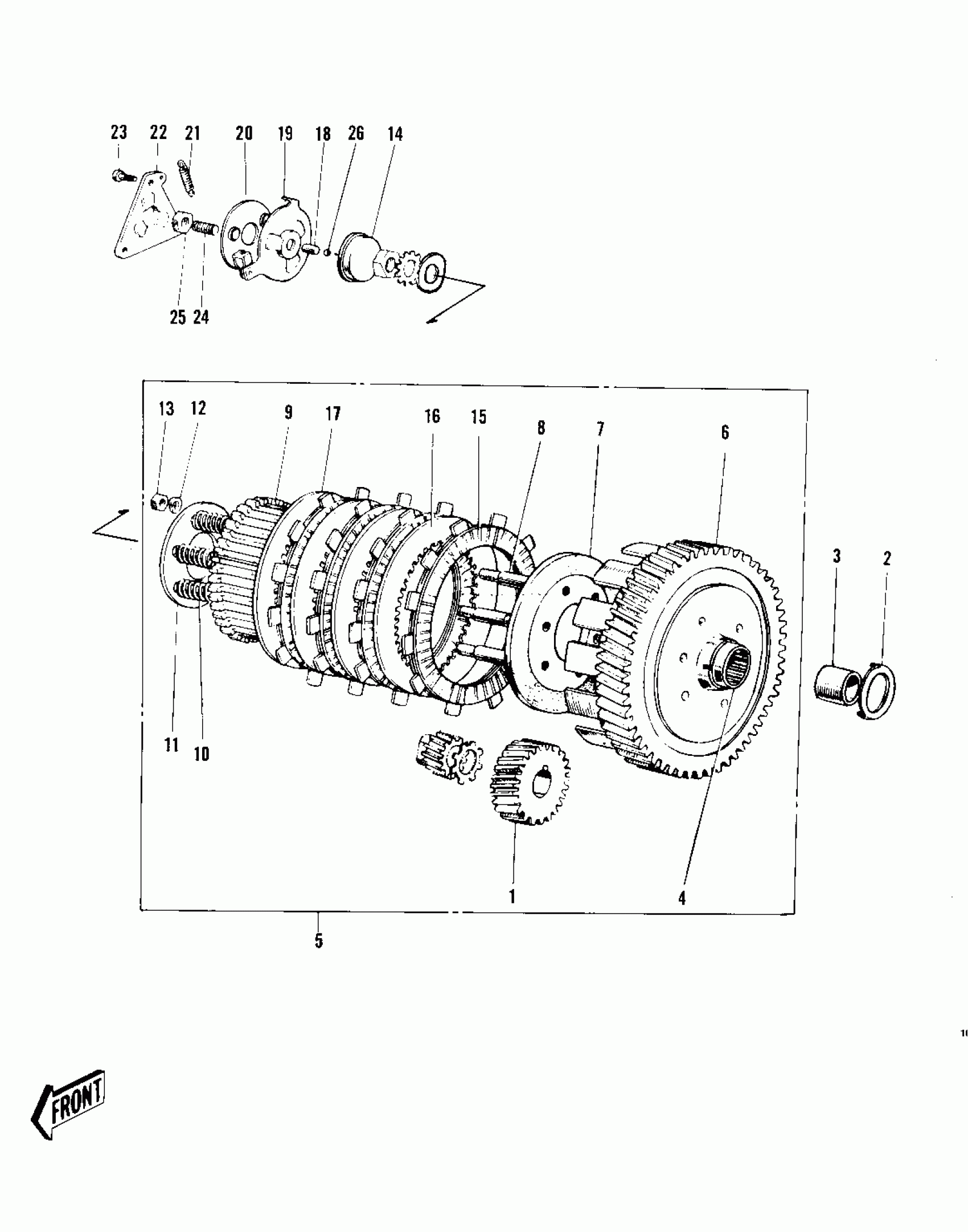

Kawasaki Sidewinder CLUTCH Diagram

PINION PRIMARY

THRUST WASHER 5MM

BUSH CLUTCH

BEARING CLUTCH NEEDLE

CLUTCH-ASSY

HOUSING CLOTCH

BASE CLUTCH

STUD CLUTCH BASE

CLUTCH,HUB

CLUTCH,HUB

SPRING CLUTCH

PLATE CLUTCH SPRING

WASHER SPRING 8MM

WASHER SPRING 8MM

NUT 8MM

PUSHER CLUTCH SPRING

PLATE CLUTCH FRICTION

PLATE CLUTCH STEEL

PLATE CLUTCH OUTER

PIN DOWEL 7X10

PLATE ASSY CLTH RELSE

THRUST BALL ASSY CLTH

SPRING GEAR CHNG LEV

PLATE CLTH RELESE CAM

SCREW PAN HEAD 6X12

SCREW SLOTTED

NUT 6MM

BALL-STEEL,5/16
