Description

Price

11009

GASKET,TAIL LAMP

11009-1221

$13.85

23025

LAMP-TAIL

23025-1025

Unavailable

23026

LENS,TAIL LAMP

23026-1021

$138.60

23027

BODY-COMP-TAIL LAMP

23027-1013

$148.92

23036

BRACKET-TAIL LAMP

23036-1033

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X14.5

92027-156

$5.00

92027A

COLLAR

92027-169

$6.15

92069

BULB,12V 27/8W

92069-059

$8.12

92075

DAMPER,TAIL LAMP

35039-004

$18.41

92075A

DAMPER RUBBER

92075-1092

Unavailable

92075B

DAMPER,FENDER

92075-121

$4.56

92075C

DAMPER

92075-1282

Unavailable

110

BOLT 6X22

112B0622

$3.48

110A

BOLT-UPSET

112G0625

$3.62

220

SCREW-PAN-CROS

220C0465

$3.84

461

WASHER SPRING 6MM

461F0600

$0.69

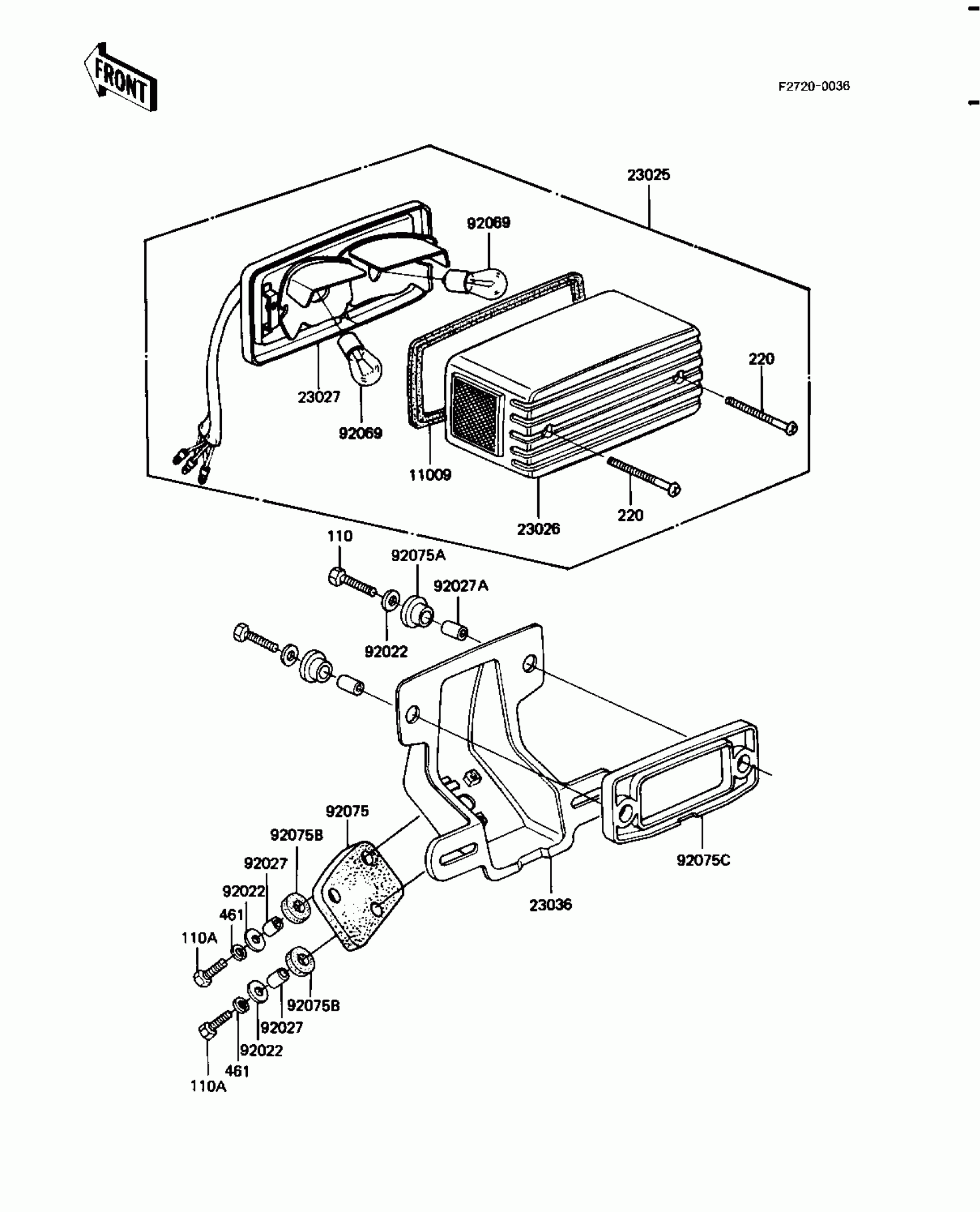

Kawasaki Shaft TAILIGHT Diagram

GASKET,TAIL LAMP

LAMP-TAIL

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

BRACKET-TAIL LAMP

WASHER,6.5X20X1.6

COLLAR,6.8X10X14.5

COLLAR

BULB,12V 27/8W

DAMPER,TAIL LAMP

DAMPER RUBBER

DAMPER,FENDER

DAMPER

BOLT 6X22

BOLT-UPSET

SCREW-PAN-CROS

WASHER SPRING 6MM
