Description

Price

11034

BRACKET,SEAT CATCH

11034-1329

$16.66

27012

HOOK,SEAT

53056-002

$16.66

35011

STAY,SEAT STAND

35011-1034

Unavailable

53001

SEAT-ASSY

53001-1104

$559.19

53003

LEATHER

53003-1025

Unavailable

53009

HINGE,SEAT,FRONT

53009-1010

Unavailable

53009A

HING,RR

53009-1021

$17.15

92043

PIN,SEAT PIVOT

92043-1021

$5.38

92075

DAMPER

92075-099

$5.52

92075A

DAMPER RUBBER,SEAT

92075-139

$11.46

92081

SPRING,SEAT HOOK

92081-1053

$15.20

110

BOLT-UPSET,6X16

112G0616

$1.10

311

NUT 6MM

311B0600

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

554

PIN,SNAP

554A0600

$0.93

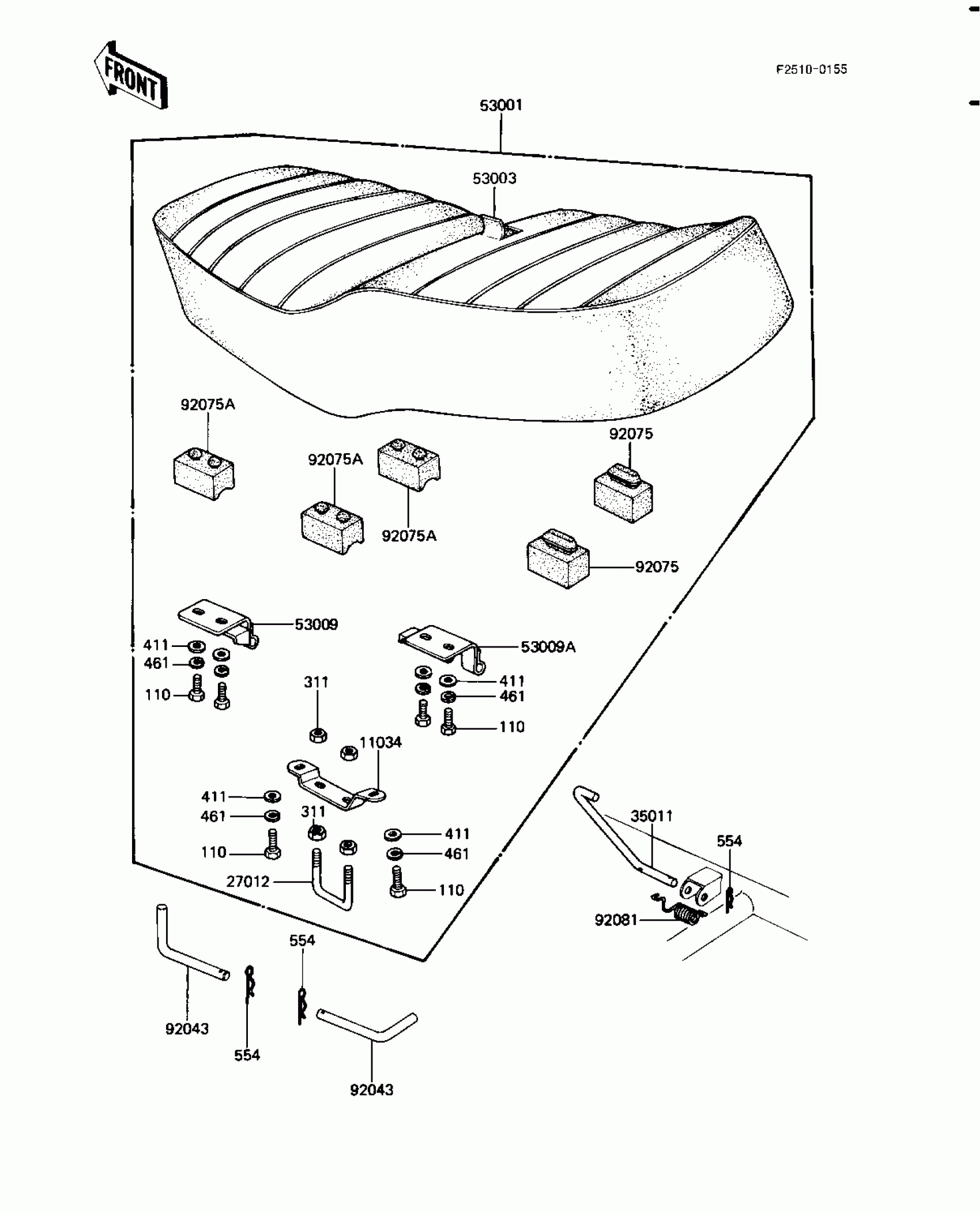

Kawasaki Shaft SEAT Diagram

BRACKET,SEAT CATCH

HOOK,SEAT

STAY,SEAT STAND

SEAT-ASSY

LEATHER

HINGE,SEAT,FRONT

HING,RR

PIN,SEAT PIVOT

DAMPER

DAMPER RUBBER,SEAT

SPRING,SEAT HOOK

BOLT-UPSET,6X16

NUT 6MM

WASHER PLAIN 6MM

WASHER SPRING 6MM

PIN,SNAP
