1983 Kawasaki Shaft OIL Pump/oil Filter Diagram

← All diagrams

Find the part on the OIL Pump/oil Filter diagram for your 1983 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

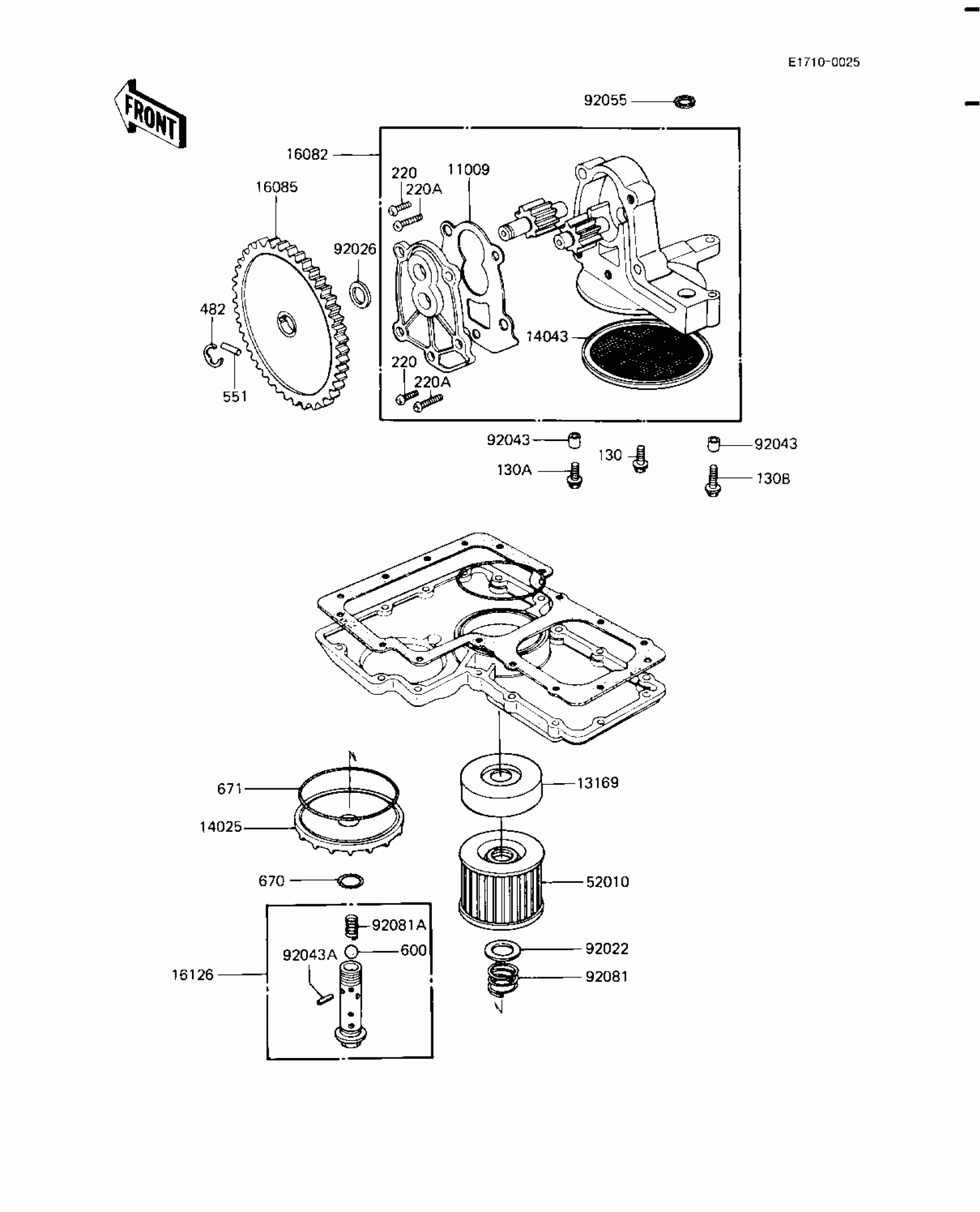

1983 Kawasaki Shaft OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PUMP

11009-1029

1
Out of stock

13169

PLATE,OIL FILTER

13169-1313

1
Out of stock

14025

COVER,OIL FILTER

16101-004

1
Out of stock

14043

FILTER,OIL PUMP

16111-004

1
Out of stock

16082

PUMP-ASSY-OIL

16082-5001

1
Out of stock

16085

GEAR,OIL PUMP 49T

16085-019

1
Out of stock

16126

VALVE,OIL FILTER

16126-1108

1
Out of stock

52010

ELEMENT-OIL FILTER

16099-003

1
Out of stock

92022

WASHER,20.5X30X1

92022-1012

1
Out of stock

92026

WASHER,LOCK,16MM

92026-080

1
Out of stock

92043

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92043A

PIN,SPRING,2X20

92043-111

1
Out of stock

92055

RING-O,OD=18

92055-048

1
Out of stock

92081

SPRING,OIL FILTER

92081-1018

1
Out of stock

92081A

SPRING

92081-109

1
Out of stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

130A

BOLT,FLANGED,6X35

130H0635

1
Out of stock

130B

BOLT-FLANGED,6X45

130G0645

1
Out of stock

220

SCREW PAN HEAD 6X18

220B0618

1
Out of stock

220A

SCREW PAN HEAD 6X28

220B0628

1
Out of stock

482

CIRCLIP,7MM

482K7000

1
Out of stock

551

PIN,DOWEL,3X14

551A0314

1
Out of stock

600

BALL-STEEL,3/8"

600A1200

1
Out of stock

670

O RING,16MM

670B2016

1
Out of stock

671

O RING,90MM

671B2590

1
Out of stock
