1980 Kawasaki Shaft Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1980 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

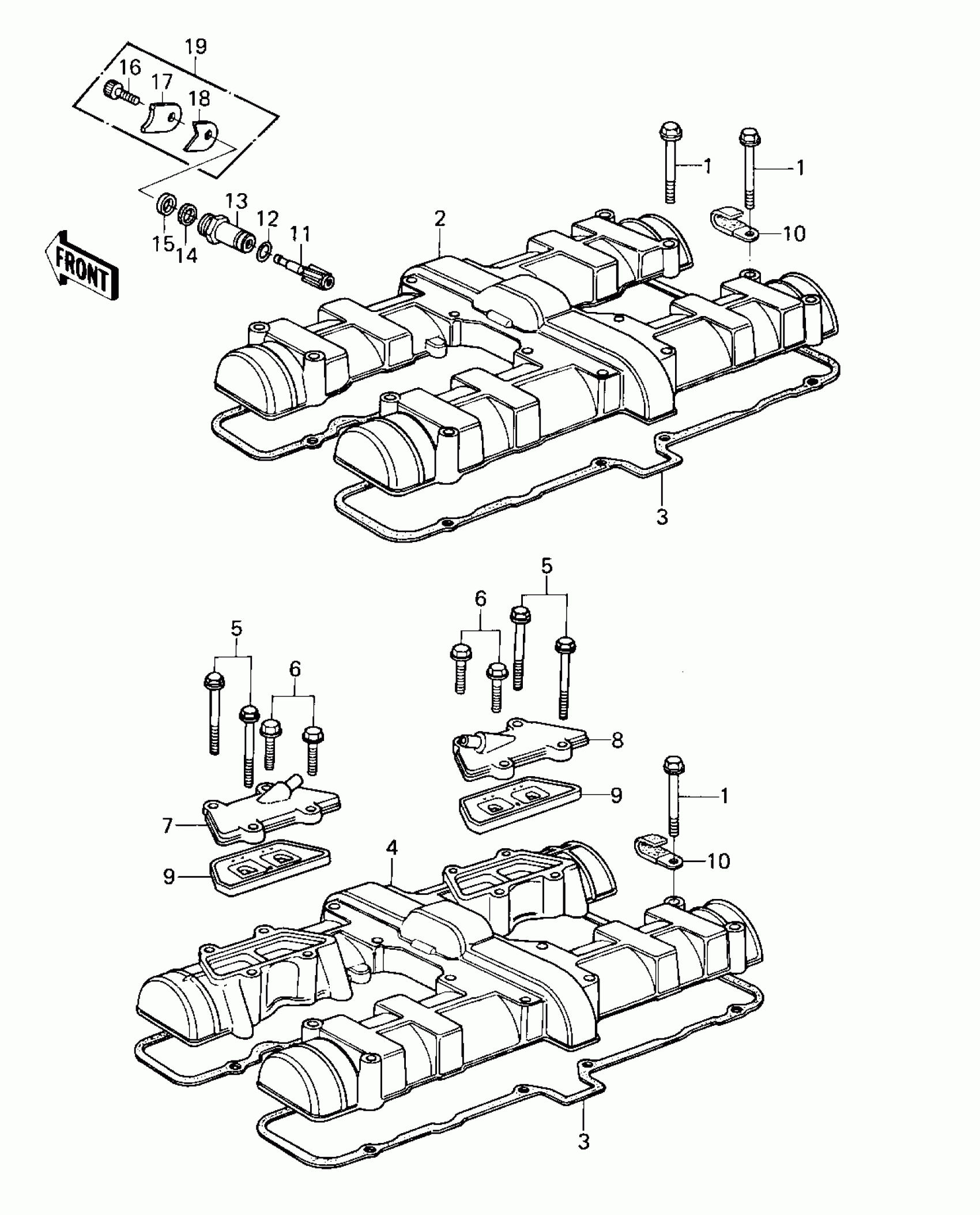

1980 Kawasaki Shaft Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,HEX HEAD,6X45

92001-1160

1
Out of stock

2

COVER,CYLINDER HEAD

14025-1119

1
Out of stock

3

GASKET,CYL HEAD COVE

11009-1050

1
Out of stock

10

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

11

GEAR,TACHOMETER,10T

13223-011

1
Out of stock

12

RING-O,10MM

92055-1149

1
Out of stock

13

GUIDE,TACHOMETER GEAR

92087-010

1
Out of stock

14

SEAL-OIL

92050-075

1
Out of stock

15

GASKET,TACHOMETER GEAR

92065-103

1
Out of stock

16

BOLT-SOCKET,6X14

120P0614

1
Out of stock

17

HOLDER,TACHOMETER2.3T

13091-1008

1
Out of stock

18

HOLDER,TACHOMETR,3.2T

13091-1009

1
Out of stock

19

HOLDER SET,TACHOMETER

13091-5001

1
Out of stock
