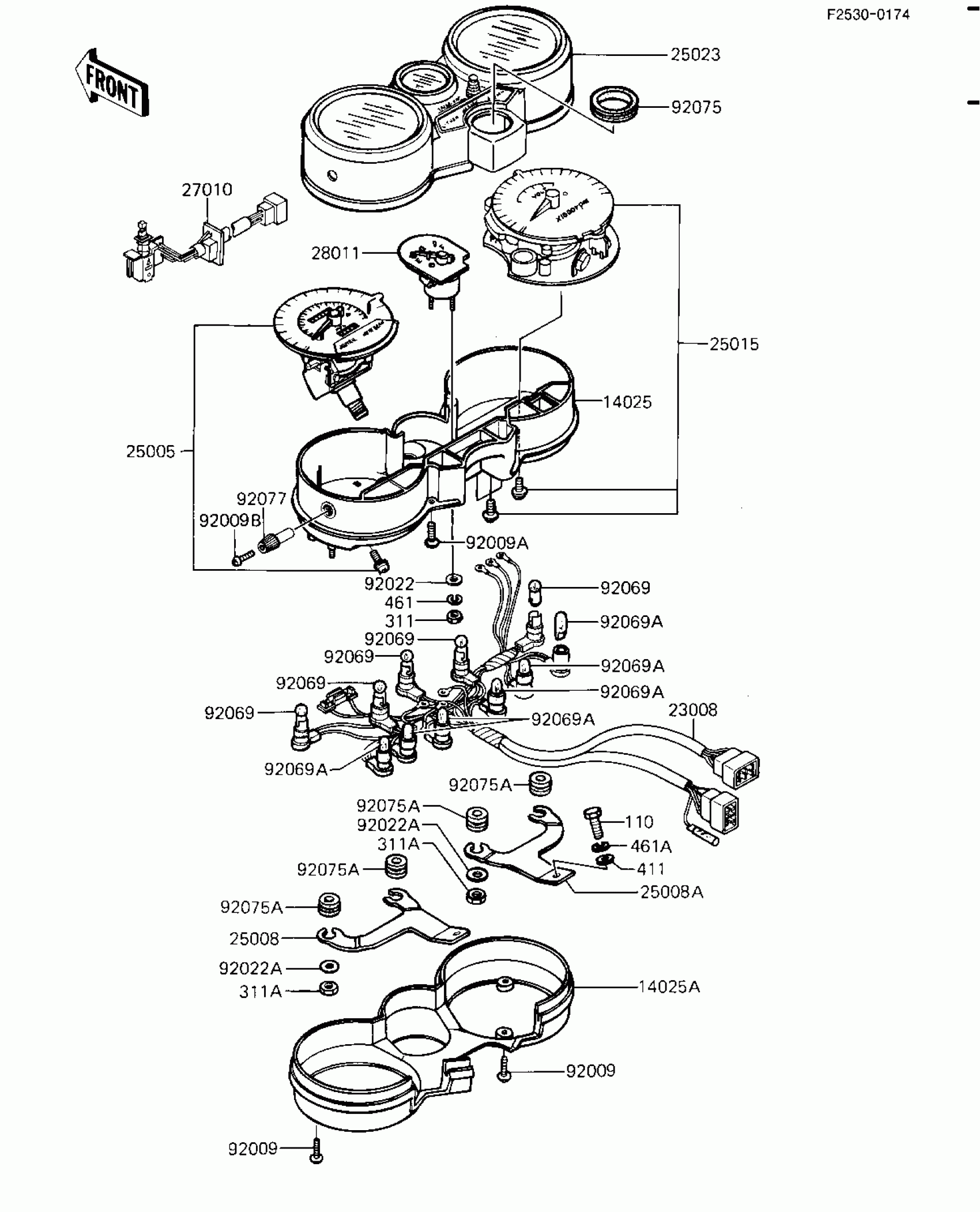

Kawasaki Shaft METERS (KZ1100-A3) Diagram

#

Description
Price

14025

COVER,METER HOUSING

14025-1594

Unavailable

14025A

COVER,METER CASE,LWR

14025-1602

Unavailable

23008

SOCKET-ASSY,METER

23008-1174

$110.49

25005

SPEEDOMETER,MPH

25005-1202

Unavailable

25008

BRACKET-METER,LH

25008-1053

$42.67

25008A

BRACKET-METER,RH

25008-1054

$26.10

25015

TACHOMETER,X1000RPM

25015-1136

$664.64

25023

COVER-METER CASE,UPP

25023-1048

$242.82

27010

SWITCH TACHO/JOLT

27010-1090

$72.83

28011

METER,FUEL

28011-1033

Unavailable

92009

SCREW,4X16,BLACK

92009-1158

$3.20

92009A

SCREW,TAPPING,4X16

92009-1163

$3.13

92009B

SCREW,2X6,BLACK

92009-1172

$2.15

92022

WASHER,3MM

92022-1374

Unavailable

92022A

WASHER,5.2X16X1.2

92022-263

$1.22

92069

BULB 12V 1.5W

92069-017

Unavailable

92069A

BULB,12V 3.4W,T10

92069-1007

$3.81

92075

DAMPER RUBBER

92075-1256

Unavailable

92075A

DAMPER

92075-1435

$4.84

92077

KNOB,METER

92077-1015

$8.88

110

BOLT, 6X14, BLACK

112C0614

Unavailable

311

NUT-HEX

311B0300

$0.46

311A

NUT-HEX

311B0500

$0.47

411

WASHER PLAIN

411F0600

$0.95

461

WASHER SPRING 3MM

461F0300

Unavailable

461A

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable
