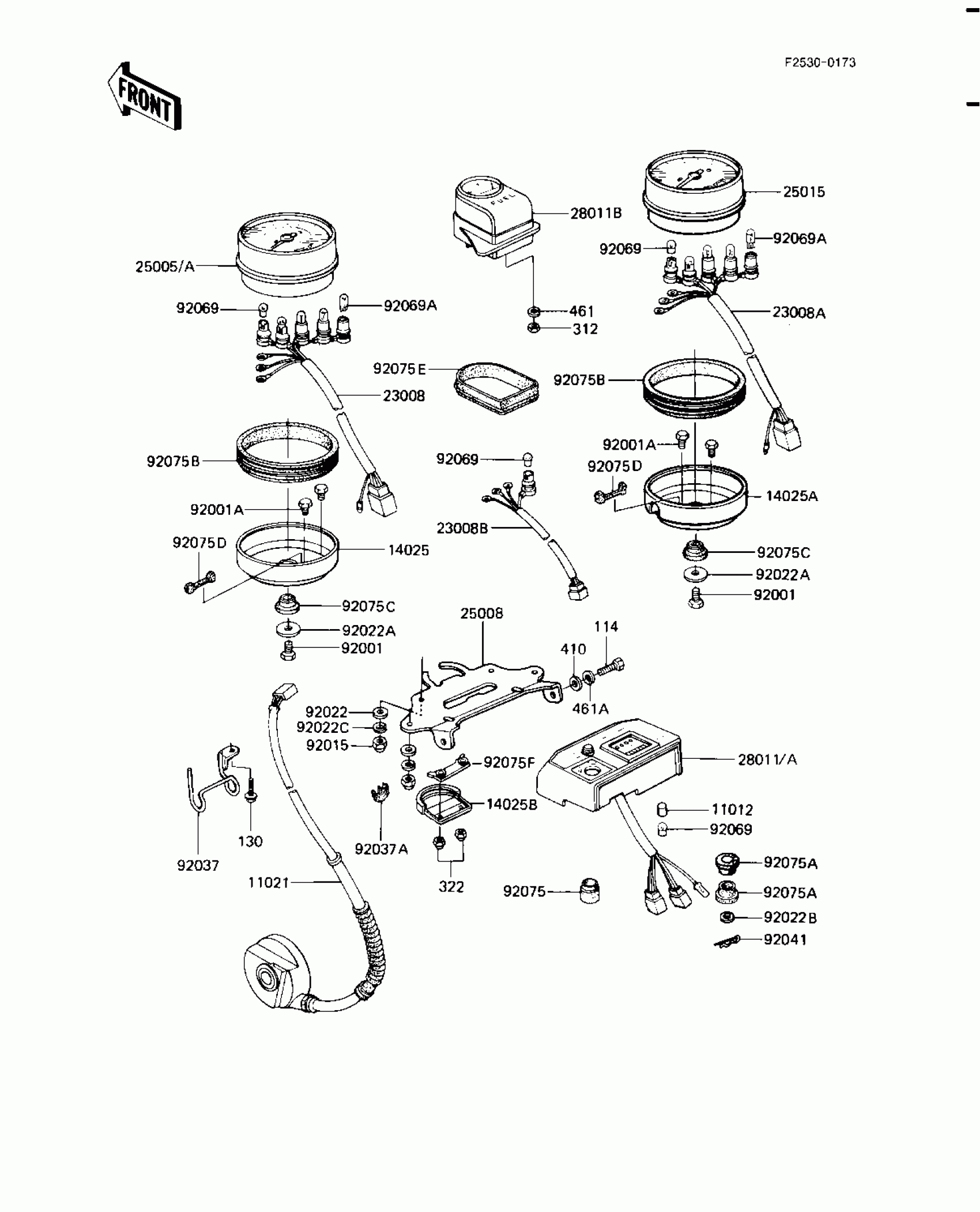

Kawasaki Shaft METERS (KZ1100-A1/A2) Diagram
#
11012
CAP,BULB,GREEN
11012-1172
Unavailable
11021
CASE-ASSY
11021-1011
Unavailable
14025
COVER,SPEEDOMETER
14025-1348
Unavailable
14025A
COVER,TACHOMETER
14025-1349
Unavailable
14025B
COVER,FUEL METER
14025-1350
Unavailable
23008
SOCKET-ASSY,SPEEDOMET
23008-1090
$96.86
23008A
SOCKET-ASSY,TACHOMETE
23008-1091
$88.74
23008B
SOCKET-ASSY,FUEL METE
23008-1092
$45.17
25005
SPEEDOMETER,MPH
25005-1106
$790.72
25005A
SPEEDOMETER,KPH (Canada)
25005-1107
Unavailable
25008
BRACKET-METER
25008-1034
Unavailable
25015
TACHOMETER
25015-1082
$517.30
28011
METER,TOTAL & TRIP
28011-1014
$1,125.70
28011A
METER,TOTAL & TRIP (Canada)
28011-1015
Unavailable
28011B
METER,FUEL
28011-1025
Unavailable
92001
BOLT,6X8
92001-1443
$4.96
92001A
BOLT,HEX HEAD,6X14
92003-204
$3.86
92015
NUT-CAP,6MM,BLACK
322C0600
$2.76
92022
WASHER PLAIN
411F0600
$1.18
92022A
WASHER 6.5X26X1
92022-1249
$3.80
92022B
WASHER,5.2X16X1.2
92022-263
$1.66
92022C
WASHER-SPRING,6MM,BLACK
461K0600
$0.64
92037
CLAMP
92037-1230
$13.75
92037A
CLAMP,HOSE
92037-1249
Unavailable
92041
PIN,COTER
92041-006
Unavailable
92069
BULB 12V 1.5W
92069-017
$4.92
92069A
BULB,12V 3.4W,T10
92069-1007
$5.00
92075
DAMPER,TRIP METER
92075-1286
$9.58
92075A
DAMPER,TRIP METER
92075-1300
Unavailable
92075B
DAMPER,METER
92075-1315
Unavailable
92075C
DAMPER
92075-1316
Unavailable
92075D
DAMPER
92075-1317
$9.48
92075E
DAMPER,FUEL METER
92075-1318
Unavailable
92075F
DAMPER
92075-1319
Unavailable
114
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
130
BOLT-FLANGED,6X8
130B0608
$0.67
312
NUT-HEX
312B0300A
$2.76
322
NUT-CAP,4MM
322N0400A
$3.25
410
WASHER PLAIN 8MM
410B0800
$0.93
461
WASHER SPRING 3MM
461F0300
$0.46
461A
WASHER SPRING 8MM
461F0800
$0.40
