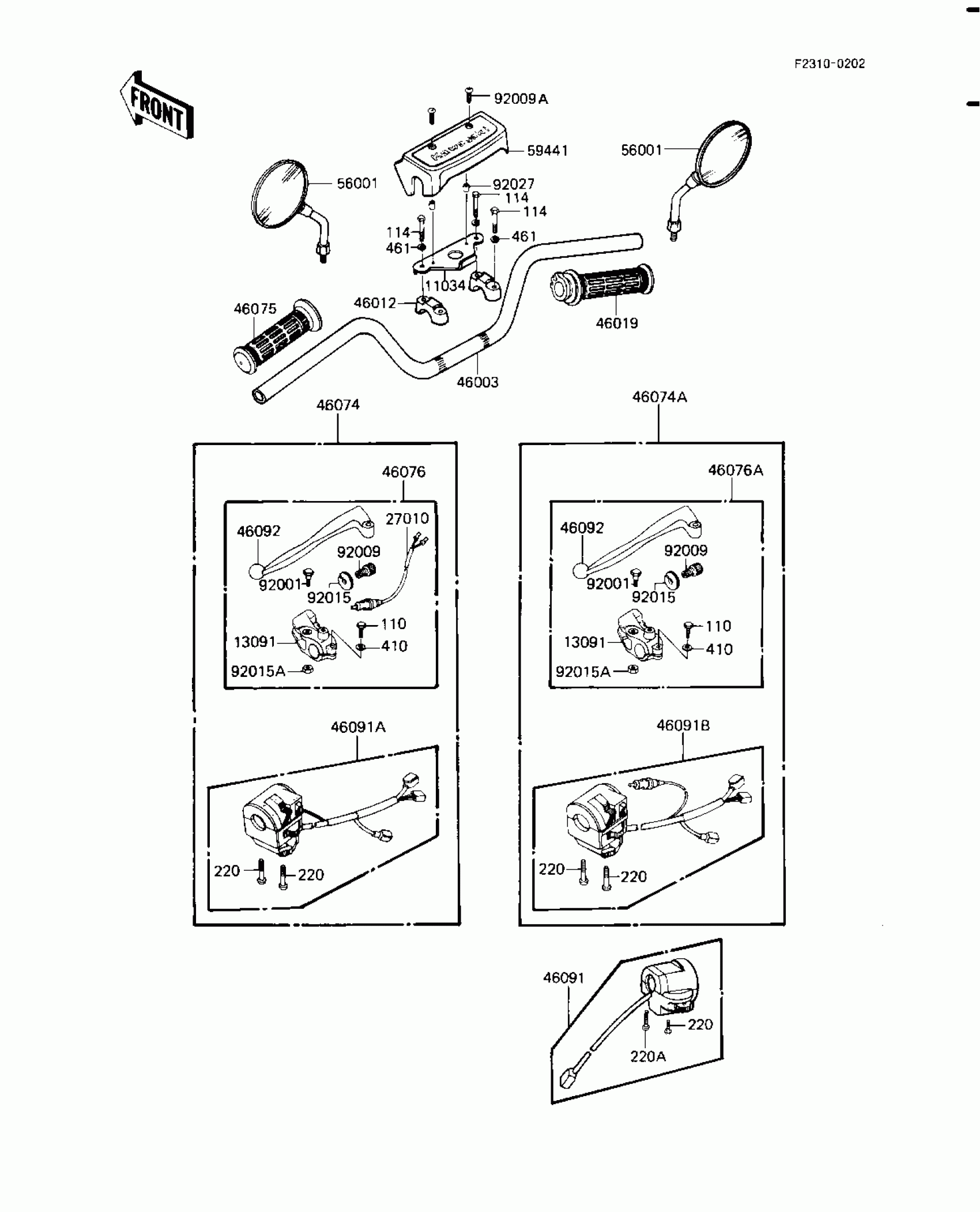

Kawasaki Shaft HANDLEBAR (KZ1100-A1/A2) Diagram
#
Description
Price
11034
BRACKET,HANDLE COVER
11034-1899
Unavailable
13091
HOLDER,CLUTCH LEVER,F.BLACK
13091-1046
$50.69
27010
SWITCH,CLUTCH
27010-1045
$39.19
46003
HANDLEBAR
46003-1076
$128.62
46012
HOLDER-HANDLE
46012-1011
$39.28
46019
GRIP-ASSY,THROTTLE
46019-1015
$51.06
46075
GRIP,LH
46075-1022
$16.96
46076
LEVER-ASSY-GRIP,LH
46076-1017
Unavailable
46076A
LEVER-ASSY-GRIP,CLUTCH
46076-1019
$57.14
46091
HOUSING-ASSY-CNTRL,RH
46091-1155
Unavailable
46091A
HOUSING-ASSY-CNTRL,LH
46091-1183
Unavailable
46091B
HOUSING-ASSY-CNTRL,LH
46091-1183
Unavailable
46092
LEVER-GRIP,CLUTCH
46092-1005
$28.54
56001
MIRROR-ASSY
56001-1346
Unavailable
59441
COVER-HANDLE
59441-1003
Unavailable
92001
BOLT,CLUTCH LEVER
92001-1075
$8.19
92009
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
92009A
SCREW,4X16
92009-1108
Unavailable
92015
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
92015A
NUT,LOCK,6MM
92019-008
$4.26
92027
COLLAR,4.5X6.5X9.3
92027-1313
$8.98
110
BOLT,6X22
110N0622
$3.23
114
BOLT-SMALL-UPSET
115G0835
$4.54
220
SCREW-PAN-CROS
220B0535
$3.70
220A
SCREW-PAN-CROS
220B0540
$3.41
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
461
WASHER SPRING 8MM
461F0800
$0.40
