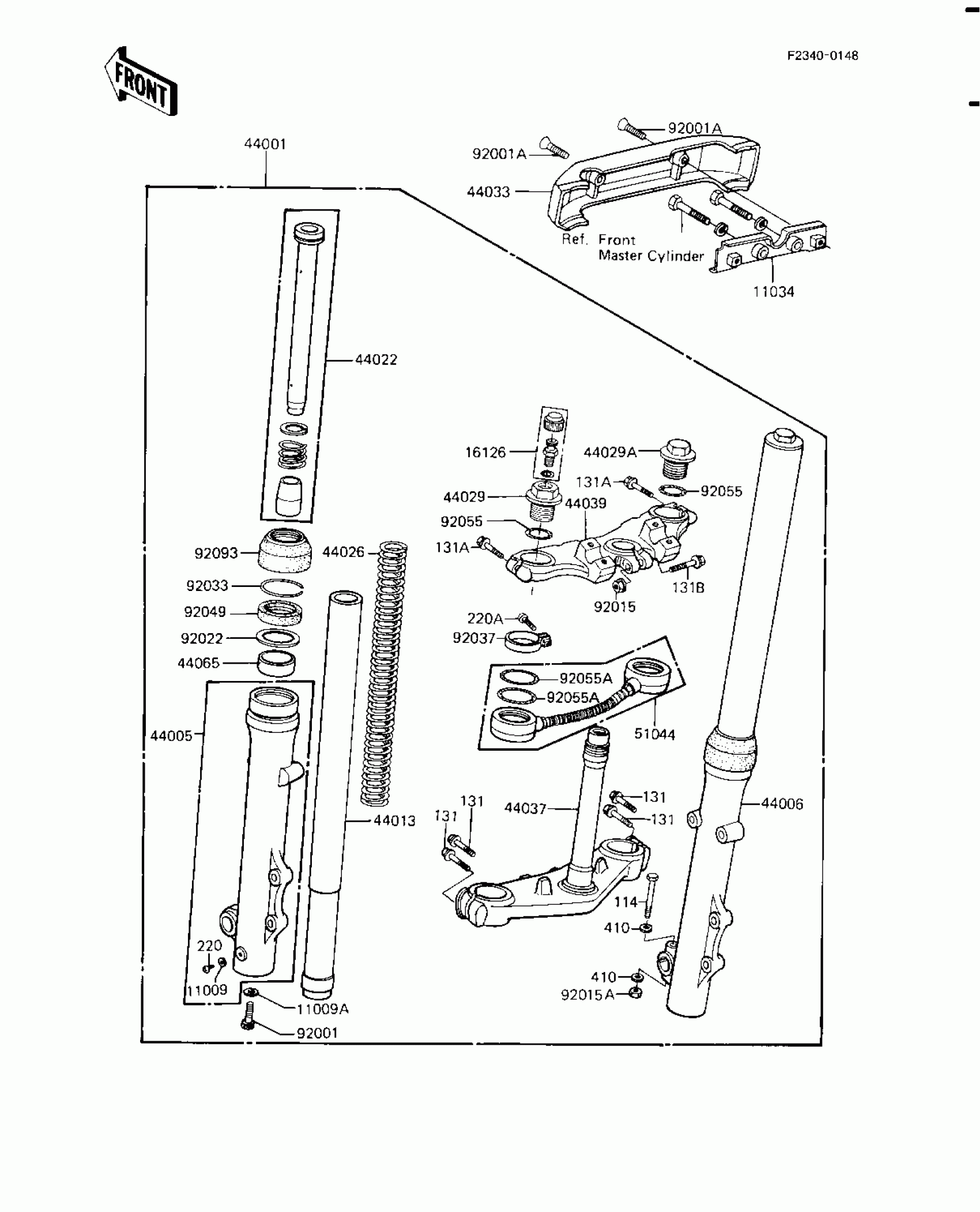

Kawasaki Shaft FRONT FORK (KZ1100-A3) Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-002

$5.18

11009A

GASKET

44045-057

$4.86

11034

BRACKET,FORK COVER

11034-1842

Unavailable

16126

VALVE,AIR

16126-1052

$35.06

44001

FORK-FRONT

44001-1387

$1,215.50

44005

TUBE,LH,FORK OUTER

44005-1067

$268.22

44006

TUBE,RH,FORK OUTER

44006-1067

$267.98

44013

PIPE-FORK INNER

44013-1111

$261.15

44022

CYLINDER-FORK

44022-1045

$99.59

44026

SPRING-FRONT FORK

44026-1189

$52.86

44029

SEAT-FORK SPRING,LH

44029-1044

Unavailable

44029A

SEAT-FORK SPRING,RH

44029-1045

Unavailable

44033

COVER,FORK

44033-1054

$73.87

44037

HOLDER-FORK UNDER

44037-1109

$463.29

44039

HOLDER-FORK UPPER

44039-1069

$204.22

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$25.96

51044

TUBE-ASSY,AIR,FORK

51044-1024

$107.39

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

92001A

SCREW-CSK-RD-CROS

222C0518

$4.67

92015

NUT,FLANGED,8MM

92015-1022

$0.48

92015A

NUT,LOCK,8MM

92015-1124

$5.42

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.60

92033

RING-SNAP,FORK

92033-1047

$6.46

92037

CLAMP,FRONT FORK

92037-1277

Unavailable

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$22.14

92055

RING-O,FORK TOP CAP

92055-1051

$5.52

92055A

RING-O,ROD

92055-1369

$10.14

92093

SEAL

92093-1051

$43.03

114

BOLT,HEX HEAD,8X55

114G0855

Unavailable

131

BOLT,FLANGED,8X40

92001-1188

Unavailable

131A

BOLT-FLANGED,8X45

131G0845

$1.58

131B

BOLT-FLANGED,8X55

130G0855

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

$0.67

220A

SCREW-PAN-CROS

220B0414

$4.28

410

WASHER PLAIN 8MM

410B0800

$0.93
