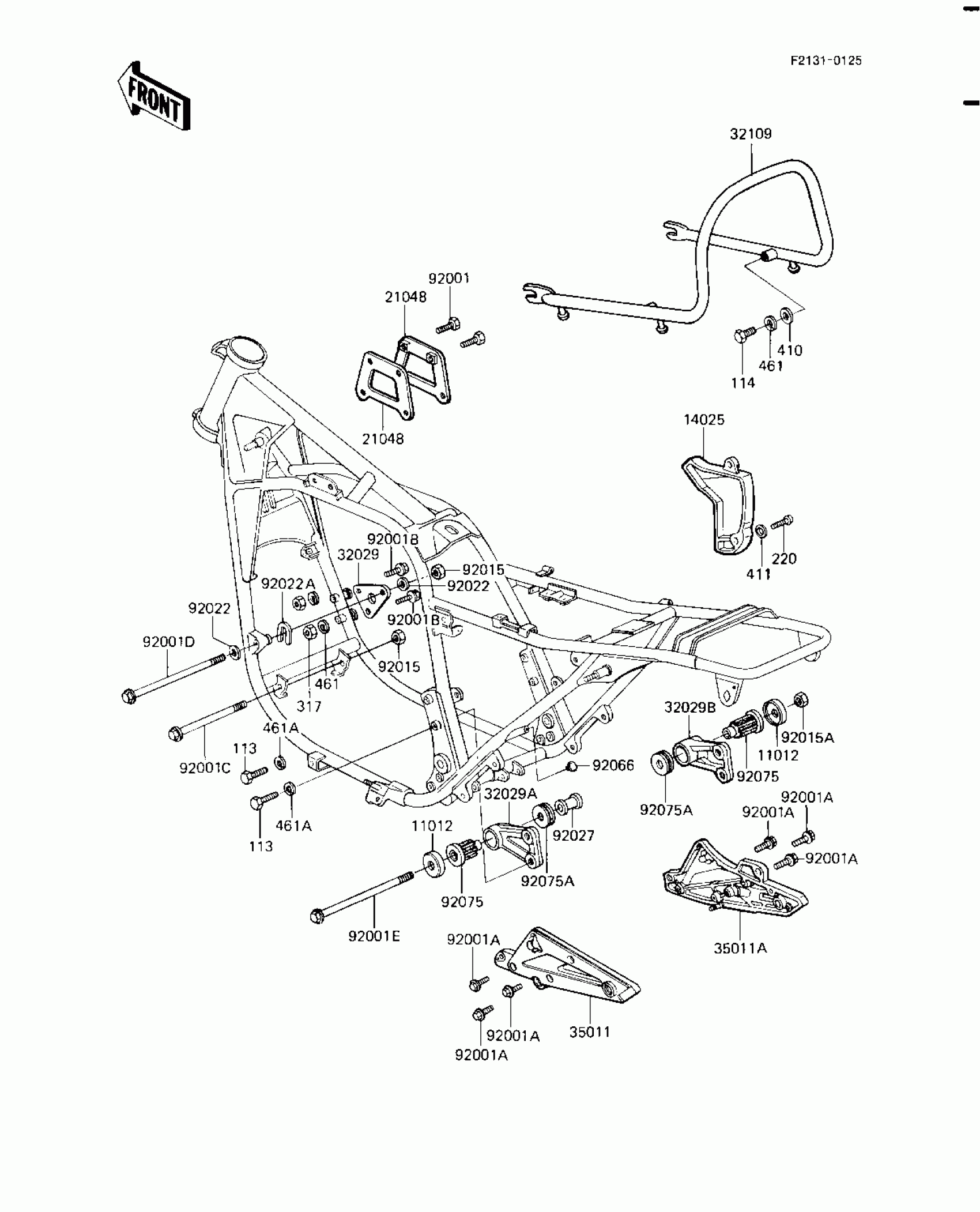

Kawasaki Shaft FRAME FITTINGS Diagram

#

Description
Price

11012

CAP,ENG MOUNT DAMPER

11012-1182

Unavailable

14025

COVER,ORNAMENT,RH

14025-1375

Unavailable

21048

PLATE-COIL

21048-1001

$20.77

32029

BRACKET-ENGINE,FR,UPP

32029-1142

$19.74

32029A

BRACKET-ENGINE,RR,LH

32029-1163

$44.64

32029B

BRACKET-ENGINE,RR,RH

32029-1164

$49.83

32109

GRIP-FRAME

32109-1021

Unavailable

35011

STAY,MUFFLER,LH

35011-1071

$194.41

35011A

STAY,MUFFLER,RH

35011-1072

Unavailable

92001

BOLT,6X10

92001-137

$6.52

92001A

BOLT,FLANGED,8X35

92001-1577

Unavailable

92001B

BOLT-FLANGE

92001-1582

Unavailable

92001C

BOLT

92001-1585

$24.03

92001D

BOLT,FLANGED,10X320,BLACK

92001-1624

$34.51

92001E

BOLT,FLANGED,12X320

92001-1594

$26.22

92015

NUT,10MM

92015-1429

$6.88

92015A

NUT-LOCK,12MM

92019-009

$7.29

92022

WASHER,10.5X22X4.5

92022-1022

$5.24

92022A

WASHER,U FORMED

92022-1259

$7.98

92027

COLLAR,13X25X39.5

92027-1329

$16.86

92066

PLUG,FRAME END,12X13

92066-1034

$4.65

92075

DAMPER,ENG MOUNT,RR,I

92075-1330

Unavailable

92075A

DAMPER,ENG MOUNT,RR,S

92075-1331

$11.13

113

BOLT-SMALL-FINE,10X45

113G1045

$3.98

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

220

SCREW-PAN-CROS, 6X14

220C0614

$1.92

317

NUT-HEX-SMALL,8MM

317B0800

$0.67

410

WASHER PLAIN 8MM

410B0800

$0.93

411

WASHER PLAIN

411F0600

$1.18

461

WASHER SPRING 8MM

461F0800

$0.40

461A

WASHER SPRING 10MM

461F1000

$0.67
