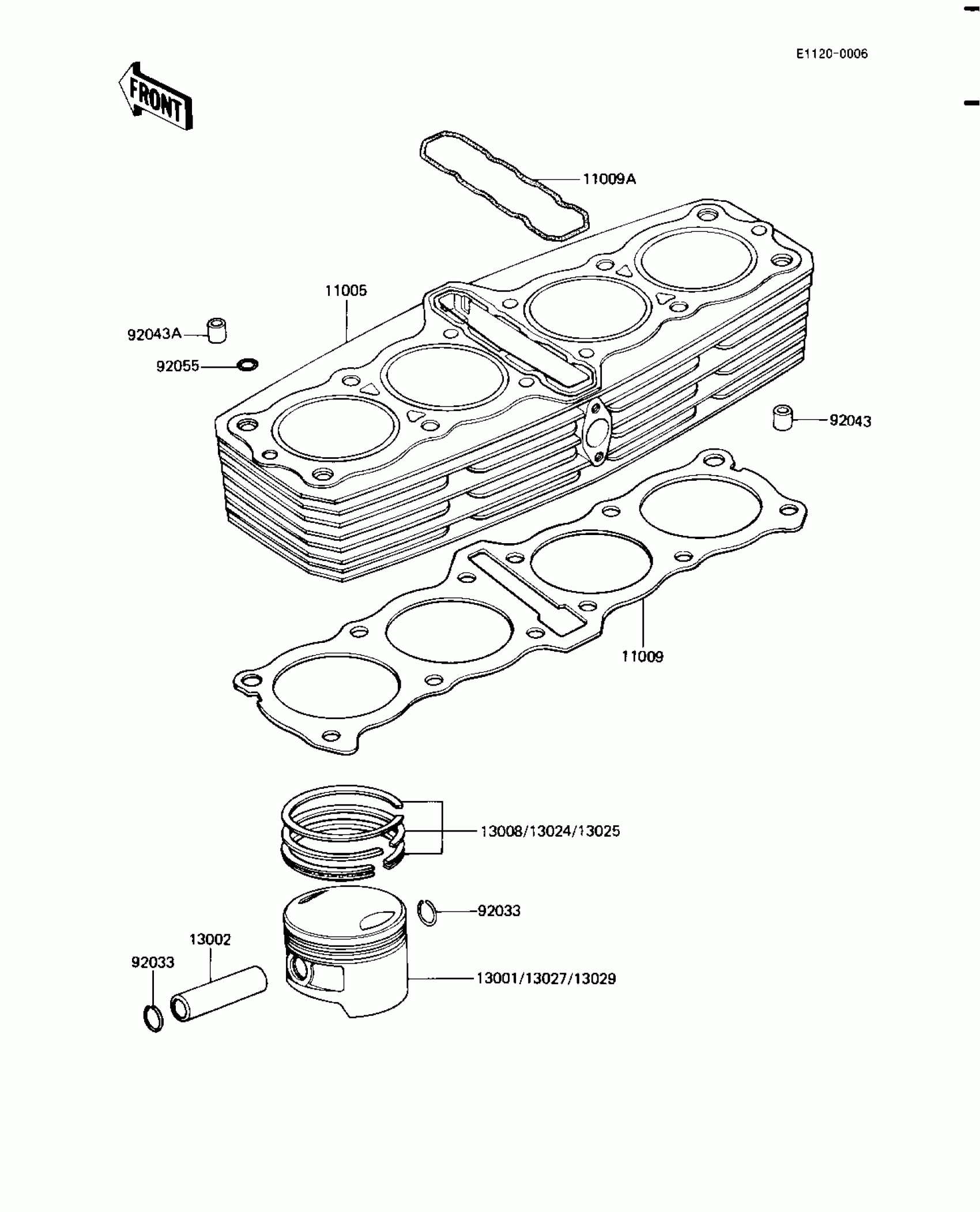

Kawasaki Shaft CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE,SILVE

11005-1321

Unavailable

11009

GASKET,CYLINDER BASE

11060-1067

Unavailable

11009A

GASKET,CYLINDER

11009-1208

$82.08

13001

PISTON-ENGINE,STD

13001-1118

Unavailable

13002

PIN-PISTON

13002-1013

$6.66

13008

RING-SET-PISTON,STD

13008-5037

$117.89

13024

RING-SET PISTON LL

13024-5023

Unavailable

13025

RING-SET PISTON L,O/S

13025-5019

$129.36

13027

PISTON-ENGINE LL,0/S

13027-1055

Unavailable

13029

PISTON-ENGINE L,0/S

13029-1057

Unavailable

92033

RING-SNAP

92033-1054

$2.47

92043

PIN,11X14X12.3

92043-1266

$1.08

92043A

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,OD=18.5

92055-1148

$14.23
