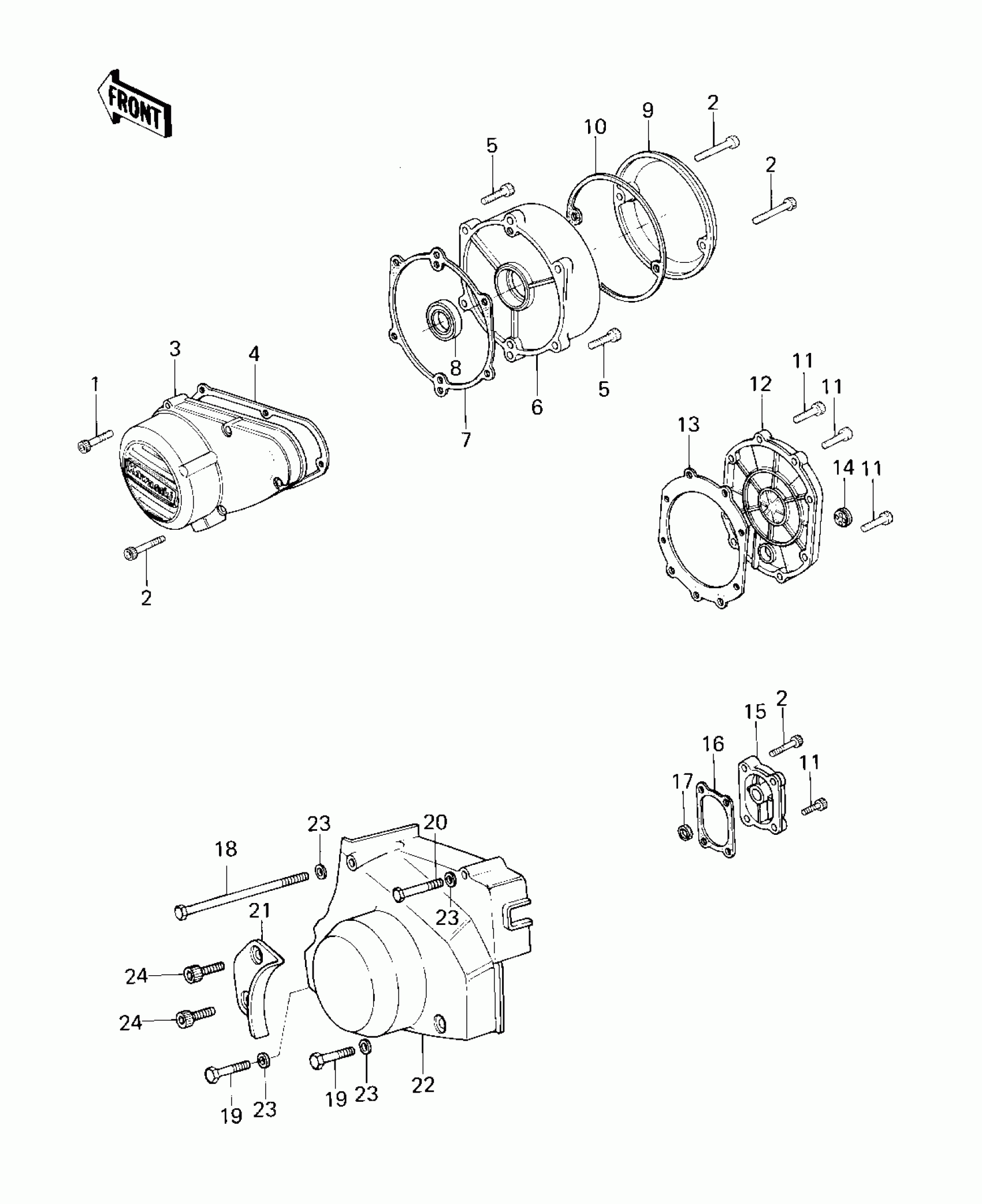

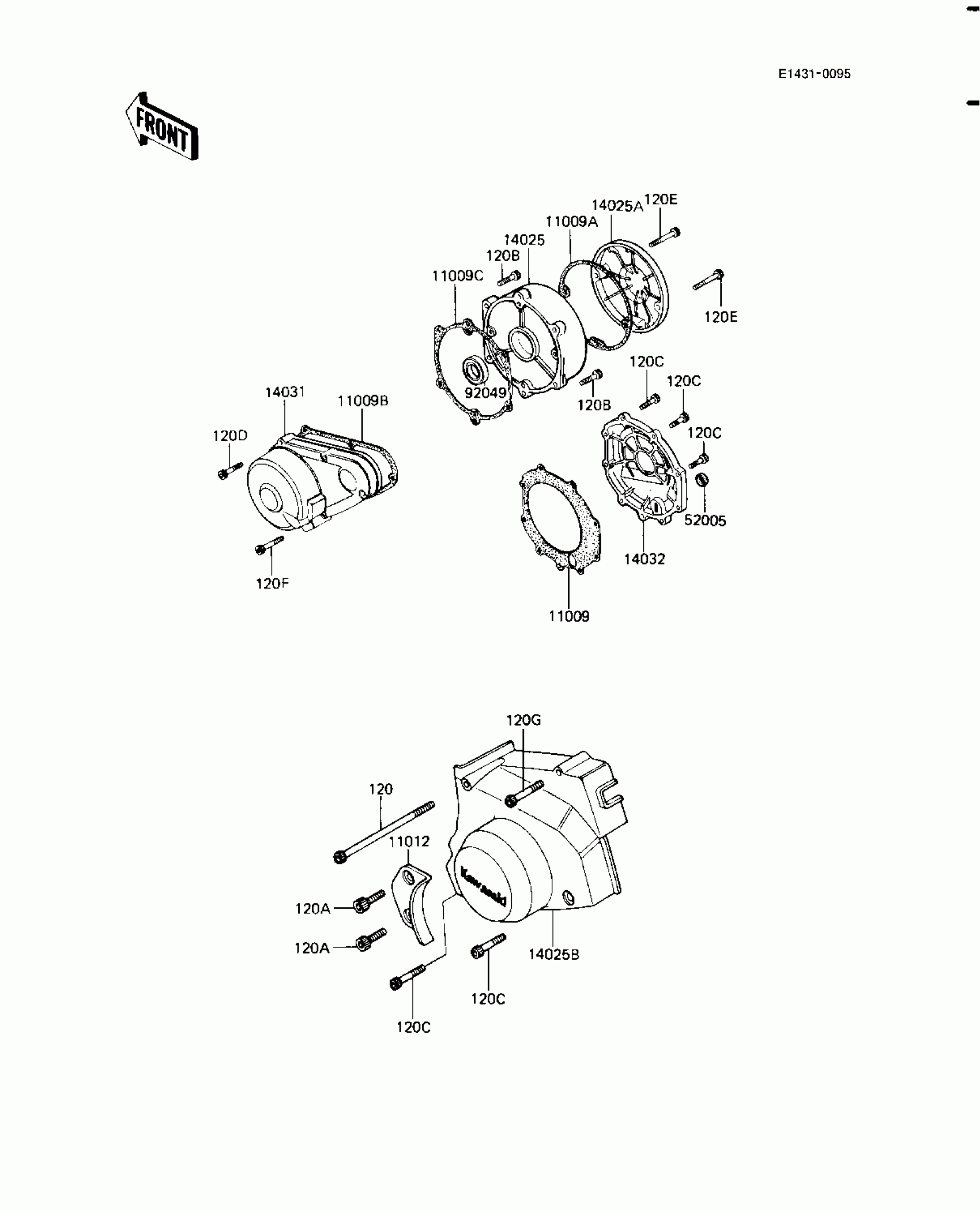

Kawasaki Shaft ENGINE COVERS Diagram

#

Description
Price

1

BOLT-SOCKET,6X30

120P0630

Unavailable

2

BOLT,SOCKET,6X40

120P0640

Unavailable

3

COVER,GENERATOR

14031-1015

Unavailable

4

GASKET,GENERATOR COVER

11060-1075

Unavailable

5

BOLT,SOCKET,6X22

120P0622

Unavailable

6

COVER,R.H ENGINE

14032-083

Unavailable

7

GASKET,RH ENGINE COVER

11060-1071

Unavailable

8

OIL SEAL,S25407R

92050-047

$35.10

9

COVER,CENTACK BREAKE

14025-1037

Unavailable

10

GASKET,POINT CAP

14050-006

$25.15

11

BOLT-SOCKET,6X25

120P0625

Unavailable

12

COVER,CLUTCH

14032-1006

Unavailable

13

GASKET,CLUTCH

14046-024

$47.40

14

GAUGE,OIL LEVEL

52015-004

$46.53

15

COVER,KICKSTARTER,

14032-075-21

Unavailable

16

GASKET,KICK COVER

14046-025

$10.54

17

SEAL-OIL,SC22325

92049-1048

$6.75

18

BOLT-UPSET,6X125

112G06125

Unavailable

19

BOLT-UPSET

112G0625

Unavailable

20

BOLT-UPSET

112G0645

Unavailable

21

CAP,CLUTCH RELEASE AJ

11012-1064

Unavailable

22

COVER,GEAR CASE

14025-1092

Unavailable

23

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

24

BOLT-SOCKET,6X14

120P0614

Unavailable
