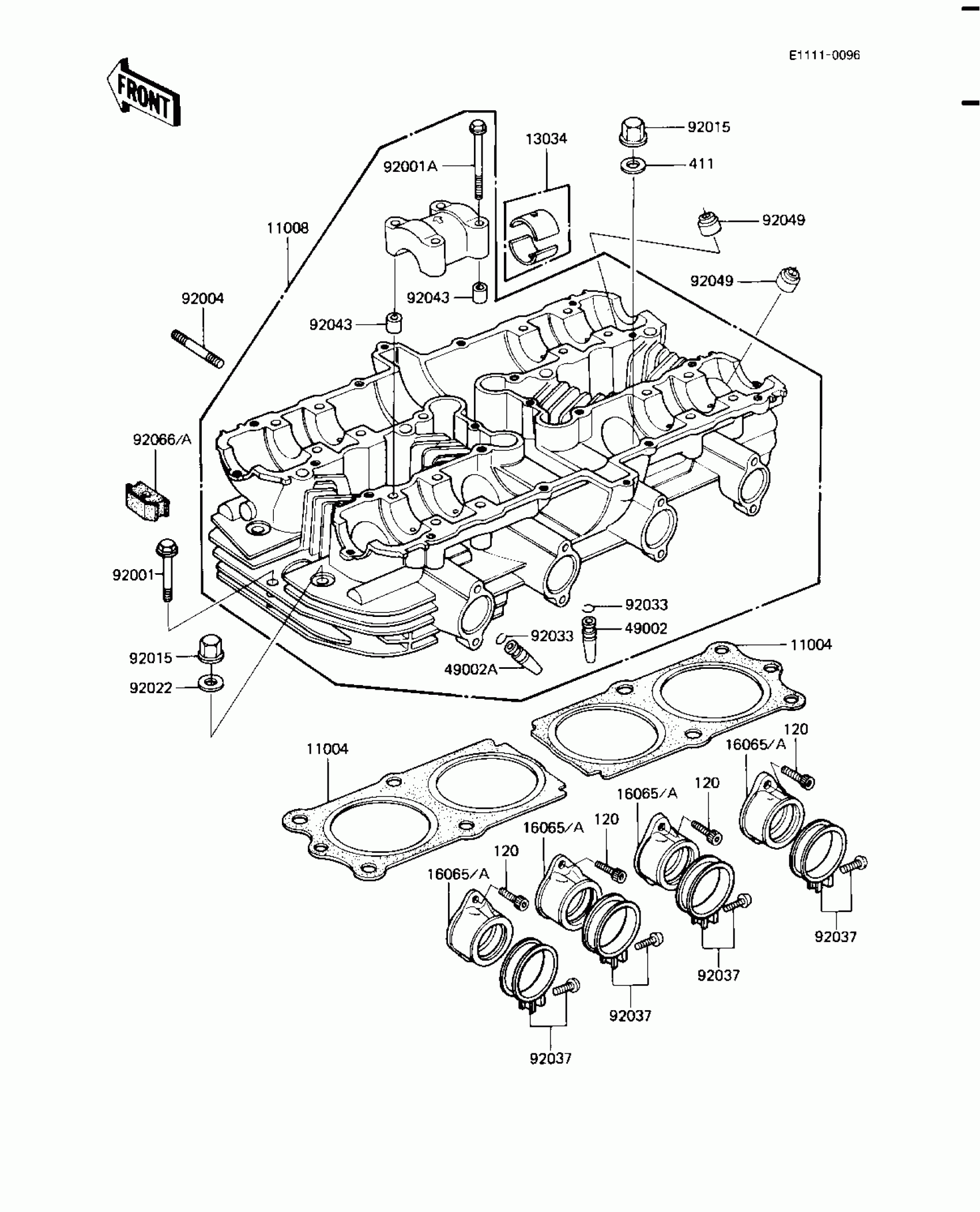

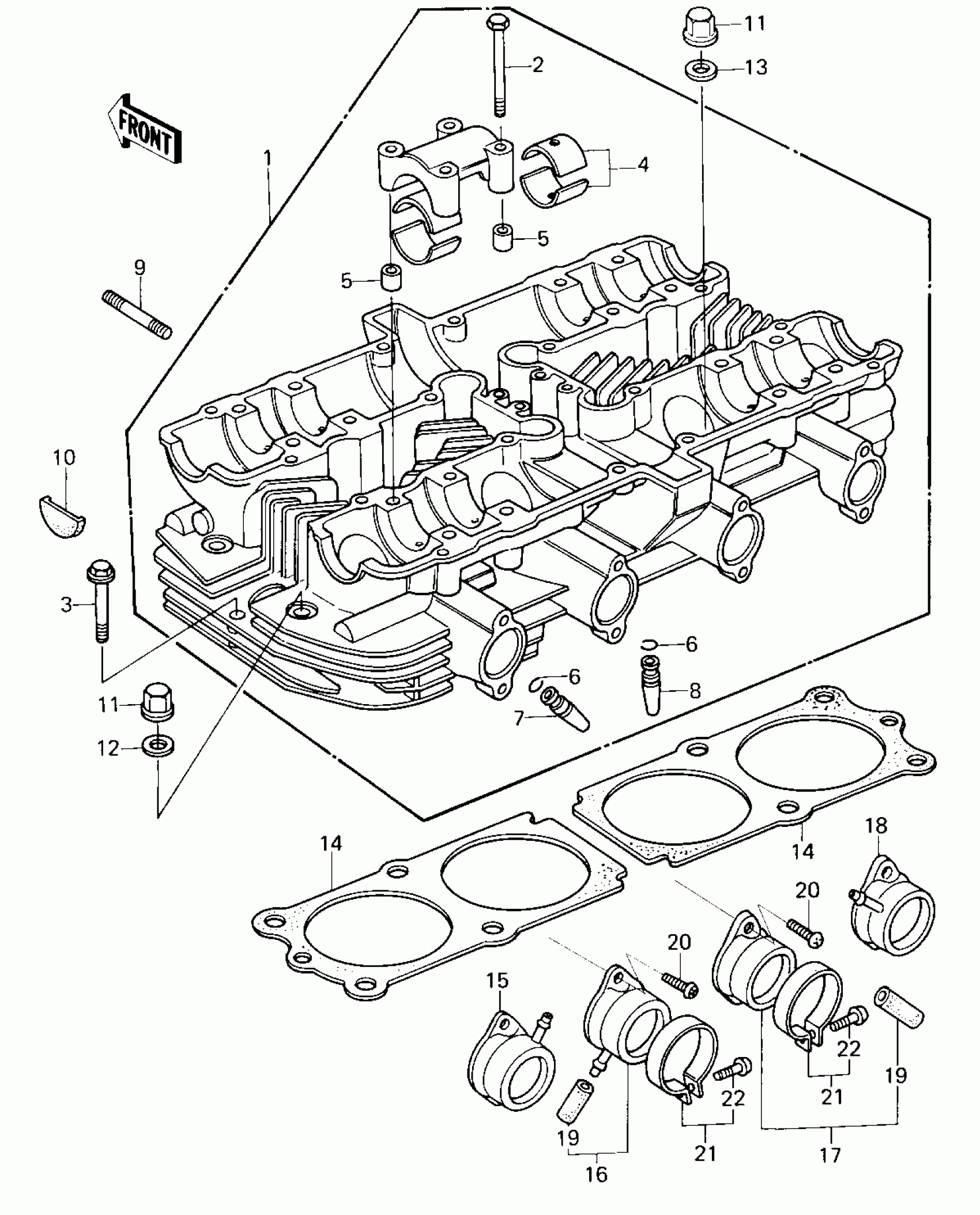

Kawasaki Shaft CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD (FLAT (Canada)

11002-1021

Unavailable

2

BOLT,6X43

92002-1881

$7.24

3

BOLT,FLANGED,6X45

92003-092

$7.58

4

BUSHING,CAMSHAFT

13034-030

$22.16

5

PIN,DOWEL,6.3X8X14

92042-007

$5.70

6

RING-SNAP,VALVE GUIDE

92036-023

$0.48

7

GUIDE-VALVE,INTAKE

12013-009

$27.29

8

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

9

STUD,8X30

92004-1069

$7.51

10

PLUG,CAM SHAFT

92066-017

Unavailable

11

NUT,FLANGED CAP,10MM

92015-076

$13.08

12

WASHER,PLAIN,10MM

92022-215

$9.64

13

WASHER-PLAIN,10MM

411B1000

$0.93

14

GASKET,CYLINDER HEAD

11004-076

Unavailable

16

HOLDER,CARBURETOR,L.

16065-029

$100.50

17

HOLDER-R.H CARBRETOR

16065-028

$100.50

19

PLUG,12X25

92068-006

$4.26

20

SCREW PAN HEAD 6X18

220B0618

$3.67

21

CLAMP,HOLDER

92037-077

$12.00

22

SCREW,PAN HEAD

92011-037

Unavailable
