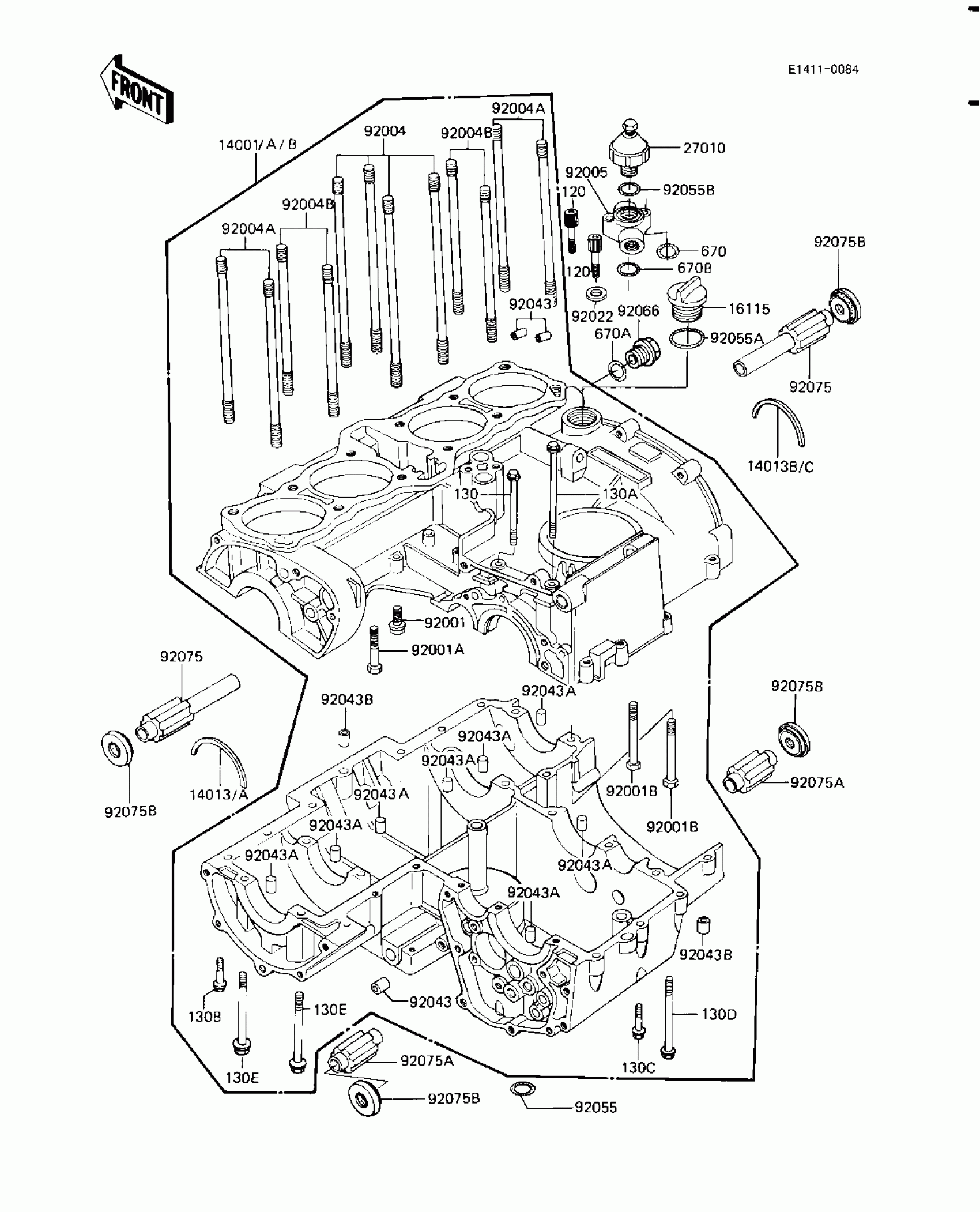

Kawasaki Shaft CRANKCASE Diagram

#

Description
Price

14001A

SET-CRANKCASE,SILVER

14001-5099

$2,228.51

14013

RING-POSITION,T=1.90

14013-013

$12.39

14013A

RING-POSITION,T=1.98

14013-1004

$4.96

14013B

RING-POSITION,T=1.98

14013-1005

$4.96

14013C

RING-POSITION

14013-1006

Unavailable

16115

CAP-OIL FILLER

16115-013

$19.96

27010

SWITCH,OIL PRESSURE

27010-1013

$39.96

92001

BOLT,FLANGED,8X16

92001-1349

$5.72

92001A

BOLT,HEX HEAD,8X72

92003-107

Unavailable

92001B

BOLT,HEX HEAD,8X81

92003-108

$6.69

92004

STUD,10X167

92004-1002

$15.20

92004A

STUD,10X158

92004-1003

$15.20

92004B

STUD,10X133

92004-1004

$15.96

92005

FITTING,OIL PRESSURE SWITCH

92005-1030

$68.90

92022

WASHER,8.2X16X1

92022-1086

$3.92

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043A

PIN,DOWEL,6X16

92042-016

$5.00

92043B

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,OD=18

92055-048

$4.80

92055A

RING-O,31.5X2.6

92055-049

$4.31

92055B

RING-O,19.5X1.5

92055-055

$4.31

92066

PLUG,14X12

92066-021

$22.10

92075

DAMPER,ENGINE MOUNT,UPP

92075-1272

$44.98

92075A

DAMPER,ENGINE MOUNT,LWR

92075-1273

$28.97

92075B

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$17.60

120

BOLT-SOCKET,8X35

120P0835

$2.62

130

BOLT-FLANGED,6X100

130G06100

Unavailable

130A

BOLT-FLANGED,6X115

130G06115

$3.58

130B

BOLT-FLANGED,6X40

130G0640

$1.17

130C

BOLT-FLANGED,6X55

130G0655

$4.65

130D

BOLT-FLANGED,6X95

130G0695

$5.21

130E

BOLT-FLANGED,8X95

130P0895

$10.59

670

O RING,9MM

670B1509

$3.65

670A

O RING,15MM

670B2015

$1.42

670B

O RING,18MM

670B2018

$1.42
