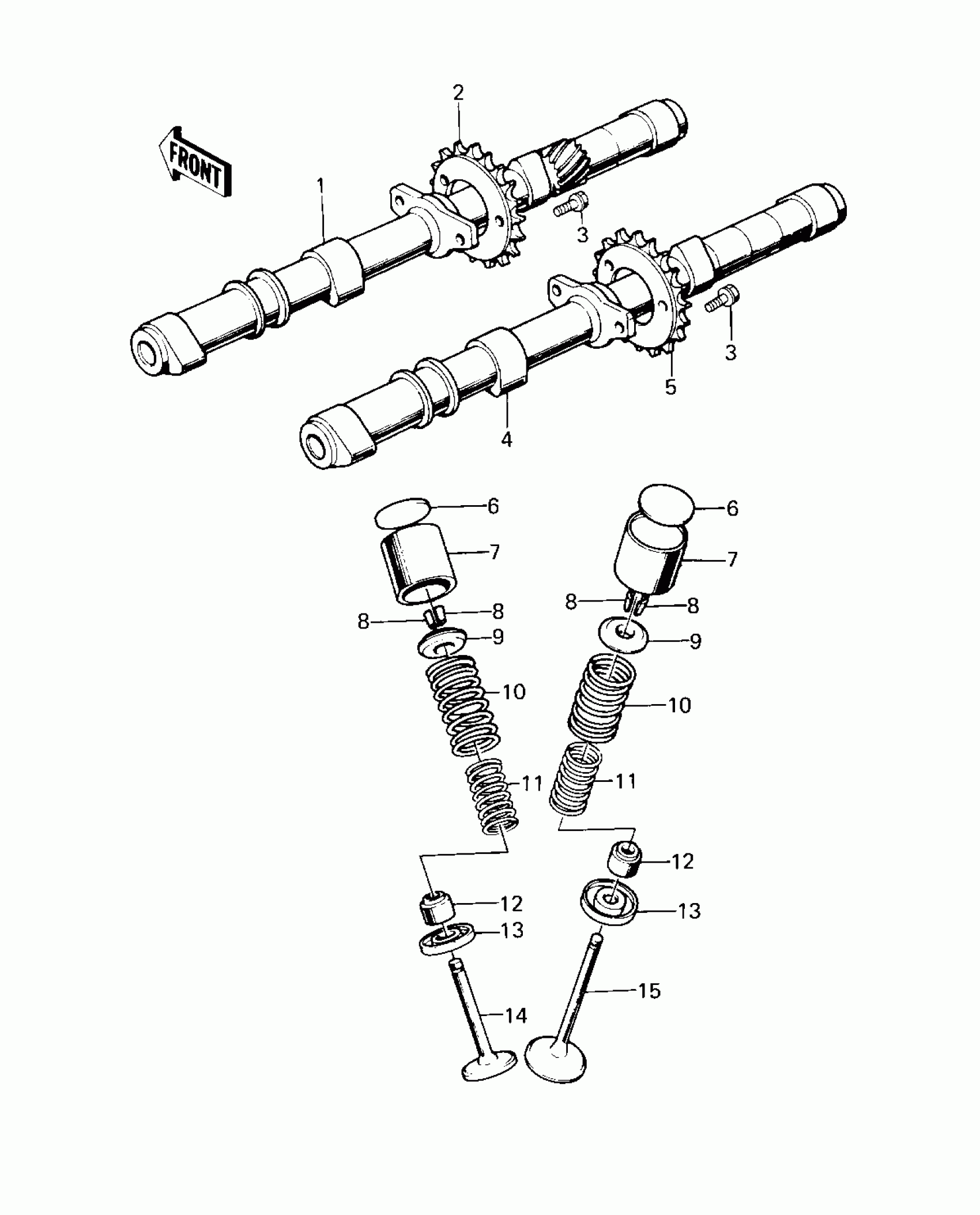

Kawasaki Shaft CAMSHAFTS/VALVES Diagram

#

Description
Price

1

CAMSHAFT,EXHAUST

12044-015

Unavailable

2

SPROCKET,EXH CAM SHF

12046-1018

Unavailable

3

BOLT,FLANGED,6X11

92003-208

$4.31

4

CAMSHAFT,INLET

12044-014

Unavailable

5

SPROCKET,INLET CAM S

12046-1017

Unavailable

6

SHIM,T=2.00

12037-001

$19.28

6

SHIM,T=2.05

12037-002

$19.28

6

SHIM,T=2.10

12037-003

$19.28

6

SHIM,T=2.15

12037-004

$19.28

6

SHIM,T=2.20

12037-005

$19.28

6

SHIM,T=2.25

12037-006

$19.28

6

SHIM,T=2.30

12037-007

Unavailable

6

SHIM,T=2.35

12037-008

$19.28

6

SHIM,T=2.40

12037-009

$19.28

6

SHIM,T=2.45

12037-010

$19.28

6

SHIM,T=2.50

12037-011

$19.28

6

SHIM,T=2.55

12037-012

$19.28

6

SHIM,T=2.60

12037-013

$19.28

6

SHIM,T=2.65

12037-014

$19.28

6

SHIM,T=2.70

12037-015

$19.28

6

SHIM,T=2.75

12037-016

$19.28

6

SHIM,T=2.80

12037-017

$19.28

6

SHIM,T=2.85

12037-018

$19.28

6

SHIM,T=2.90

12037-019

$19.28

6

SHIM,T=2.95

12037-020

$19.28

6

SHIM,T=3.00

12037-021

$19.28

6

SHIM,T=3.05

12037-022

$19.28

6

SHIM,T=3.10

12037-023

$19.28

6

SHIM,T=3.15

12037-024

$19.28

6

SHIM,T=3.20

12037-025

$19.28

7

TAPPET

12032-005

Unavailable

8

COLLET,RETAINER

12011-004

$5.46

9

RETAINER-VALVE SPRING

12009-005

$13.08

10

SPRING-ENGINE VALVE,OUTER

12007-012

$25.90

11

SPRING-ENGINE VALVE,INNER

12007-011

Unavailable

12

SEAL-OIL,RV37129.5

92049-016

$18.35

13

SEAT-SPRING,VALVE

16007-1024

$6.51

14

VALVE,EXHAUST

12005-1009

$160.29

15

VALVE,INTAKE

12004-1010

$110.39
