1983 Kawasaki Shaft Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1983 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

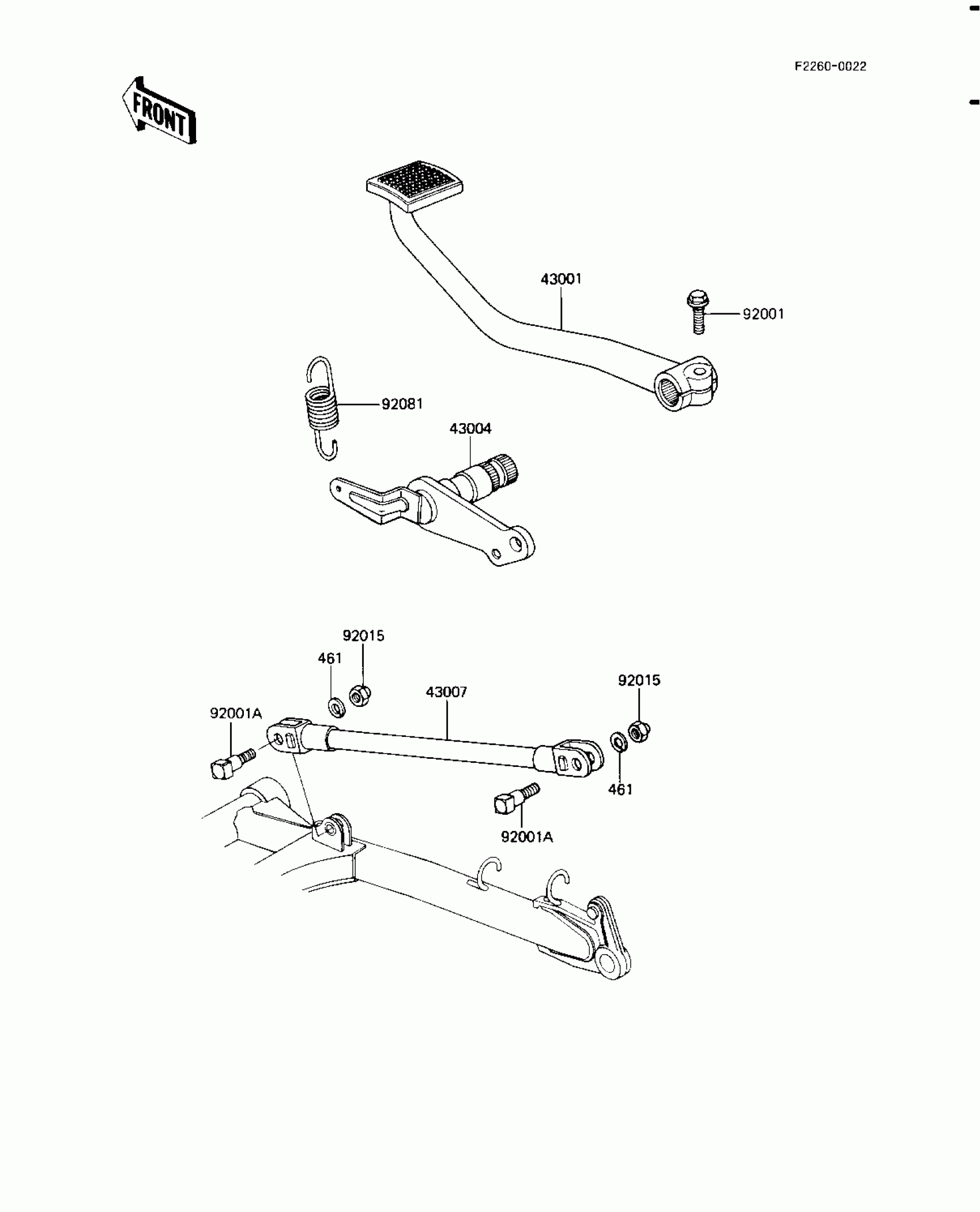

1983 Kawasaki Shaft Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-1057

1
Out of stock

43004

SHAFT-BRAKE

43004-1022

1
Out of stock

43007

ROD-TORQUE

43007-1021

1
Out of stock

92001

BOLT-FLANGED,8X25

130G0825

1
Out of stock

92001A

BOLT,10X37

92001-1307

1
Out of stock

92015

NUT,10MM

92015-1429

1
Out of stock

92081

SPRING,BRAKE PEDAL

92081-1313

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock
